Uplink Physical Signals

5G NR demodulation and phase tracking reference signals (DM-RS and PT-RS) for PUSCH and sounding reference signal (SRS)

The base station uses the DM-RS and the SRS to aid channel estimation and to support measurements. For phase noise compensation, the base station uses the PUSCH PT-RS.


expand all

nrPUSCHDMRSGenerate PUSCH DM-RS symbols
nrPUSCHDMRSIndicesGenerate PUSCH DM-RS indices
nrPUSCHDMRSConfigPUSCH DM-RS configuration parameters
nrPUSCHPTRSGenerate PUSCH PT-RS symbols
nrPUSCHPTRSIndicesGenerate PUSCH PT-RS Indices
nrPUSCHPTRSConfigPUSCH PT-RS configuration parameters

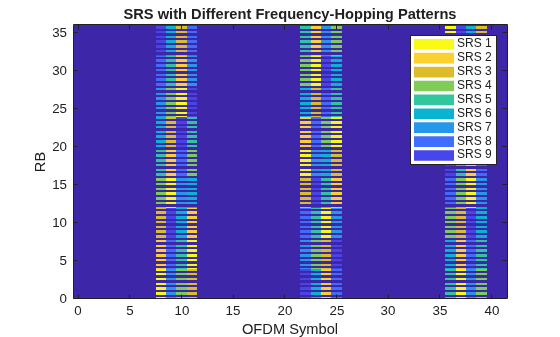

nrSRSGenerate uplink SRS symbols
nrSRSIndicesGenerate uplink SRS resource element indices
nrSRSConfigSRS configuration parameters
