Controlled Volume Velocity Source

R2026b

Ideal volume velocity source driven by input signal

Since R2026b

•

Controlled Volume Velocity Source block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Simscape Acoustics / Acoustic Sources

Description

Add-On Required: This feature requires the Simscape Acoustics add-on.

The Controlled Volume Velocity Source block represents an ideal volume velocity source that is powerful enough to maintain the specified volume velocity through it regardless of the pressure across the source.

The output volume velocity is U=uT, where uT is the numerical value presented at the physical signal port.

The arrow indicates the positive direction of the volume velocity flow.

Examples

New

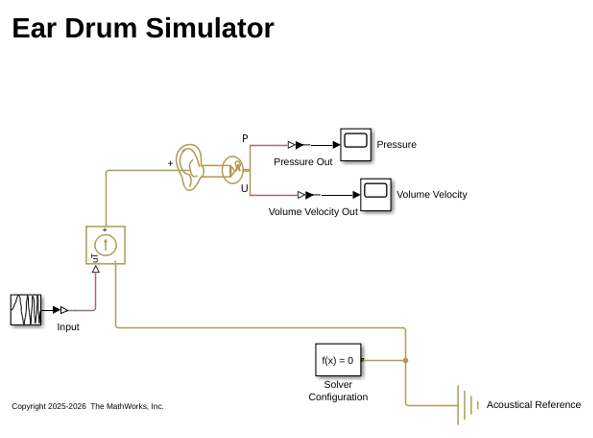

Simulate Ear Drum

Simulate the acoustic response of an ear drum using Simscape™ Acoustics.

• Since R2026b
• Open Script

Ports

Input

uT — Volume velocity control signal, m³/s

physical signal

Input physical signal that specifies the volume velocity value.

Conserving

+ — Positive terminal

acoustic

Acoustic conserving port associated with the positive terminal.

- — Negative terminal

acoustic

Acoustic conserving port associated with the negative terminal.

Version History

Introduced in R2026b
