Suppress Loud Sounds
Use the Compressor block to suppress loud sounds and visualize the applied compression gain.
1. Open the Time Scope and Compressor blocks.

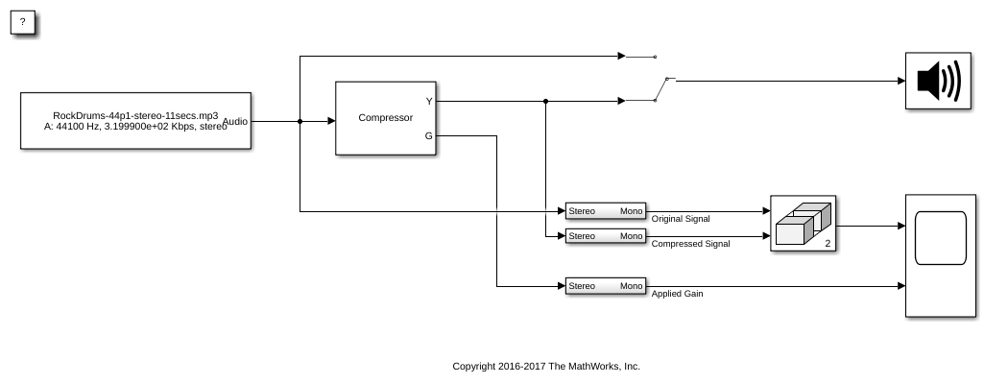

2. Run the model. To switch between listening to the compressed signal and the original signal, double-click the Manual Switch (Simulink) block.

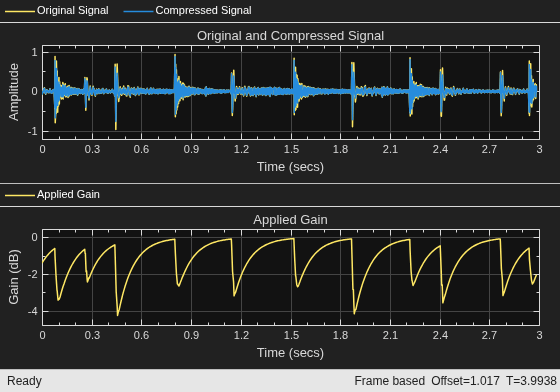

3. Observe how the applied gain depends on compression parameters and input signal dynamics by tuning the Compressor block parameters and viewing the results on the Time Scope.
