Perform Parametric Equalization

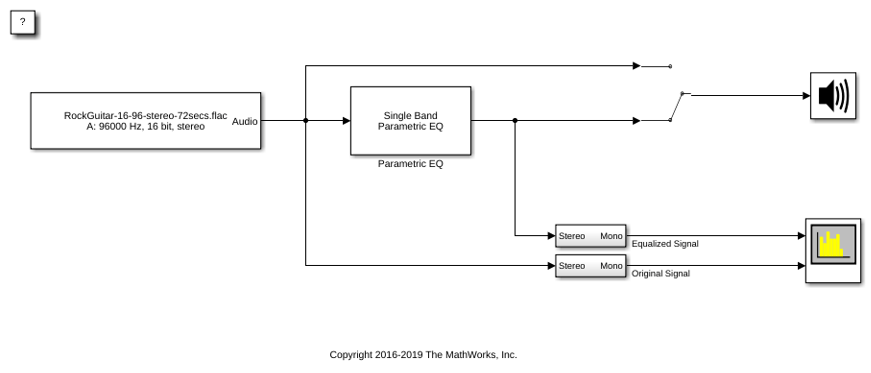

Examine the Single-Band Parametric EQ block in a Simulink® model and tune parameters.

1. Open the Spectrum Analyzer and Parametric EQ blocks.

2. In the Single-Band Parametric EQ block, click View Filter Response. Modify parameters of the parametric equalizer and see the magnitude response plot update automatically.

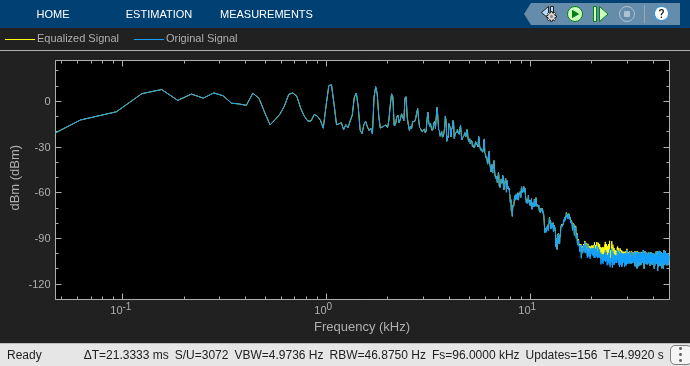

3. Run the model. Tune parameters on the Single-Band Parametric EQ to listen to the effect on your audio device and see the effect on the Spectrum Analyzer display. Double-click the Manual Switch (Simulink) block to toggle between the original and equalized signal as output.
