To understand and debug convolutional networks, running and visualizing data is a useful tool.This example shows how to deploy, run, and debug a convolution-only network by using FPGA deployment.
Xilinx Zynq ZCU102 Evaluation Kit
Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC
Deep Learning Toolbox™
Deep Learning HDL Toolbox™
Deep Learning Toolbox™ Model for Resnet-50 Network
ResNet-50 is a convolutional neural network that is 50 layers deep. This pretrained network can classify images into 1000 object categories (such as keyboard, mouse, pencil, and more).The network has learned rich feature representations for a wide range of images. The network has an image input size of 224-by-224.
Load the ResNet-50 network.
rnet = resnet50;
To visualize the structure of the Resnet-50 network, at the MATLAB command prompt, enter:
To examine the outputs of the
max_pooling2d_1 layer, create this network which is a subset of the ResNet-50 network:
layers = rnet.Layers(1:5); outLayer = regressionLayer('Name','output'); layers(end+1) = outLayer; snet = assembleNetwork(layers);
Create a target object with a custom name and an interface to connect your target device to the host computer. Interface options are JTAG and Ethernet. To use JTAG, install Xilinx™ Vivado™ Design Suite 2019.2. To set the Xilinx Vivado toolpath, enter:
%hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'D:/share/apps/HDLTools/Vivado/2019.2-mw-0/Win/Vivado/2019.2\bin\vivado.bat');
hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');
Create an object of the
dlhdl.Workflow class. When you create the object, specify the network and the bitstream name. Specify the saved pretrained ResNet-50 subset network,
snet, as the network. Make sure that the bitstream name matches the data type and the FPGA board that you are targeting. In this example the target FPGA board is the Xilinx ZCU102 SOC board. The bitstream uses a single data type.
hW = dlhdl.Workflow('network', snet, 'Bitstream', 'zcu102_single','Target',hTarget);
To compile the modified ResNet-50 series network, run the compile function of the
dn = hW.compile
### Optimizing series network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer' offset_name offset_address allocated_space _______________________ ______________ ________________ "InputDataOffset" "0x00000000" "24.0 MB" "OutputResultOffset" "0x01800000" "24.0 MB" "SystemBufferOffset" "0x03000000" "28.0 MB" "InstructionDataOffset" "0x04c00000" "4.0 MB" "ConvWeightDataOffset" "0x05000000" "4.0 MB" "EndOffset" "0x05400000" "Total: 84.0 MB"
dn = struct with fields: Operators: [1×1 struct] LayerConfigs: [1×1 struct] NetConfigs: [1×1 struct]
To deploy the network on the Xilinx ZCU102 hardware, run the deploy function of the
dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. It also downloads the network weights and biases. The deploy function programs the FPGA device, displays progress messages, and the time it takes to deploy the network.
### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA. ### Deep learning network programming has been skipped as the same network is already loaded on the target FPGA.
Load and display an image to use as an input image to the series network.
I = imread('daisy.jpg'); imshow(I)
Execute the predict function of the
[P, speed] = hW.predict(single(I),'Profile','on');
### Finished writing input activations. ### Running single input activations.
Deep Learning Processor Profiler Performance Results LastLayerLatency(cycles) LastLayerLatency(seconds) FramesNum Total Latency Frames/s ------------- ------------- --------- --------- --------- Network 2813005 0.01279 1 2813015 78.2 conv_module 2813005 0.01279 conv1 2224168 0.01011 max_pooling2d_1 588864 0.00268 * The clock frequency of the DL processor is: 220MHz
The result data is returned as a 3-D array, with the third dimension indexing across the 64 feature images.
sz = size(P)
sz = 1×3 56 56 64
To visualize all 64 features in a single image, the data is reshaped into 4 dimensions, which is appropriate input to the
R = reshape(P, [sz(1) sz(2) 1 sz(3)]); sz = size(R)
sz = 1×4 56 56 1 64
The input to
imtile is normalized using
mat2gray. All values are scaled so that the minimum activation is 0 and the maximum activation is 1.

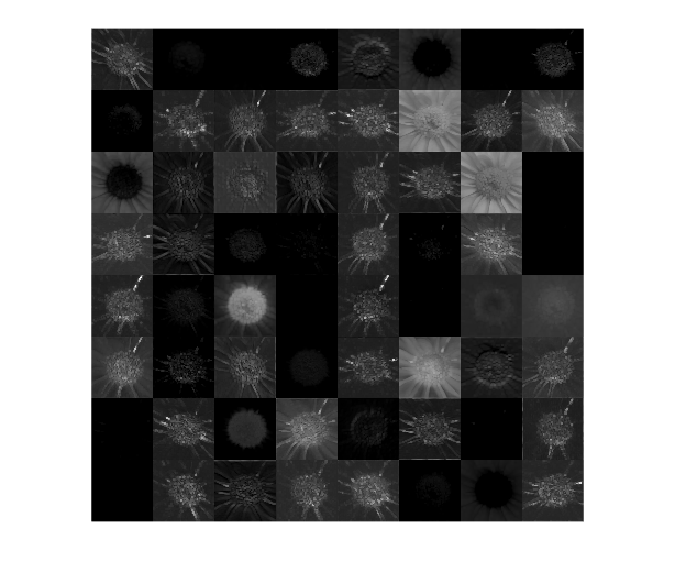

J = imtile(mat2gray(R), 'GridSize', [8 8]);
To show these activations by using the
imtile function, reshape the array to 4-D. The third dimension in the input to
imtile represents the image color. Set the third dimension to size 1 because the activations do not have color. The fourth dimension indexes the channel. A gride size of 8x8 is selected because there are 64 features to display.
Bright features indicate a strong activation. To understand and debug convolutional networks, running and visualizing data is a useful tool.
