This example shows how to perform track-to-track fusion in Simulink® with Sensor Fusion and Tracking Toolbox™. In the context of autonomous driving, the example illustrates how to build a decentralized tracking architecture using a track fuser block. In the example, each vehicle perform tracking independently as well as fuse tracking information received from other vehicles. This example closely follows the Track-to-Track Fusion for Automotive Safety Applications MATLAB® example.
Automotive safety applications largely rely on the situational awareness of the vehicle. A better situational awareness provides the basis to a successful decision-making for different situations. To achieve this, vehicles can benefit from intervehicle data fusion. This example illustrates the workflow in Simulink for fusing data from two vehicles to enhance situational awareness of the vehicle.
Prior to running this example, the
drivingScenario object was used to create the same scenario defined in Track-to-Track Fusion for Automotive Safety Applications. The detections and time data of objects detected from the sensors of
Vehicle2 in the scenario were then saved to the data files
v2Data.mat, respectively. Also, the pose information of vehicles were saved in files
In Tracking and Fusion section of the model there are two subsystems which implements the target tracking and fusion capabilities of
Vehicle2 in this scenario.

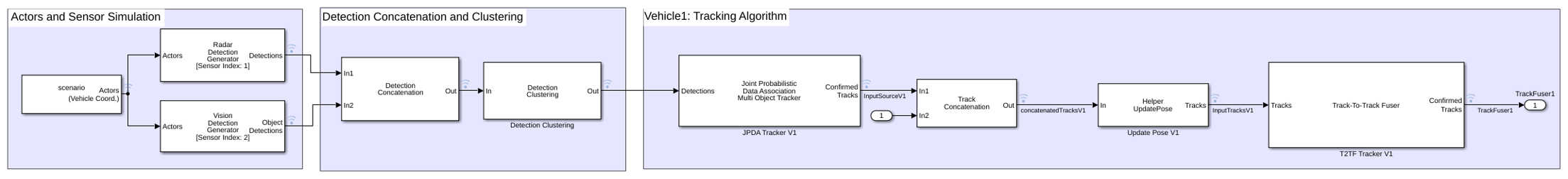

This subsystem includes
Vehicle1 DataLog Reader block that reads the prerecorded detection and time data form
v1Data.mat file for
Vehicle1. This data is then passed to the
JPDA Tracker V1 block which processes the detections to generate a list of tracks. The tracks are then passed into a
Track Concatenation1 block, which concatenates these input tracks. The first input to the
Track Concatenation1 block is the local tracks from the JPDA tracker and the second input is the tracks received from the other vehicle's track fuser. To transform local tracks to central tracks, the track fuser needs the parameter information about the local tracks. However, this information is not available from the direct outputs of the JPDA tracker. Therefore, a helper Update Pose block is used to supply these information by reading the data from the v1Pose.mat file. The updated tracks are then broadcasted to
T2TF Tracker V1 block as an input. Finally, the
T2TF Tracker V1 block fuses the local vehicle tracks with the tracks received from the other vehicle's track fuser. After each update, the track fuser on each vehicle broadcasts its fused tracks to be fed into the update of the other vehicle's track fuser in the next time stamp.

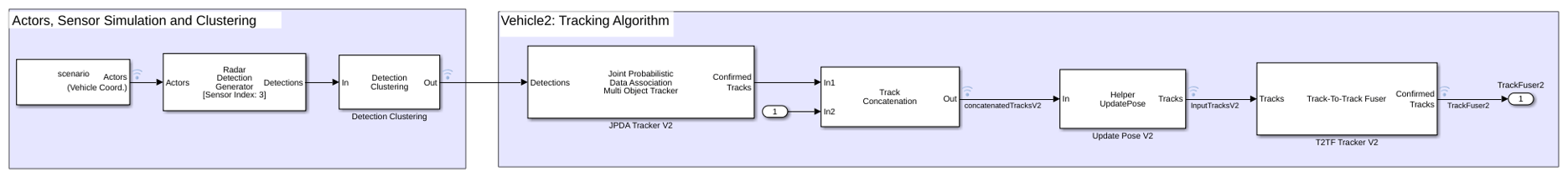

Vehicle2 subsystem follows similar setup as
Vehicle1 subsystem as described above.
The Visualization block is implemented using the MATLAB System block and is defined using
HelperTrackDisplay block. The block uses
RunTimeObject parameter of the blocks to display their outputs. See Access Block Data During Simulation (Simulink) for further information on how to access block outputs during simulation.

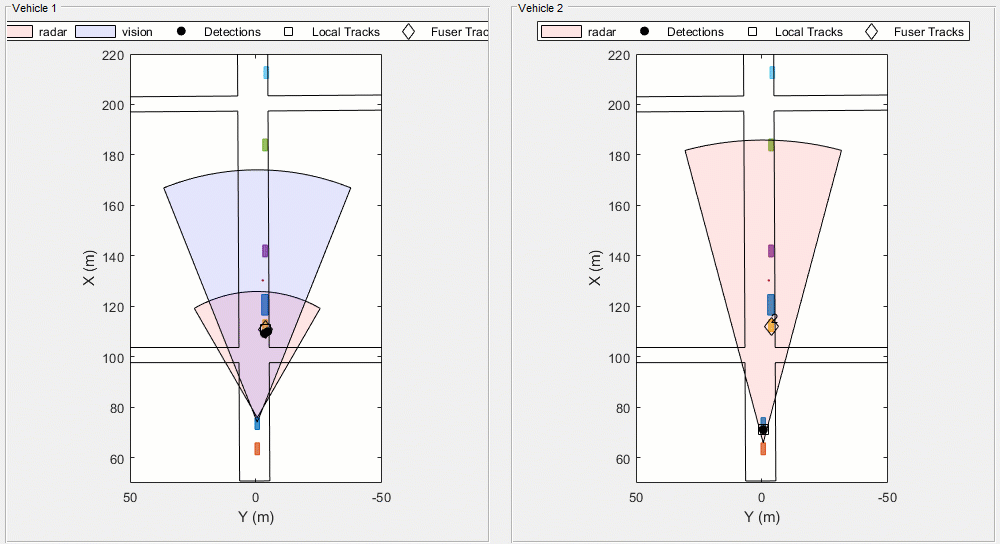

After running the model, you visualize the results as on the figure. The animation below shows the results for this simulation.
The visualization includes two panels. The left panel shows the detections, local tracks, and fused tracks that
Vehicle1 generated during the simulation and represents the situational awareness of the
Vehicle1. The right panel shows the situational awareness of
The recorded detections are represented by black circles. The local and fused tracks from
Vehicle2 are represented by square and diamond respectively. Notice that during the start of simulation,
Vehicle1 detects vehicles parked on the right side of the street, and tracks associated with the parked vehicles are confirmed. Currently
Vehicle2 only detects
Vehicle1 which is immediately in front of it. As the simulation continues the confirmed tracks from
Vehicle1 are broadcasts to the fuser on
Vehicle2. After fusing the tracks,
vehicle2 becomes aware of the objects prior to detecting these objects on its own. Similarly,
Vehicle2 tracks are broadcasts to
Vehicle1 fuses these tracks and becomes aware of the objects prior to detecting them on its own.
In particular, you observe that the pedestrian standing between the blue and purple car on the right side of the street is detected and tracked by
Vehicle2 first becomes aware of the pedestrian by fusing the track from
Vehicle1 at around 2.5 seconds. It takes
Vehicle2 roughly 2 seconds before it starts detecting the pedestrian using its own sensor. The ability to track a pedestrian based on inputs from
Vehicle2 to extend its situational awareness and to mitigate the risk of accident.
This example showed how to perform track-to-track fusion in Simulink. You learned how to perform tracking using a decentralized tracking architecture, where each vehicle is responsible for maintaining its own local tracks, fuse tracks from other vehicles, and communicate the tracks to the other vehicle. You also used a JPDA tracker block to generate the local tracks.
