Linux Task

R2026b

Spawn task function as separate Linux thread

•

Linux Task block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
HDL Coder Support Package for Intel FPGA and SoC Devices

Description

Add-On Required: This feature requires the HDL Coder Support Package for Intel FPGA and SoC Devices add-on.

Use this block to create a task function that spawns as a separate Linux^® thread. The task function runs the code of the downstream Function-Call Subsystem block.

Examples

Get Started With Code Generation Using HDL Coder Support Package for Intel FPGA and SoC Devices

Use HDL Coder® Support Package for Intel® FPGA and SoC Devices to run a Simulink® model on an Intel SoC device.

• Open Live Script

Ports

Output

Port_1 — Function-call control signal

scalar

A function-call control signal that triggers a Function-Call Subsystem block.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Task name — Name of task in generated code

Task0 (default) | character vector

Assign a name to this task. You can enter up to 32 letters and numbers. Do not use standard C reserved characters, such as the / and : characters.

Programmatic Use

Block Parameter: taskName

Thread scheduling policy — Thread scheduling policy used by Linux

SCHED_FIFO (default) | SCHED_OTHER

Select the scheduling policy that applies to this thread. You can choose from these options:

• SCHED_FIFO — This option enables a first-in, first-out (FIFO) scheduling algorithm that executes real-time processes without time slicing. With FIFO scheduling, a higher-priority process preempts a lower-priority process. The lower-priority process remains at the top of the queue for its priority and resumes execution when no higher-priority process is ready to run.

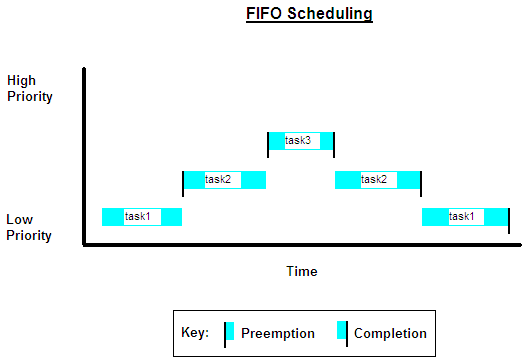

  For example, in the FIFO scheduling image, task2 preempts task1. Then, task3 preempts task2. When task3 completes, task2 resumes. When task2 completes, task1 resumes.



  Selecting SCHED_FIFO displays the Thread priority parameter, which you can set to a value from 1 to 99.

• SCHED_OTHER — This option enables the default Linux time-sharing scheduling algorithm. You can use this scheduling for processes that do not require static-priority real-time scheduling. With this algorithm, the scheduler selects processes based on their dynamic priority within the static-priority 0 queue. If a process is ready to run but is nor selected, the operating system increases the dynamic priority of that process. Such prioritization helps the scheduler serve the SCHED_OTHER processes.

  Selecting SCHED_OTHER hides the Thread priority parameter and sets the thread priority to 0.

Programmatic Use

Block Parameter: taskPolicy

Thread priority — Linux thread priority

1 (default) | 1 .. 99

Specify the priority of the Linux thread. A value of 1 indicates a low priority, and a value of 99 indicates a high priority. Higher-priority tasks can preempt lower-priority tasks.

To enable this parameter, set Thread scheduling policy to SCHED_FIFO.

Programmatic Use

Block Parameter: taskPriority

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"alterasoclib/Linux Task"

Example: add_block("alterasoclib/Linux Task","myModel/myBlock",MakeNameUnique="on")

Version History

Introduced in R2014b
