Tanks and Accumulators
R2026bChambers with variable fluid volumes
Use these blocks to model storage systems in the isothermal liquid domain.
Simscape Blocks
 | Tank (IL) | Tank in an isothermal liquid system |
 | Tank (G-IL) | Pressurized tank with variable gas and isothermal liquid volumes (Since R2023b) |
 | Gas-Charged Accumulator (IL) | Gas-charged accumulator in an isothermal liquid network |
 | Spring-Loaded Accumulator (IL) | Accumulator with a spring used for energy storage in an isothermal liquid system |
Featured Examples
Closed-Circuit Hydraulic Actuator
A closed-circuit hydraulic actuator driven by a variable-speed pump. The actuator is arranged as a closed fluid system with two replenishment valves (check valves) and a spring-loaded accumulator serving as a replenishment reservoir. The pump speed is controlled by the difference between the commanded and measured piston position. The actuator acts against a spring, a damper, and a time-varying load.
Diesel Engine In-Line Injection System

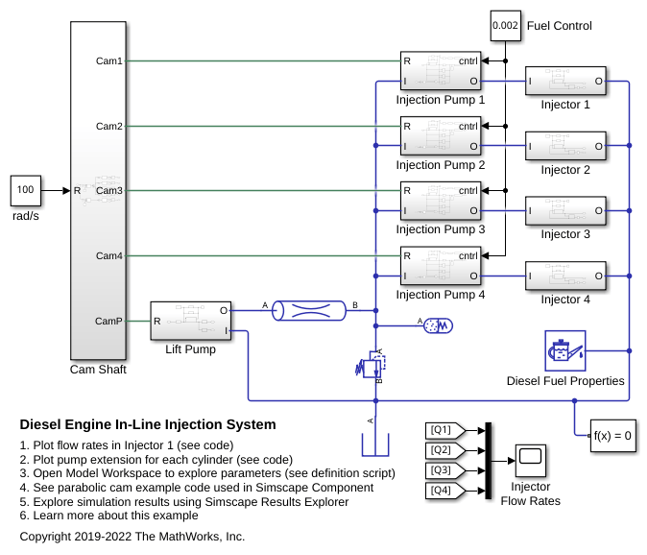

An in-line multi-element diesel injection system. It consists of a cam shaft, a lift pump, four in-line injection pumps, and four injectors.
