Classify Hyperspectral Images Using Deep Learning
This example shows how to classify hyperspectral images using a custom spectral convolution neural network (CSCNN) for classification.
This example requires the Image Processing Toolbox™ Hyperspectral Imaging Library. You can install the Image Processing Toolbox Hyperspectral Imaging Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons. The Image Processing Toolbox Hyperspectral Imaging Library requires desktop MATLAB®, as MATLAB® Online™ and MATLAB® Mobile™ do not support the library.
Hyperspectral imaging measures the spatial and spectral features of an object at different wavelengths ranging from ultraviolet through long infrared, including the visible spectrum. Unlike color imaging, which uses only three types of sensors sensitive to the red, green, and blue portions of the visible spectrum, hyperspectral images can include dozens or hundreds of channels. Therefore, hyperspectral images can enable the differentiation of objects that appear identical in an RGB image.

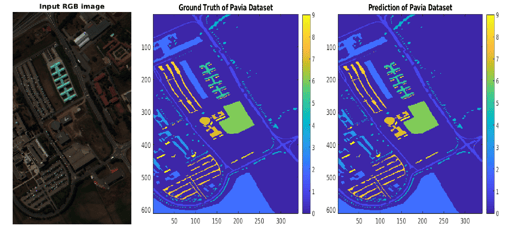

This example uses a CSCNN that learns to classify 16 types of vegetation and terrain based on the unique spectral signatures of each material. The example shows how to train a CSCNN and also provides a pretrained network that you can use to perform classification.
Load Hyperspectral Data Set
This example uses the Indian Pines data set, included with the Image Processing Toolbox™ Hyperspectral Imaging Library. The data set consists of a single hyperspectral image of size 145-by-145 pixels with 220 color channels. The data set also contains a ground truth label image with 16 classes, such as Alfalfa, Corn, Grass-pasture, Grass-trees, and Stone-Steel-Towers.
Read the hyperspectral image using the
hcube = hypercube("indian_pines.dat");

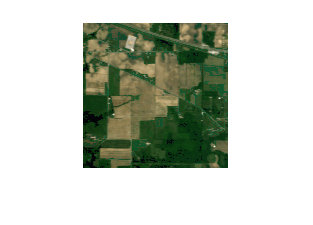

Visualize a false-color version of the image using the
rgbImg = colorize(hcube,method="rgb"); imshow(rgbImg)
Load the ground truth labels and specify the number of classes.
gtLabel = load("indian_pines_gt.mat"); gtLabel = gtLabel.indian_pines_gt; numClasses = 16;
Preprocess Training Data
Reduce the number of spectral bands to 30 using the
hyperpca function. This function performs principal component analysis (PCA) and selects the spectral bands with the most unique signatures.
dimReduction = 30; imageData = hyperpca(hcube,dimReduction);
Normalize the image data.
sd = std(imageData,,3); imageData = imageData./sd;
Split the hyperspectral image into patches of size 25-by-25 pixels with 30 channels using the
createImagePatchesFromHypercube helper function. This function is attached to the example as a supporting file. The function also returns a single label for each patch, which is the label of the central pixel.
windowSize = 25; inputSize = [windowSize windowSize dimReduction]; [allPatches,allLabels] = createImagePatchesFromHypercube(imageData,gtLabel,windowSize); indianPineDataTransposed = permute(allPatches,[2 3 4 1]); dsAllPatches = augmentedImageDatastore(inputSize,indianPineDataTransposed,allLabels);
Not all of the cubes in this data set have labels. However, training the network requires labeled data. Select only the labeled cubes for training. Count how many labeled patches are available.
patchesLabeled = allPatches(allLabels>0,:,:,:); patchLabels = allLabels(allLabels>0); numCubes = size(patchesLabeled,1);
Convert the numeric labels to categorical.
patchLabels = categorical(patchLabels);
Randomly divide the patches into training and test data sets.
[trainingIdx,valIdx,testIdx] = dividerand(numCubes,0.3,0,0.7); dataInputTrain = patchesLabeled(trainingIdx,:,:,:); dataLabelTrain = patchLabels(trainingIdx,1); dataInputTest = patchesLabeled(testIdx,:,:,:); dataLabelTest = patchLabels(testIdx,1);
Transpose the input data.
dataInputTransposeTrain = permute(dataInputTrain,[2 3 4 1]); dataInputTransposeTest = permute(dataInputTest,[2 3 4 1]);
Create datastores that read batches of training and test data.
dsTrain = augmentedImageDatastore(inputSize,dataInputTransposeTrain,dataLabelTrain); dsTest = augmentedImageDatastore(inputSize,dataInputTransposeTest,dataLabelTest);
Create CSCNN Classification Network
Define the CSCNN architecture.
layers = [ image3dInputLayer(inputSize,Name="Input",Normalization="None") convolution3dLayer([3 3 7],8,Name="conv3d_1") reluLayer(Name="Relu_1") convolution3dLayer([3 3 5],16,Name="conv3d_2") reluLayer(Name="Relu_2") convolution3dLayer([3 3 3],32,Name="conv3d_3") reluLayer(Name="Relu_3") convolution3dLayer([3 3 1],8,Name="conv3d_4") reluLayer(Name="Relu_4") fullyConnectedLayer(256,Name="fc1") reluLayer(Name="Relu_5") dropoutLayer(0.4,Name="drop_1") fullyConnectedLayer(128,Name="fc2") dropoutLayer(0.4,Name="drop_2") fullyConnectedLayer(numClasses,Name="fc3") softmaxLayer(Name="softmax") classificationLayer(Name="output")]; lgraph = layerGraph(layers);
Visualize the network using Deep Network Designer.
Specify Training Options
Specify the required network parameters. For this example, train the network for 100 epochs with an initial learning rate of 0.001, a batch size of 256, and Adam optimization.
numEpochs = 100; miniBatchSize = 256; initLearningRate = 0.001; momentum = 0.9; learningRateFactor = 0.01; options = trainingOptions("adam", ... InitialLearnRate=initLearningRate, ... LearnRateSchedule="piecewise", ... LearnRateDropPeriod=30, ... LearnRateDropFactor=learningRateFactor, ... MaxEpochs=numEpochs, ... MiniBatchSize=miniBatchSize, ... GradientThresholdMethod="l2norm", ... GradientThreshold=0.01, ... VerboseFrequency=100, ... ValidationData=dsTest, ... ValidationFrequency=100);
Train the Network
By default, the example downloads a pretrained classifier for the Indian Pines data set. The pretrained network enables you to classify the Indian Pines data set without waiting for training to complete.
To train the network, set the
doTraining variable in the following code to
true. If you choose to train the network, use of a CUDA capable NVIDIA™ GPU is highly recommended. Use of a GPU requires Parallel Computing Toolbox™. For more information about supported GPU devices, see GPU Computing Requirements (Parallel Computing Toolbox).
doTraining = false; if doTraining net = trainNetwork(dsTrain,lgraph,options); modelDateTime = string(datetime("now",Format="yyyy-MM-dd-HH-mm-ss")); save("trainedIndianPinesCSCNN-"+modelDateTime+".mat","net"); else dataDir = pwd; trainedNetwork_url = "https://ssd.mathworks.com/supportfiles/image/data/trainedIndianPinesCSCNN.mat"; downloadTrainedNetwork(trainedNetwork_url,pwd); load(fullfile(dataDir,"trainedIndianPinesCSCNN.mat")); end
Downloading pretrained network. This can take several minutes to download... Done.
Classify Hyperspectral Image Using Trained CSCNN
Calculate the accuracy of the classification for the test data set. Here, accuracy is the fraction of the correct pixel classification over all the classes.
predictionTest = classify(net,dsTest); accuracy = sum(predictionTest == dataLabelTest)/numel(dataLabelTest); disp("Accuracy of the test data = "+num2str(accuracy))
Accuracy of the test data = 0.99359
Reconstruct the complete image by classifying all image pixels, including pixels in labeled training patches, pixels in labeled test patches, and unlabeled pixels.
prediction = classify(net,dsAllPatches); prediction = double(prediction);
The network is trained on labeled patches only. Therefore, the predicted classification of unlabeled pixels is meaningless. Find the unlabeled patches and set the label to
patchesUnlabeled = find(allLabels==0); prediction(patchesUnlabeled) = 0;
Reshape the classified pixels to match the dimensions of the ground truth image.
[m,n,d] = size(imageData); indianPinesPrediction = reshape(prediction,[n m]); indianPinesPrediction = indianPinesPrediction';

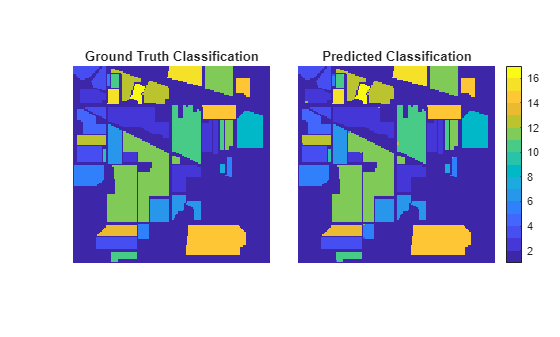

Display the ground truth and predicted classification.
cmap = parula(numClasses); figure tiledlayout(1,2,TileSpacing="Tight") nexttile imshow(gtLabel,cmap) title("Ground Truth Classification") nexttile imshow(indianPinesPrediction,cmap) colorbar title("Predicted Classification")

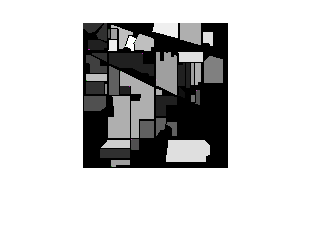

To highlight misclassified pixels, display a composite image of the ground truth and predicted labels. Gray pixels indicate identical labels and colored pixels indicate different labels.
