Signal Recovery Procedures
R2026bUse these signal recovery procedures in the reception of signals to discover cell identity and to decode MIB and SIB.
Functions
lteCellSearch | Cell identity search using PSS and SSS |
lteMIB | MIB encoding and decoding |
Topics
- Cell Search, MIB and SIB1 Recovery
This example shows how to fully synchronize, demodulate and decode a live eNodeB signal by using LTE Toolbox™ software.
Featured Examples

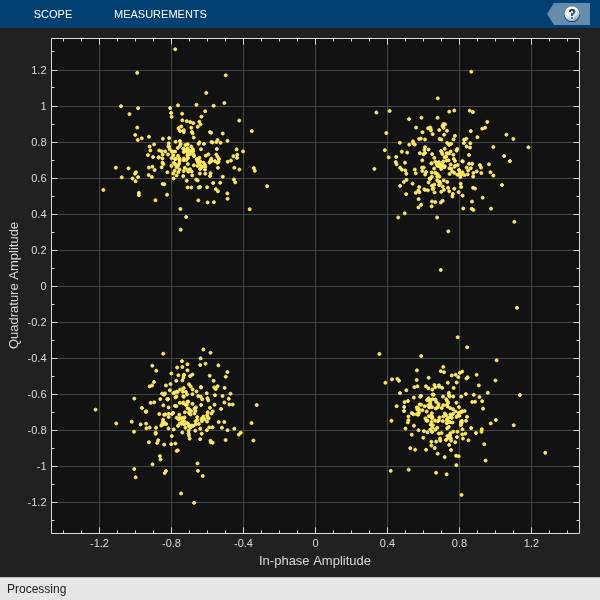

Cell Search, MIB and SIB1 Recovery
Fully synchronize, demodulate and decode a live eNodeB signal by using LTE Toolbox™ software. Before the user equipment (UE) can communicate with the network, it must perform cell search and selection procedures, and then obtain initial system information. This process involves acquiring slot and frame synchronization, determining the cell identity and decoding the MIB and system information blocks (SIBs). This example demonstrates this process and decodes the MIB and SIB1, the first of the system information blocks. Decoding the MIB and SIB1 requires a comprehensive that is capable of demodulating and decoding the majority of the downlink channels and signals.

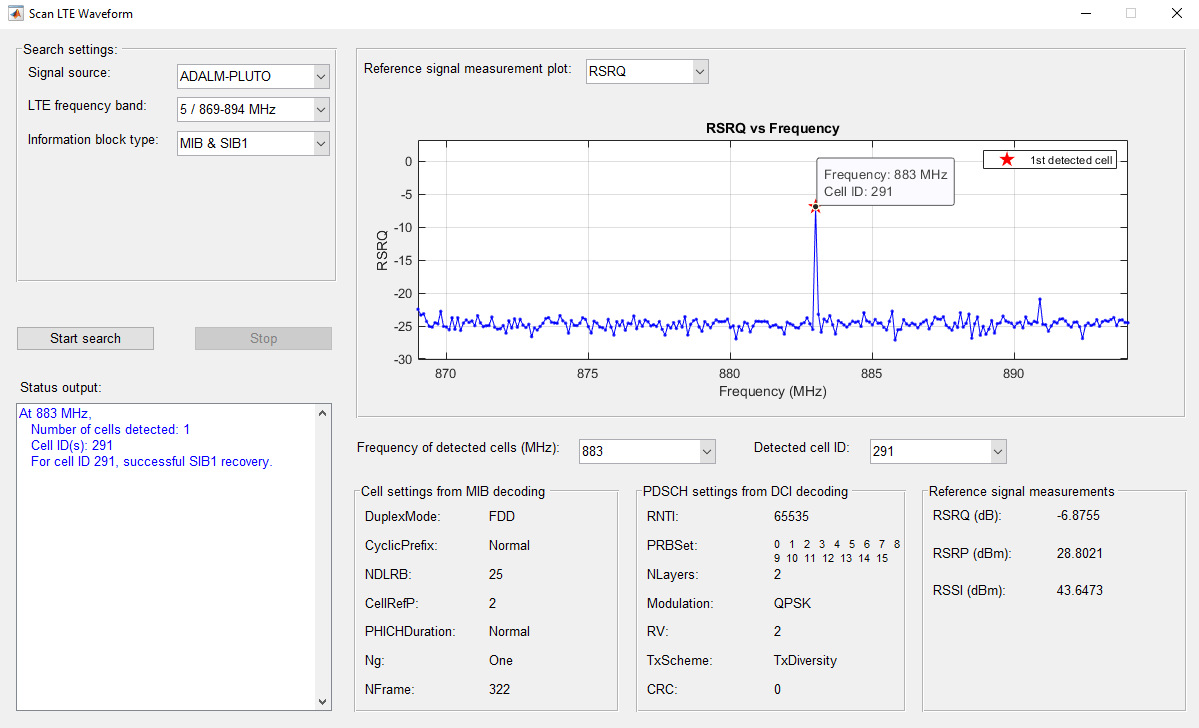

Scan and Decode LTE Waveform
Capture and decode an LTE signal obtained either from a file or from radio by using LTE Toolbox™ software and various hardware support packages (HSPs). Before the user equipment (UE) can communicate with the network, it must perform cell search and selection procedures, and then obtain initial system information. This process involves acquiring slot and frame synchronization, determining the cell identity, and decoding the MIB and system information blocks (SIBs). This example launches a graphical user interface (GUI), which enables you to:
