camtargm

Set camera target for axesm-based map using geographic coordinates

Syntax

camtargm(lat,long,alt) [x,y,z] = camtargm(lat,long,alt)

Description

camtargm(lat,long,alt) sets the axes CameraTarget property of the current axesm-based map to the position specified in geographic coordinates. The inputs lat and long are assumed to be in the angle units of the current axesm-based map.

[x,y,z] = camtargm(lat,long,alt) returns the camera target in the projected Cartesian coordinate system.

Examples

collapse all

Set Camera Target, Camera Up Vector, and Camera Position

Open Live Script

Load elevation data and a geographic cells reference object for the world. Display the data on a globe using a colormap appropriate for elevation data. Add a light source.

load topo60c

figure
axesm("globe",galt=0)
geoshow(topo60c,topo60cR,DisplayType="texturemap")
gridm(glinestyle='-')
axis off
demcmap(topo60c)

camlight
material(0.6*[1 1 1])

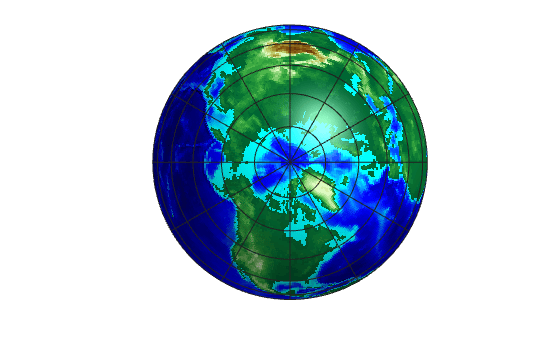

Figure contains an axes object. The hidden axes object contains 3 objects of type surface, line.

Control the view by specifying the camera target, camera up vector, camera position, and camera view angle.

Specify the camera target and the camera up vector using a point near northern Australia.
Specify the camera position using a point near New Zealand. Specify the camera height as one Earth radius above Earth.
Specify the field of view by setting the CameraViewAngle property of the axes.

tlat = -13;
tlon = 132;
camtargm(tlat,tlon,0)
camupm(tlat,tlon)

camposm(-42,179,1)

ax = gca;
ax.CameraViewAngle = 75;
