Data Preparation

R2026b

Import and prepare data for analysis

Use the MBC Model Fitting app to import data from external file formats and utilize plotting tools to gain an initial understanding of data quality. Clean the data by applying filters or performing manual inspection as needed. Finally, organize the data by operating points to prepare it for further analysis. After preprocessing the data, select the data to use for model fitting. See Select Data for Modeling Using the Fit Models Wizard.

Apps

MBC Model Fitting

Create experimental designs and statistical models for model-based calibration

Functions

expand all

Create Objects

`CreateBoundary`	Create boundary model
`CreateData`	Create data object in a project object
`CreateModel`	Create new model from existing model inputs
`mbcCreateModel`	Create new model (Since R2026b)
`mbcproject`	Create project object for model
`mbcDataFileTypes`	Data file types

Add, Append, Define Data Methods

`AddFilter`	Add filter to data set
`AddTestFilter`	Add test filter to data set
`AddVariable`	Add variable to data set
`Add`	Add boundary model to tree and fit to test plan data
`Append`	Append data to data set
`BeginEdit`	Begin editing a data object
`CommitEdit`	Apply changes in data
`DefineNumberOfRecordsPerTest`	Define exact number of records per test
`DefineTestGroups`	Define rule-based test groupings

Export, Import, Modify Data Methods

`ExportToMBCDataStructure`	Export data to MBC data structure
`ExportToTable`	Export data to table object
`ImportFromFile`	Import data from file
`ImportFromMBCDataStructure`	Load data from MBC data structure
`ImportFromTable`	Load data from a table object
`ModifyFilter`	Modify filter in data set
`ModifyTestFilter`	Modify test filter in data set
`ModifyVariable`	Modify variable in data set
`RemoveFilter`	Remove filter from data set
`RemoveTestFilter`	Remove test filter from data set
`RemoveVariable`	Remove variable from data set
`RollbackEdit`	Undo most recent changes to data
`Value`	Extract data values from data object

Topics

Data Preparation Overview
Prepare the test data.
Import and Merge Data in MBC Model Fitting App
Import and merge data using the MBC Model Fitting app.
View and Edit Data in the Data Editor
Examine data and design points using the Data Editor. Compare plots, tables, and list views for data visualization and analysis.
Create Variables and Filters Using the MBC Model Fitting App
Use the Variable Editor to define new variables. Use the Filter Editor to define new filters.
Define Operating Point Groupings
Use the Define Operating Point Groupings dialog box to define groupings for your data.
Match Data to Designs
Use the Design Match plot to match design points to data and select data for modeling.
Data Loading Application Programming Interface
Use the data loading API to write your own data loading function.

Featured Examples

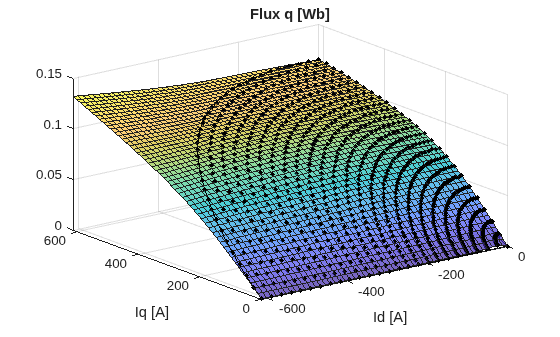

Preprocess Permanent Magnet Synchronous Motor (PMSM) Data and Autogenerate Current Controller Calibration Tables

Permanent magnet synchronous motor (PMSM) data preprocessing.

Open Live Script

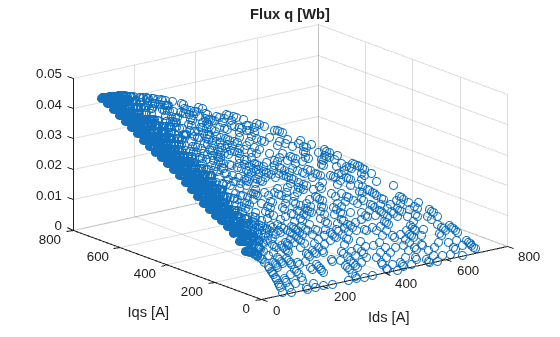

Preprocess Induction Motor Data and Autogenerate Current Controller Calibration Tables

Induction Motor (IM) data preprocessing.

Open Live Script

Load and Modify Data

Load and modify data using the command-line interface.

Open Live Script
