Model Configuration Raspberry Pi Blockset

R2026b

Hardware Implementation Overview

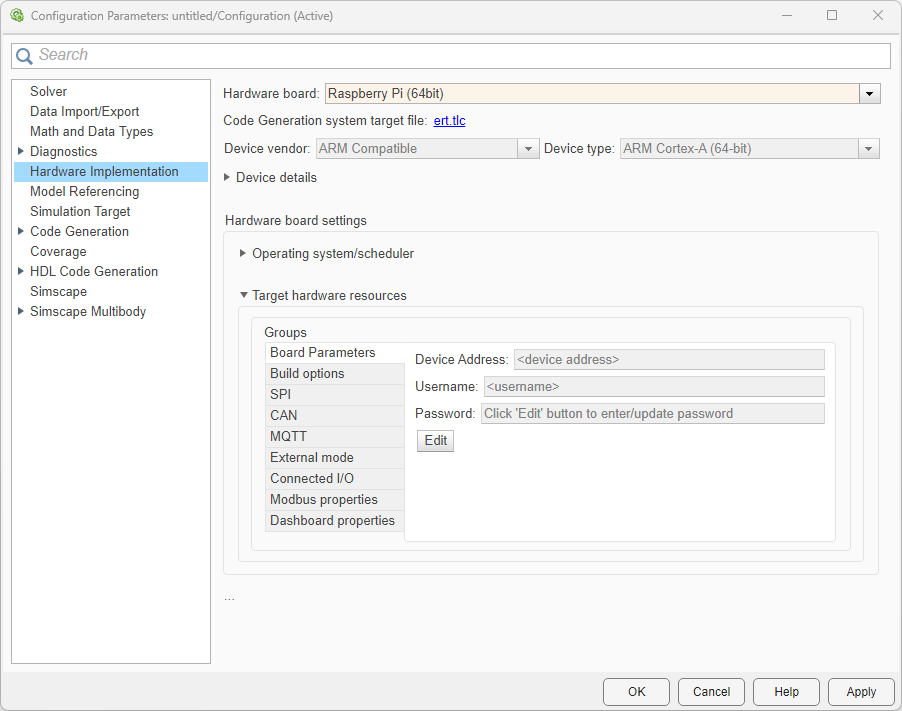

Configuration Parameters dialog box for Raspberry Pi hardware.

On the Modeling tab of the toolstrip, select Model Settings.
In the Configuration Parameter dialog box, select Hardware Implementation.
Set the Hardware board parameter to Raspberry Pi. This selection populates the Hardware board settings parameters with the default values for the Raspberry Pi^® hardware. You can adjust these parameters to suit your particular use case.
Click Apply.

Hardware Implementation pane parameters do not control hardware or compiler behavior. The parameters describe hardware and compiler properties for the MATLAB^® software.

Specifying hardware characteristics enables simulation of the model to detect error conditions that can arise when executing code, such as hardware overflow.
MATLAB uses the information to generate code for the platform that runs as efficiently as possible. MATLAB software also uses the information to give bit-true agreement for the results of integer and fixed-point operations in simulation and generated code.

See Also

Hardware Implementation Options (Simulink Coder)

Scheduler options

Parameter	Description	Default Value
Base rate trigger	Set source of scheduler interrupt	Operating system timer

Board Parameters

Parameter	Description	Default Value
Device Address	IP address or host name of the hardware board.	`<empty>`
Device Name	Device name of your Raspberry Pi board in Simulink^® Online™	`<empty>`
Username	Root user name for Linux^® running on the hardware board.	`<empty>`
Password	Root password for Linux running on the hardware board.	`<empty>`

Build options

Parameter	Description	Default Value
Build action	Option to specify whether you want only build or build and run actions during code generation.	Build and run
Build directory	Build directory for Linux running on the hardware board.	/home/pi
Enable parallel build	Enable Simulink to compile generated code and driver source code in parallel.	On
Run on boot	Automatically starts a Simulink model deployed on the hardware every time you restart the hardware.	Off
Start-up delay (in seconds)	Delay build or build and run by given amount of time	3

SPI

Parameter	Description	Default Value
SPI0 CE0 Bus Speed (kHz)	Bus speed in kilo hertz for SPI 0 channel 0.	500 KHz
SPI0 CE1 Bus Speed (kHz)	Bus speed in kilo hertz for SPI 0 channel 1.	500 KHz
SPI1 CE0 Bus Speed (kHz)	Bus speed in kilo hertz for SPI 1 channel 0.	500 KHz
SPI1 CE1 Bus Speed (kHz)	Bus speed in kilo hertz for SPI 1 channel 1.	500 KHz
SPI1 CE2 Bus Speed (kHz)	Bus speed in kilo hertz for SPI 1 channel 2.	500 KHz

CAN

Parameter	Description	Default Value
Interface configuration	CAN interface configuration method	`Specify via Simulink`
Number of interfaces	Number of CAN interfaces to configure	`1`
CAN Name	SocketCAN interface name	`can0`
CAN Type	CAN interface type	`Real`
CAN protocol	CAN communication protocol selection	`Classical CAN`
Bus speed (kbps)	CAN bus bit rate for classical CAN communication	`500`
Nominal bitrate (kbps)	Arbitration phase bit rate for CAN FD communication	`500`
Data bitrate (kbps)	Data phase bit rate for CAN FD communication	`2000`
Transmit queue buffer size	Transmit queue length for SocketCAN interface	`65536`
Filter configuration (all interfaces)	CAN message filtering mode selection	`Allow all messages`
ID type	CAN identifier format for acceptance filter	`Normal`
Acceptance Mask	CAN identifier bit mask for filtering	0
Acceptance filter	CAN identifier filter value	255
Inverse filter	Invert filter criterion to reject matching messages	Off

MQTT

Parameter	Description	Default Value
Encryption type	Communication encryption type between MQTT client and MQTT broker	`None`
Broker	Select the MQTT broker service provider that receives, filters, and sends messages to the clients.	`ThingSpeak`
Broker address	Address of the MQTT broker	`mqtt3.thingspeak.com`
Configuration file path on target	Location of configuration file on the Raspberry Pi	`<empty>`
Print diagnostic messages	Enable logging of diagnostic message	`On`
Port	Port number for MQTT communication	`1883`
CA Server certificate path	Server root certificate download path	`<empty>`
Username	User name for MQTT broker to authenticate the client	`<empty>`
Password	Password for MQTT broker to authenticate the client	`<empty>`
Client ID	Unique identifier of MQTT client	`<empty>`

External mode

Parameter	Description	Default Value
Communication interface	The transport layer External mode uses to exchange data between the host computer and the target hardware	`XCP on TCP/IP`
Host interface	Host-side interface for XCP external mode communication	`Simulink`
CAN Vendor	CAN hardware vendor for host-side XCP on CAN communication	First available vendor
CAN Device	CAN hardware device for host-side XCP on CAN communication	First available device
CAN Channel	CAN hardware channel for host-side XCP on CAN communication	First available channel
CAN interface name	SocketCAN interface name on the target for XCP on CAN communication	`can0`
Extended CAN ID	Use extended 29-bit CAN identifiers for XCP external mode communication	Off
CAN ID command	CAN identifier for XCP command messages from host to target	2
CAN ID response	CAN identifier for XCP response messages from target to host	3
Run external mode in a background	The option to force the External mode engine to run the generated code in a background task.	Not selected
Logging buffer size (in bytes)	The buffer size for logging data in Universal Measurement and Calibration Protocol (XCP)-based External mode.	1000000
Port	The port the External mode uses for communications between the hardware board and host computer.	17725
Verbose	Option to view the External Mode execution progress and updates in the Diagnostic Viewer or in the MATLAB Command Window.	off
Set logging buffer size automatically	Automatically preallocate buffer size	`<empty>`
Set XCP target polling time	Set XCP-based target polling time for Simulink models automatically or manually.	`Automatically`
Polling time (in seconds)	Enter polling time in seconds.	2

Connected I/O

Parameter	Description	Default Value
Communication Interface	Transport layer used to exchange data between host computer and hardware	`TCP/IP`

Modbus properties

Parameter	Description	Default Value
Communication Interface	Type of communication interface that the blocks use for Modbus^® communication	`TCP/IP`
Mode	Modbus mode of operation	`Client`
Remote Server IP port number	IP port number of the client device on the TCP/IP network	`502`
Local IP port number	IP port number of the server device(s) on the TCP/IP network	`502`
Configure Coils	Configure coil register parameters	Selected
Start address	Starting address of the coil register	`0`
Quantity	Quantity of coil register	`1`
Configure Discrete Inputs	Configure discrete input register parameters	Selected
Start Address	Starting address of the coil register	`0`
Quantity	Quantity of coil register	`1`
Configure Holding registers	Configure holding register parameters	Selected
Start address	Starting address of holding register	`0`
Quantity	Quantity of holding register	`1`
Configure Input registers	Configure input register parameters	Selected
Start address	Starting address of input register	`0`
Quantity	Quantity of input register	`1`
Received timeout (ms)	Maximum time in milliseconds the client waits for a response from Modbus server	`100`

Dashboard properties

Parameter	Description	Default Value
Enable deployment for Dashboard blocks	Enable deployment of Customizable Dashboard blocks on Raspberry Pi hardware boards	Not selected
IP address type	Select IP address that the web server uses to host dashboard	`Device address`
IP address	Enter IP address of device that hosts the dashboard on a web browser	`192.168.1.10`
WebSocket port	Enter port number for the WebSocket server	`8000`
HTTP port	Enter port number for the HTTP server	`8888`
