Analyze Serial Links with Serial Link Designer
Learn how to configure and explore the design space of a serial link. You can run network characterization, statistical, and time domain analysis using the Serial Link Designer app. You can also sweep different parameters and evaluate their impact on your design's performance.
Create New Project
Open the Serial Link Designer app.
Signal Integrity Toolbox recommends you to set the Java Heap Memory to at least 8392581120MB. Use Home Tab -> Preferences -> MATLAB -> General -> Java Heap Memory Current Java Heap: 478MB with 67MB in use. Maximum heap: 1584MB. Heap setting: 1728MB.
Create a new project by selecting File > Project > New Project. In the newly opened dialog box, name the project as
serial_link, the interface as
serdes, and the schematic sheet as
channel. Select the Auto-Generate Topology checkbox with Technology Defaults. The Pre-Layout Analysis tab shows the schematic sheet with a transmitter, a receiver, and a transmission line with default values.
Setup Simulation Parameters
Double click on the TX symbol to launch the Designator Element Properties dialog box. Set the unit interval for the transmitter to
100 ps to by selecting
100.0ps - Serdes_10G from the dropdown menu. Close the Designator Element Properties dialog box.
Double-click on the W-line symbol to launch the Lossy Transmission Line Element Properties dialog box. Check that Sweep Length parameter is enabled. Change the name of the Length parameter to
$tl_len. Close the Lossy Transmission Line Element Properties dialog box.

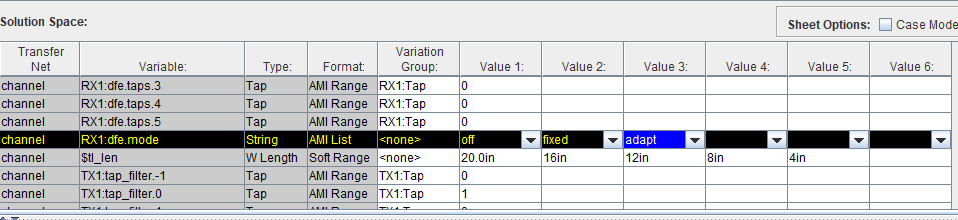

In the Solution Space panel, select the Variable
$tl_len already has
20in as Value1. Add the values
4in to sweep the length of the transmission line.
Next, select the Variable
$RX1:dfe.mode. Add the values
adapt to sweep the DFE mode.
At the bottom right corner of the Solution Space panel, the Simulation Count should show
15. Save the changes.
Validate the schematic set by selecting Run > Validate Current Schematic Set. The validation should run without warning or errors.
To see the effects of sweeping the transmission line length and DFE mode on the physical channel characteristics, run network characterization.
Run the simulation by selecting Run > Simulate Selected. In the Prelayout Channel Analysis dialog box, select Validate, Generate Netlists, Perform Channel Analysis, and Autoload Results. Make sure Include Statistical Analysis and Include Time Domain Analysis are unchecked, so network characterization is the only analysis performed. Click Run to start the simulation process.
When the analysis is finished the SI Viewer app launches and loads the analysis results. The table has one row per simulation. You can sort by any column by clicking on the column header. For this example, the lowest loss is around 4.68 dB and the highest loss is around 16.14 dB.

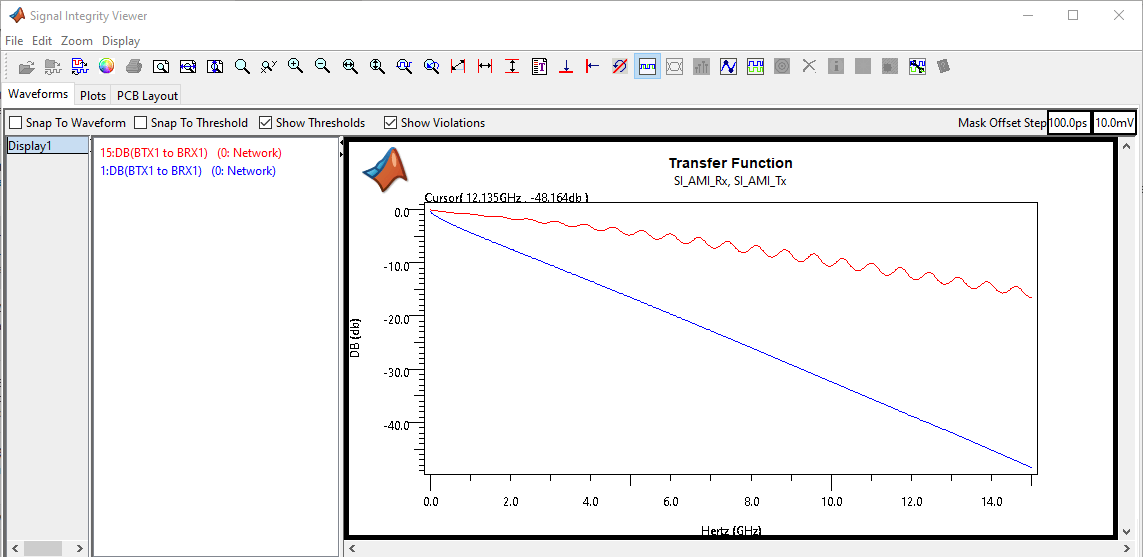

To view the transfer function of any data, select the data, right click and select Show Transfer Function (Unequilized).

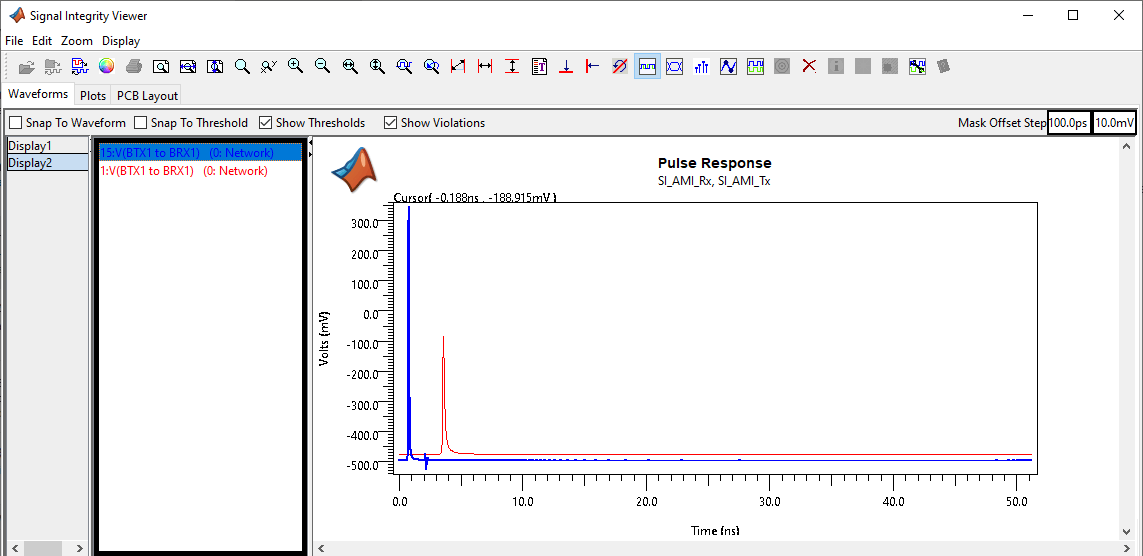

To add a new display, right-click on the display name tab and select Add New Display. Select the Show Pulse Response (Unequalized) and view it.
Close the SI Viewer app.
Statistical and Time Domain Analysis
To run the statistical and time domain analysis, select Include Statistical Analysis and Include Time Domain Analysis in the Prelayout Channel Analysis dialog box. Click Run to start the simulation process.
When the analysis is finished the SI Viewer app launches and loads the analysis results. There are three tabs in the results table, one for network characterization, one for statistical analysis, and one time domain analysis.

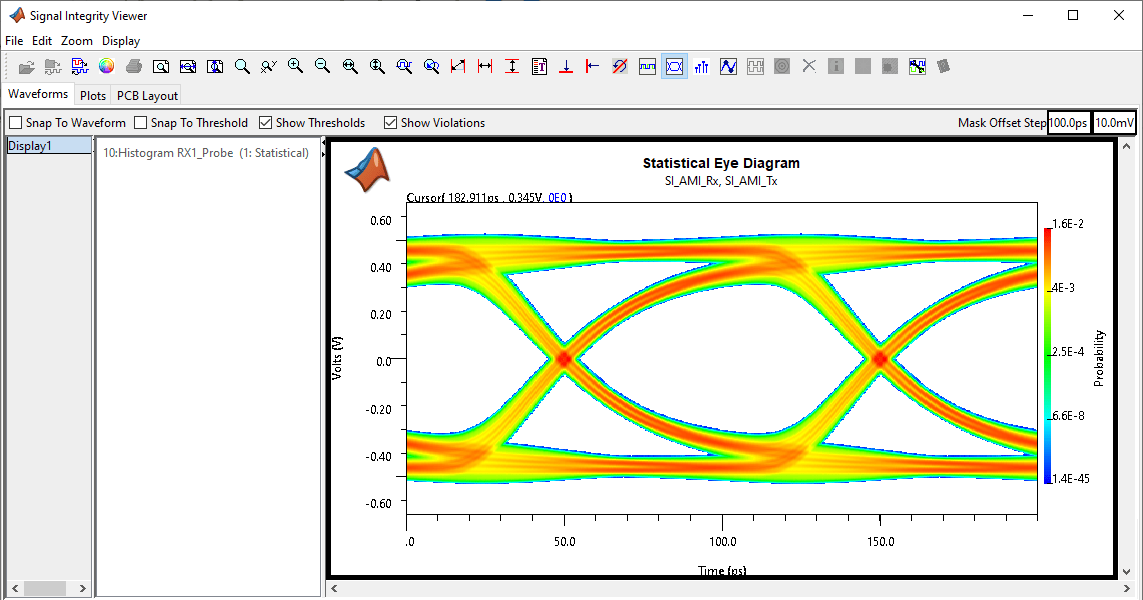

To view the statistical analysis results of any data, select the Statistical tab, select the data, right click and select Show Statistical Eye.

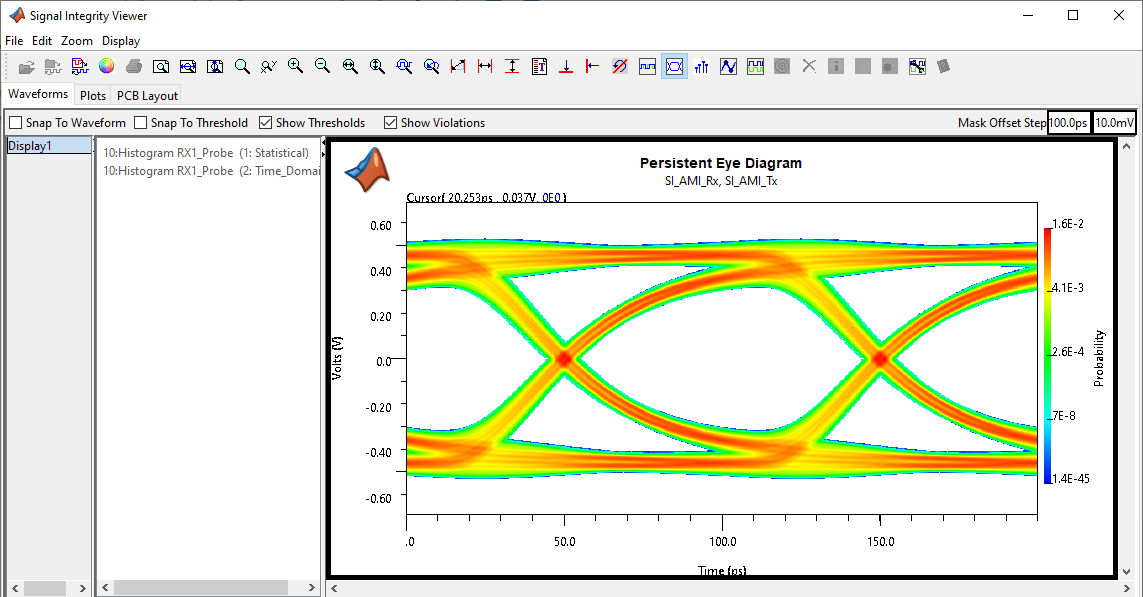

To view the time domain analysis results of any data, select the Time_Domain tab, select the data, right click and select Show Persistent Eye.
Close the SI Viewer app and the Prelayout Channel Analysis dialog box.
