Filtres analogiques

Bessel, Butterworth, Chebyshev, filtre elliptique, transformation bilinéaire, fonctions d’analyse

Concevez et analysez des filtres analogiques de Bessel, de Butterworth, de Chebyshev et elliptiques. Procédez à la conversion analogique-numérique des filtres en utilisant l’invariance impulsionnelle ou la transformation bilinéaire.

Fonctions

développer tout

besselfBessel analog filter design
butterDesign de filtres de Butterworth
cheby1Chebyshev Type I filter design
cheby2Chebyshev Type II filter design
ellipElliptic filter design
freqsFrequency response of analog filters
freqspaceFrequency spacing for frequency response
besselap Bessel analog lowpass filter prototype
bilinearBilinear transformation method for analog-to-digital filter conversion
buttapButterworth analog lowpass filter prototype
cheb1apChebyshev Type I analog lowpass filter prototype
cheb2apChebyshev Type II analog lowpass filter prototype
ellipapElliptic analog lowpass filter prototype
impinvarImpulse invariance method for analog-to-digital filter conversion
lp2bpTransform lowpass analog filters to bandpass
lp2bsTransform lowpass analog filters to bandstop
lp2hpTransform lowpass analog filters to highpass
lp2lpChange cutoff frequency for lowpass analog filter

Rubriques

  • IIR Filter Design

    This example compares classical Butterworth, Chebyshev, and elliptic designs; and explores Bessel, Yule-Walker, and generalized Butterworth filters.

  • Continuous-Time System Models

    Explore different schemes to represent analog filters.

Sélection d՚exemples

Comparison of Analog IIR Lowpass Filters

Comparison of Analog IIR Lowpass Filters

Design, plot, and compare Butterworth, Chebyshev, and elliptic analog filters.

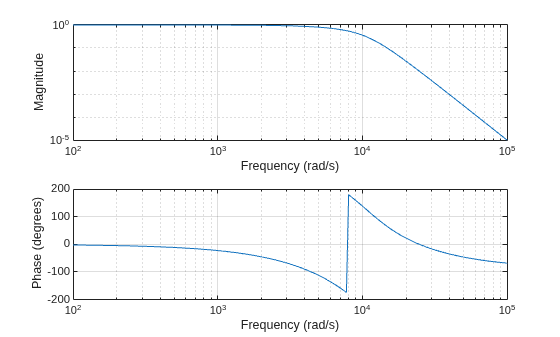

Frequency Response of Lowpass Bessel Filter

Frequency Response of Lowpass Bessel Filter

Design an analog Bessel filter and display its magnitude and phase responses.
