Dashboard
R2026aUtilisez des blocs Dashboard pour créer et déployer des tableaux de bord interactifs pour vos cartes Arduino®. Affichez le tableau de bord sur un écran LCD ou un équipement Android®.
Paramètres du modèle
Sélection d՚exemples

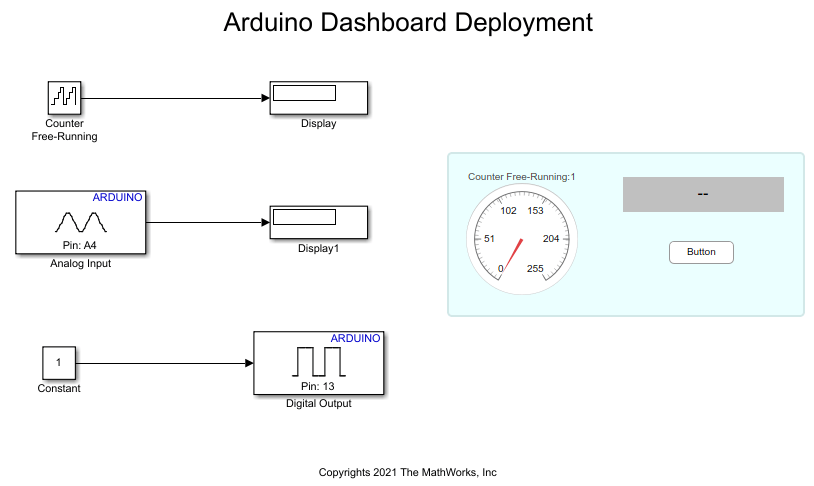

Create and Deploy Interactive Dashboard on Arduino
Use the Simulink® Support Package for Arduino® Hardware to create and deploy an interactive dashboard panel using the Push Button, Circular Gauge, and Display blocks on your Arduino hardware. You can interface any graphical TFT or LCD display type with your Arduino hardware to view the dashboard. This example uses the Adafruit ILI 9341 graphical LCD display.

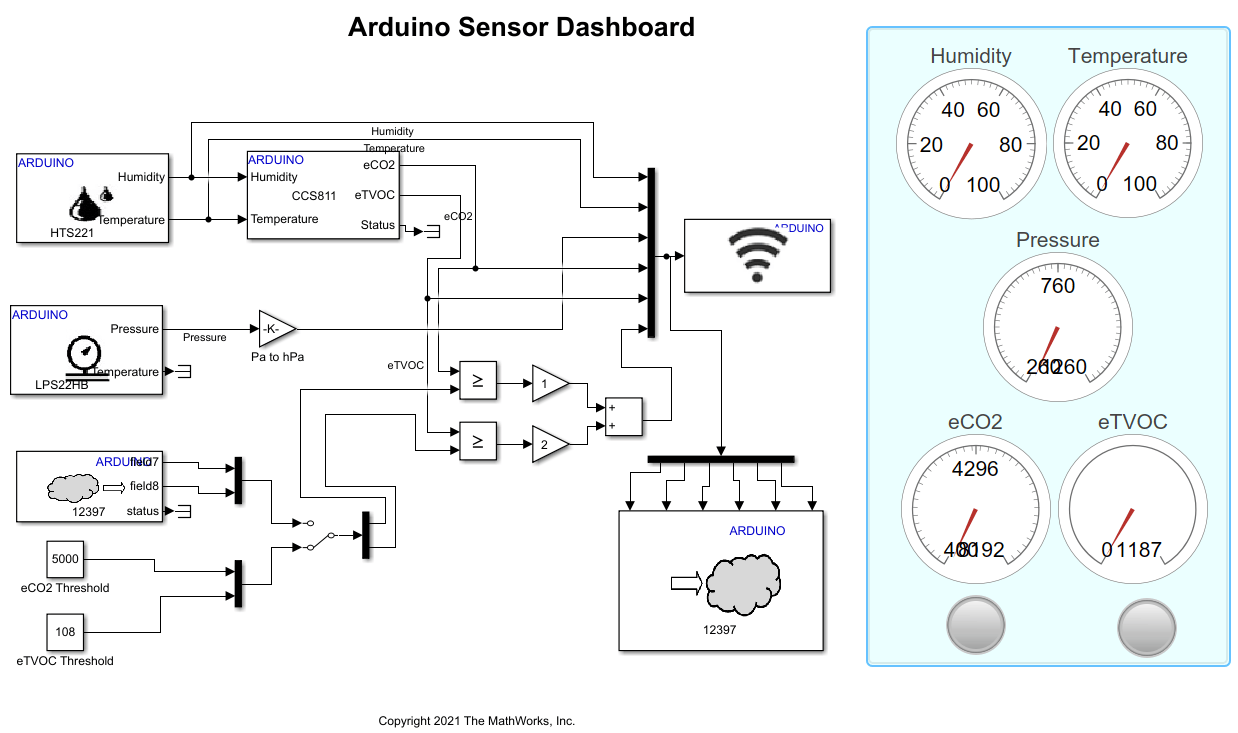

Develop Multi-Sensor Dashboard Using Arduino
Measure equivalent carbon dioxide (eCO2) concentration levels and equivalent total volatile organic compound (eTVOC) concentration levels using the CCS811 Air Quality Sensor block from the Simulink® Support Package for Arduino® Hardware. The model notifies you when the eCO2 and eTVOC levels cross the acceptable thresholds through an alarm lamp on the dashboard. You can publish the eCO2 and eTVOC concentration levels on a ThingSpeak™ channel. You can also display the sensor data on an Android® application using dashboard display. In the latter case, the Arduino hardware board acts as a host that sends the sensor data while the Android device acts as a client that accepts this data over the TCP/IP network and displays the data on the application dashboard.
