Model Reusable Components Using Multiply Instanced Simulink Functions

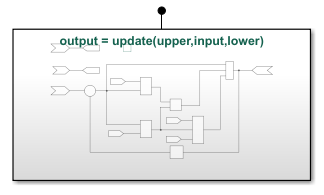

In this example, the model
slexCounterFunctionMdlRef contains the Simulink® function
update, which maintains a counter. Multiple instancing provides the ability to reuse this logic as
CounterB in this example model.
The qualified calling notation
CounterB.update is used to distinguish the two different instances of the counter logic. As illustrated in this example, each instance can be called from multiple caller blocks.
