Fire test Q-Bat use case

Version 1.0.1 (28.9 MB) by QuickerSim
This repository shows how to model heat transfer in a generic battery pack during fire test in Q-Bat from QuickerSim.
0.0
(0)

10 Downloads

Updated 13 Jun 2022

From GitHub

View License on GitHub

Heat transfer during battery pack fire test modeled in Q-Bat

View Battery pack Simulink model with Q-Bat and Simscape on File Exchange

⬇️ Please use this link instead of the download button: Download link ⬇️

Run fire_test_model.m and fire_test_live.mlx to get started

  • Please visit the Q-Bat and QuickerSim page to learn more about modeling heat transfer in 3-D systems.

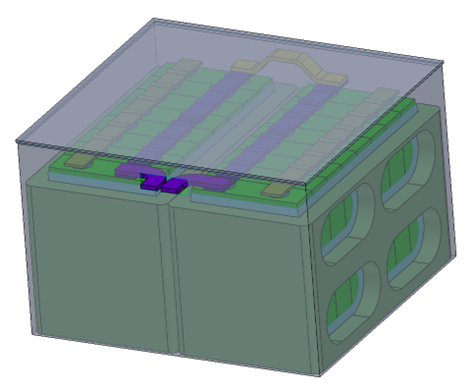

This repository shows how to model heat transfer in a generic battery pack during fire test in Q-Bat from QuickerSim. The model consists of 16 Li-ion cells connected in 4s4p circuit, bus bars, connectors, holders and casing and is connected to a reduced-order model (ROM) to model heat transfer in 3D geometry.

The model will simulate battery’s behavior during fire test, which consists of 3 phases:

  • 70 s of direct contact with a fire source
  • 60 s of indirect contact with a fire source
  • up to 3 hours of cooling to the ambient temperature

Simulation Model

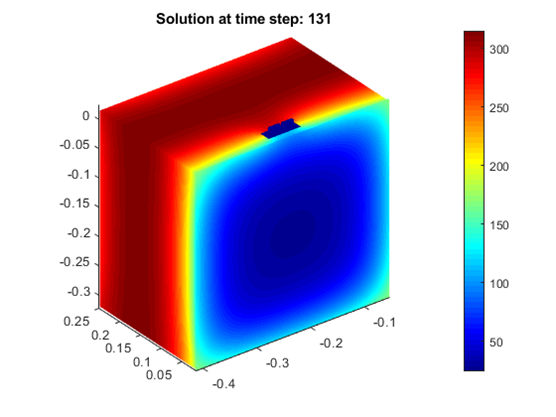

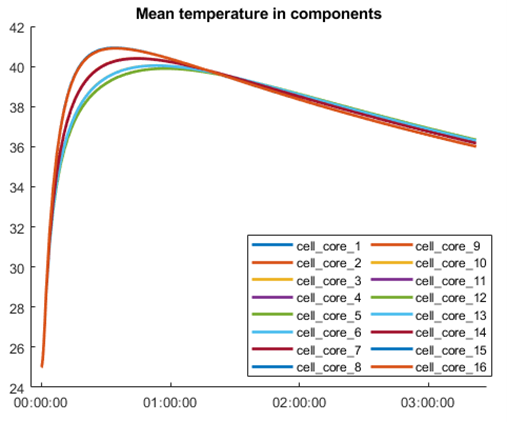

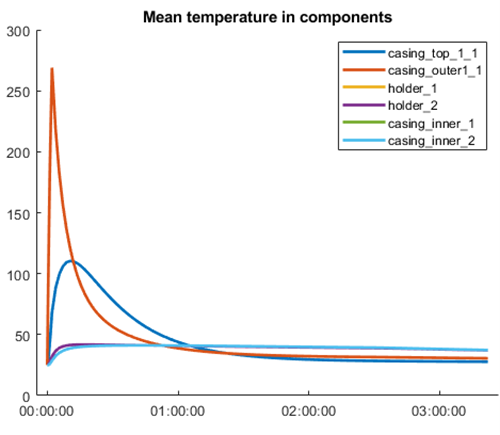

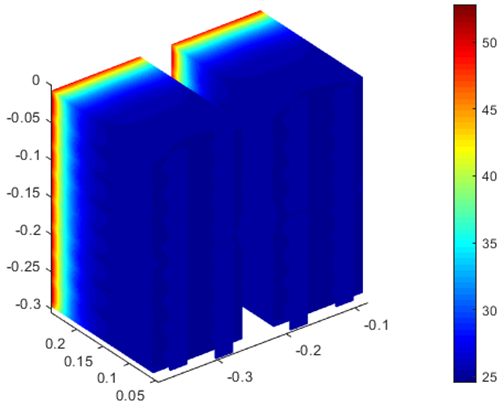

Simulation Results

Cite As

QuickerSim (2023). Fire test Q-Bat use case (https://github.com/QuickerSim/Fire-test-Q-Bat-use-case/releases/tag/1.0.1), GitHub. Retrieved .

MATLAB Release Compatibility
Created with R2022a
Compatible with R2018b and later releases
Platform Compatibility
Windows macOS Linux
