NR Channel Estimation Using CSI-RS

This example shows how to generate channel state information reference signal (CSI-RS) symbols and indices for a given carrier and CSI-RS resource configuration, as defined in TS 38.211 Section The example shows how to map the generated symbols to the carrier resource grid, performs channel estimation at the receiver side, and compares the estimated channel against the actual channel.


CSI-RS is a downlink-specific (DL) reference signal. The NR standard defines zero-power (ZP) and non-zero-power (NZP) CSI-RSs.

The user equipment (UE) processes utilize NZP-CSI-RSs:

  • L1-Reference signal received power (RSRP) measurements for mobility and beam management

  • DL CSI acquisition

  • Interference measurement

  • Time and frequency tracking

ZP-CSI-RS is used for DL CSI acquisition and interference measurement. It also masks certain resource elements (REs) to make them unavailable for PDSCH transmission. As the name ZP indicates, nothing is transmitted in those REs.

This example shows how to use CSI-RS to perform channel estimation which forms the basis of CSI acquisition.

Initialize Configuration Objects

Create a carrier configuration object representing a 5 MHz carrier with subcarrier spacing of 15 kHz.

carrier = nrCarrierConfig;
carrier.NSizeGrid = 25;
carrier.SubcarrierSpacing = 15;
carrier.NSlot = 1;
carrier.NFrame = 0
carrier =
  nrCarrierConfig with properties:

                NCellID: 1
      SubcarrierSpacing: 15
           CyclicPrefix: 'normal'
              NSizeGrid: 25
             NStartGrid: 0
                  NSlot: 1
                 NFrame: 0
    IntraCellGuardBands: [0x2 double]

   Read-only properties:
         SymbolsPerSlot: 14
       SlotsPerSubframe: 1
          SlotsPerFrame: 10

Create a CSI-RS configuration object representing two CSI-RS resources, NZP with row number 3 and ZP with row number 5.

csirs = nrCSIRSConfig;
csirs.CSIRSType = {'nzp','zp'};
csirs.CSIRSPeriod = {[5 1],[5 1]};
csirs.Density = {'one','one'};
csirs.RowNumber = [3 5];
csirs.SymbolLocations = {1,6};
csirs.SubcarrierLocations = {6,4};
csirs.NumRB = 25
csirs =
  nrCSIRSConfig with properties:

              CSIRSType: {'nzp'  'zp'}
            CSIRSPeriod: {[5 1]  [5 1]}
              RowNumber: [3 5]
                Density: {'one'  'one'}
        SymbolLocations: {[1]  [6]}
    SubcarrierLocations: {[6]  [4]}
                  NumRB: [25]
               RBOffset: [0]
                    NID: [0]

   Read-only properties:
          NumCSIRSPorts: [2 4]
                CDMType: {'FD-CDM2'  'FD-CDM2'}

Consider the power scaling of CSI-RS in dB.

powerCSIRS = 0;
disp(['CSI-RS power scaling: ' num2str(powerCSIRS) ' dB']);
CSI-RS power scaling: 0 dB

Generate CSI-RS Symbols and Indices

Generate CSI-RS symbols for the specified carrier and CSI-RS configuration parameters. Apply power scaling.

sym = nrCSIRS(carrier,csirs);
csirsSym = sym*db2mag(powerCSIRS);

The variable csirsSym is a column vector containing CSI-RS symbols.

Generate CSI-RS indices for the specified carrier and CSI-RS configuration parameters.

csirsInd = nrCSIRSIndices(carrier,csirs);

The variable csirsInd is also a column vector of same size as that of csirsSym.

When you configure both ZP and NZP resources, the generation of ZP signals takes priority over the generation of NZP signals.

Initialize Carrier Grid

Initialize the carrier resource grid for one slot.

ports = max(csirs.NumCSIRSPorts);   % Number of antenna ports
txGrid = nrResourceGrid(carrier,ports);

Map CSI-RS Symbols onto Carrier Grid

Perform resource element mapping.

txGrid(csirsInd) = csirsSym;

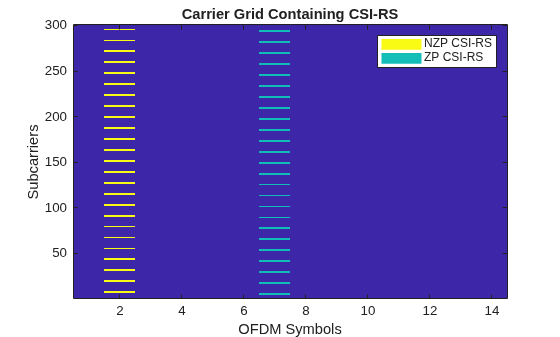

Plot the locations of the CSI-RS (both ZP and NZP) in the grid.


Perform OFDM Modulation

Perform OFDM modulation to generate the time-domain waveform.

[txWaveform,ofdmInfo] = nrOFDMModulate(carrier,txGrid);

Pass Time-Domain Waveform Through Channel and Add AWGN Noise

Configure the number of receiving antennas.

R = 4;

Configure the channel.

channel = nrTDLChannel;
channel.NumTransmitAntennas = ports;
channel.NumReceiveAntennas = R;
channel.DelayProfile = 'TDL-C';
channel.MaximumDopplerShift = 10;
channel.DelaySpread = 1e-8;

Set sample rate of the channel.

waveformInfo = nrOFDMInfo(carrier);
channel.SampleRate = waveformInfo.SampleRate
channel =
  nrTDLChannel with properties:

                 DelayProfile: 'TDL-C'
                  DelaySpread: 1.0000e-08
          MaximumDopplerShift: 10
                   SampleRate: 7680000
              MIMOCorrelation: 'Low'
                 Polarization: 'Co-Polar'
        TransmissionDirection: 'Downlink'
          NumTransmitAntennas: 4
           NumReceiveAntennas: 4
           NormalizePathGains: true
                  InitialTime: 0
                 NumSinusoids: 48
                 RandomStream: 'mt19937ar with seed'
                         Seed: 73
      NormalizeChannelOutputs: true
             ChannelFiltering: true
    TransmitAndReceiveSwapped: false

Based on the configured channel, append zeros to the transmitted waveform to account for the channel delay.

chInfo = info(channel);
maxChDelay = chInfo.MaximumChannelDelay;
txWaveform = [txWaveform; zeros(maxChDelay,size(txWaveform,2))];

Pass waveform through channel.

[rxWaveform,pathGains] = channel(txWaveform);

To produce the actual propagation channel H_actual, perform perfect channel estimation.

pathFilters = getPathFilters(channel);
H_actual = nrPerfectChannelEstimate(carrier,pathGains,pathFilters);

Add AWGN noise to the waveform. For an explanation of the SNR definition that this example uses, see SNR Definition Used in Link Simulations.

SNRdB = 50;           % in dB
SNR = 10^(SNRdB/10);  % Linear value
N0 = 1/sqrt(2.0*R*double(ofdmInfo.Nfft)*SNR); % Noise variance
noise = N0*complex(randn(size(rxWaveform)),randn(size(rxWaveform)));
rxWaveform = rxWaveform + noise;

Perform timing synchronization using NZP-CSI-RS. To estimate timing offset, use nrTimingEstimate and consider the NZP-CSI-RS as a reference.

% Disable ZP-CSI-RS resource, not going to be used for timing and channel
% estimation
csirs.CSIRSPeriod = {[5 1],'off'};
% Generate reference symbols and apply power scaling
refSym = db2mag(powerCSIRS)*nrCSIRS(carrier,csirs);
% Generate reference indices
refInd = nrCSIRSIndices(carrier,csirs);
offset = nrTimingEstimate(carrier,rxWaveform,refInd,refSym)
offset = 7
rxWaveform = rxWaveform(1+offset:end,:);

OFDM demodulate the received time-domain waveform.

rxGrid = nrOFDMDemodulate(carrier,rxWaveform); % Of size K-by-L-by-R

Compare Estimated Channel Against Actual Channel

Perform practical channel estimation using NZP-CSI-RS. Make sure the CSI-RS symbols csirsSym are of the same CDM type.

cdmLen = [2 1]; % Corresponds to CDMType = 'FD-CDM2'
[H_est,nVar] = nrChannelEstimate(carrier,rxGrid,refInd,refSym,'CDMLengths',cdmLen);
disp(['Estimated noise variance = ' num2str(nVar)])
Estimated noise variance = 0.00011155

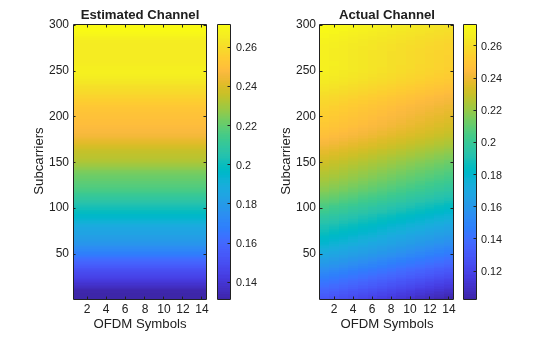

Plot the estimated channel and actual channel between first transmitting antenna and first receiving antenna.


% Plot the estimated channel
title('Estimated Channel')
axis xy;
xlabel('OFDM Symbols');

% Plot the actual channel
title('Actual Channel')
axis xy;
xlabel('OFDM Symbols');

Calculate the channel estimation error.

H_err = (H_est - H_actual(:,:,:,1:size(H_est,4)));
[minErr,maxErr] = bounds(abs(H_err),'all');
disp(['Absolute value of the channel estimation error is in the range of [' num2str(minErr) ', ' num2str(maxErr) ']'])
Absolute value of the channel estimation error is in the range of [2.4865e-05, 0.029678]

Local Functions

function plotGrid(gridSize,csirsInd,csirsSym)
%    plotGrid(GRIDSIZE,CSIRSIND,CSIRSSYM) plots the carrier grid of size GRIDSIZE
%    by populating the grid with CSI-RS symbols using CSIRSIND and CSIRSSYM.

    cmap = colormap(gcf);
    chpval = {20,2};
    chpscale = 0.25*length(cmap); % Scaling factor

    tempSym = csirsSym;
    tempSym(tempSym ~= 0) = chpval{1}; % Replacing non-zero-power symbols
    tempSym(tempSym == 0) = chpval{2}; % Replacing zero-power symbols
    tempGrid = complex(zeros(gridSize));
    tempGrid(csirsInd) = tempSym;

    image(chpscale*tempGrid(:,:,1)); % Multiplied with scaling factor for better visualization
    axis xy;
    names = {'NZP CSI-RS','ZP CSI-RS'};
    clevels = chpscale*[chpval{:}];
    N = length(clevels);
    L = line(ones(N),ones(N),'LineWidth',8); % Generate lines
    % Index the color map and associate the selected colors with the lines
    set(L,{'color'},mat2cell(cmap( min(1+clevels,length(cmap) ),:),ones(1,N),3)); % Set the colors according to cmap
    % Create legend

    title('Carrier Grid Containing CSI-RS')
    xlabel('OFDM Symbols');


[1] 3GPP TS 38.211. “NR; Physical channels and modulation.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
