createHole

Create a 2-D hole on custom shape

Since R2023b

Syntax

resultantShape = createHole(shape1,shape2)

Description

resultantShape = createHole(shape1,shape2) creates a hole of 2-D shape shape2 on a custom shape shape1.

Examples

Cut Rectangular Hole from Box

This example shows how to cut a 2-D hole in a shape.

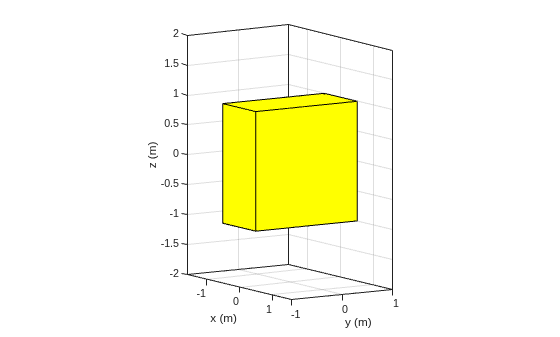

Create and view a box.

box = shape.Box;
show(box)

Create a rectangle to cut as a hole from the box.

rect = shape.Rectangle(Length=0.4,Width=0.2);
[~] = translate(rect,[0 0 1]);

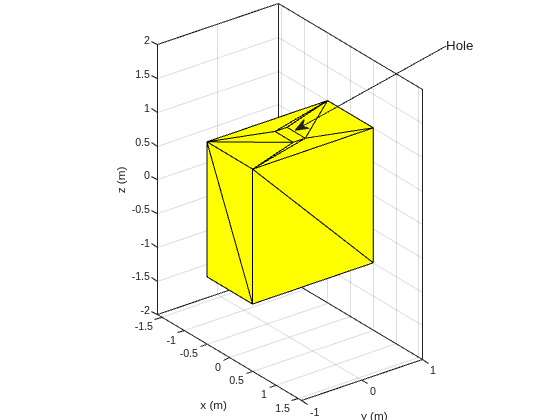

Create the hole on the box and view the resultant shape.

out_shape = createHole(box,rect);
show(out_shape)
view([52.89 26.87])
annotation("textarrow", [0.7964 0.5268], [0.8881 0.6881], "String", "Hole")

% Property editing
positionPropObjs = findobj(gcf, "-property", "Position");
positionPropObjs(1).Position = [1.0000 1.0000 560.0000, 420.0000];

Input Arguments

shape1 — Shape to cut hole

shape object

Shape to cut hole, specified as a shape object from Custom 2-D and 3-D Antenna category.

Example: shape.Box

Example: shape.Circle

shape2 — Shape of 2-D hole

2-D shape object

Shape of 2-D hole, specified as a 2-D shape object from Custom 2-D and 3-D Antenna category.

Example: shape.Circle

Output Arguments

resultantShape — Resultant shape after cutting 2-D hole

shape object

Resultant shape after cutting the 2-D hole, returned as a shape object.

Version History

Introduced in R2023b
