add
Add additional data to existing Smith chart
Description
Examples
Add S-Parameter Data to Existing Smith Plot
Plot the reflection coefficients of a dipole antenna.
Create a strip dipole antenna on the Y-Z plane. Calculate the complex s-parameters of the dipole antenna from 60 MHz to 90 MHz, with an interval of 150 kHz.

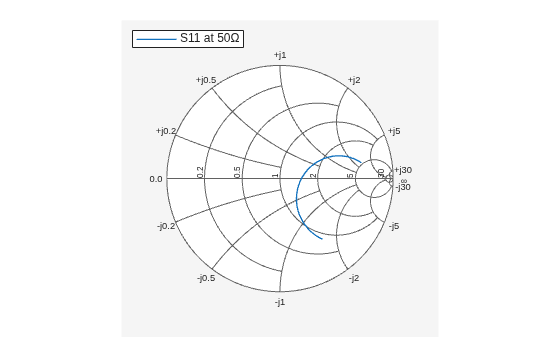

Plot S11 on a Smith plot for a reference impedance of 50 ohm.
d = dipole;
freq = linspace(60e6, 90e6, 200);
s_50 = sparameters(d, freq,50);
hg = smithplot(s_50,[1,1]);
hg.LegendLabels = {"S11 at 50#ohm"};

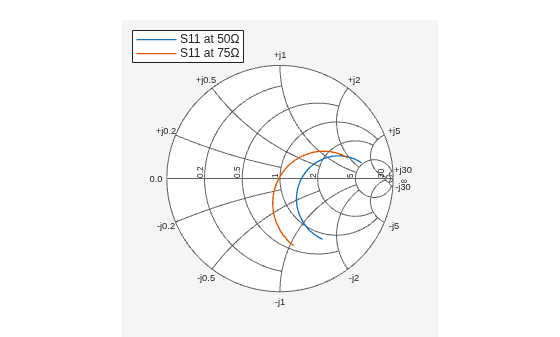

Find S11 for a new impedance of 75 ohm. Add new S11 to the existing Smith plot.
s_75 = sparameters(d, freq, 75); gamma = rfparam(s_75,1,1); add(hg, gamma); hg.LegendLabels = {"S11 at 50#ohm","S11 at 75#ohm"};
Input Arguments
plot
— Smith chart
function handle
Smith chart handle, specified as a function handle. If the handle of the
Smith chart is not retained during creation, it is obtained by using the
command p = smithplot('gco')
.
Data Types: double
data
— Input data
complex vector | complex matrix
Input data, specified as a complex vector or complex matrix.
For a matrix D, the columns of D are independent data sets. For N-by-D arrays, dimensions 2 and greater are independent data sets.
Data Types: double
Complex Number Support: Yes
frequency
— Frequency data
real vector
Frequency data, specified as a real vector.
Data Types: double
Version History
Introduced in R2017b
