addAugmentationMethod
Add custom augmentation method
Syntax
Description
addAugmentationMethod(
adds a custom augmentation algorithm to an aug
,algorithmName
,algorithmHandle
)audioDataAugmenter
object.
addAugmentationMethod(
specifies options using one or more aug
,algorithmName
,algorithmHandle
,Name,Value
)Name,Value
pair arguments.
Examples
Add Custom Augmentation Method
You can expand the capabilities of audioDataAugmenter
by adding custom augmentation methods.
Read in an audio signal and listen to it.
[audioIn,fs] = audioread('Counting-16-44p1-mono-15secs.wav');
sound(audioIn,fs)
Create an audioDataAugmenter
object. Set the probability of applying white noise to 0
.
augmenter = audioDataAugmenter('AddNoiseProbability',0)
augmenter = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 1 TimeStretchProbability: 0.5000 SpeedupFactorRange: [0.8000 1.2000] PitchShiftProbability: 0.5000 SemitoneShiftRange: [-2 2] VolumeControlProbability: 0.5000 VolumeGainRange: [-3 3] AddNoiseProbability: 0 TimeShiftProbability: 0.5000 TimeShiftRange: [-0.0050 0.0050]
Specify a custom augmentation algorithm that applies pink noise. The AddPinkNoise
algorithm is added to the augmenter
properties.
algorithmName = 'AddPinkNoise'; algorithmHandle = @(x)x+pinknoise(size(x),'like',x); addAugmentationMethod(augmenter,algorithmName,algorithmHandle) augmenter
augmenter = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 1 TimeStretchProbability: 0.5000 SpeedupFactorRange: [0.8000 1.2000] PitchShiftProbability: 0.5000 SemitoneShiftRange: [-2 2] VolumeControlProbability: 0.5000 VolumeGainRange: [-3 3] AddNoiseProbability: 0 TimeShiftProbability: 0.5000 TimeShiftRange: [-0.0050 0.0050] AddPinkNoiseProbability: 0.5000
Set the probability of adding pink noise to 1
.
augmenter.AddPinkNoiseProbability = 1
augmenter = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 1 TimeStretchProbability: 0.5000 SpeedupFactorRange: [0.8000 1.2000] PitchShiftProbability: 0.5000 SemitoneShiftRange: [-2 2] VolumeControlProbability: 0.5000 VolumeGainRange: [-3 3] AddNoiseProbability: 0 TimeShiftProbability: 0.5000 TimeShiftRange: [-0.0050 0.0050] AddPinkNoiseProbability: 1
Augment the original signal and listen to the result. Inspect parameters of the augmentation algorithms applied.
data = augment(augmenter,audioIn,fs); sound(data.Audio{1},fs) data.AugmentationInfo(1)
ans = struct with fields:
SpeedupFactor: 1
SemitoneShift: 0
VolumeGain: 2.4803
TimeShift: -0.0022
AddPinkNoise: 'Applied'

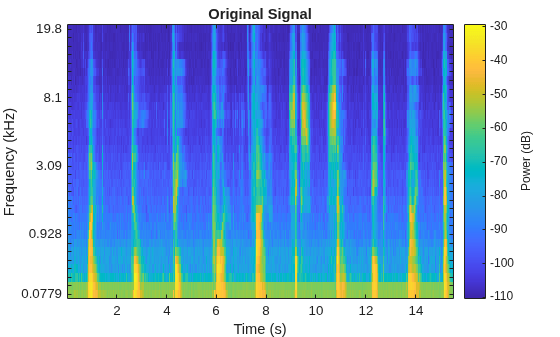

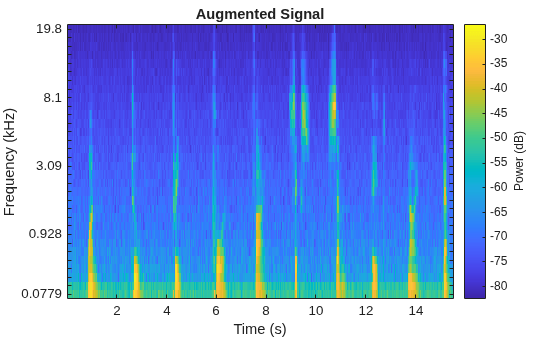

Plot the mel spectrograms of the original and augmented signals.
melSpectrogram(audioIn,fs)
title('Original Signal')
melSpectrogram(data.Audio{1},fs)
title('Augmented Signal')
Specify Parameters of Custom Augmentation Method
In this example, you add a custom augmentation method that applies median filtering to your audio.
Read in an audio signal and listen to it.
[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav");
sound(audioIn,fs)
Create a random sequential augmenter that adds noise with an SNR range of 5 dB to 10 dB. Set the probability of applying volume control, time stretching, pitch shifting, and time shifting to 0
. Set NumAugmentations
to 4
to create 4 separate augmentations.
aug = audioDataAugmenter('NumAugmentations',4, ... "AddNoiseProbability",1, ... "SNRRange",[5,10], ... "VolumeControlProbability",0, ... "TimeStretchProbability",0, ... "TimeShiftProbability",0, ... "PitchShiftProbability",0)
aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 4 TimeStretchProbability: 0 PitchShiftProbability: 0 VolumeControlProbability: 0 AddNoiseProbability: 1 SNRRange: [5 10] TimeShiftProbability: 0
Call addAugmentationMethod
with an algorithm name and function handle. Specify the algorithm name as MedianFilter
and the function handle as movmedian
with a 3-element window length. The augmentation is added to the properties of your audioDataAugmenter
object.
algorithmName = 'MedianFilter';
algorithmHandle = @(x)(movmedian(x,100));
addAugmentationMethod(aug,algorithmName,algorithmHandle)
aug
aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 4 TimeStretchProbability: 0 PitchShiftProbability: 0 VolumeControlProbability: 0 AddNoiseProbability: 1 SNRRange: [5 10] TimeShiftProbability: 0 MedianFilterProbability: 0.5000
Set the probability of applying median filtering to 80%.
aug.MedianFilterProbability = 0.8
aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 4 TimeStretchProbability: 0 PitchShiftProbability: 0 VolumeControlProbability: 0 AddNoiseProbability: 1 SNRRange: [5 10] TimeShiftProbability: 0 MedianFilterProbability: 0.8000
Call augment
on the audio to create 4 augmentations.
data = augment(aug,audioIn,fs);
You can check the parameter configuration of each augmentation using the AugmentationInfo
table variable. If median filtering was applied for an augmentation, then AugmentationInfo
lists the parameter as 'Applied'
. If median filtering was not applied for an augmentation, then AugmentationInfo
lists the parameter as 'Bypassed'
.
augmentationToInspect = 2;
data.AugmentationInfo(augmentationToInspect)
ans = struct with fields:
SNR: 9.5787
MedianFilter: 'Applied'

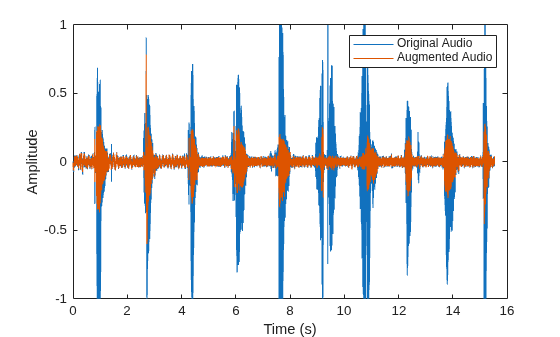

Listen to the audio you are inspecting. Plot the time-domain representation of the original and augmented signals.
augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(numel(audioIn)-1))/fs; taug = (0:(numel(augmentation)-1))/fs; plot(t,audioIn,taug,augmentation) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")
You can specify additional parameters and corresponding parameter ranges (for use when AugmentationParameterSource
is set to 'random'
) and parameter values (for use when AugmentationParameterSource
is set to 'specify'
). You must specify additional parameters, parameter ranges, and parameter values during your call to addAugmentationMethod
.
Call removeAugmentationMethod
to remove the MedianFilter
augmentation method. Call addAugmentationMethod
again, this time specifying an augmentation parameter, parameter range, and parameter value. The augmentation and parameter range is added to the properties of your audioDataAugmenter
object.
removeAugmentationMethod(aug,'MedianFilter') algorithmName = 'MedianFilter'; augmentationParameter = 'MedianFilterWindowLength'; parameterRange = [1,200]; parameterValue = 100; algorithmHandle = @(x,k)(movmedian(x,k)); addAugmentationMethod(aug,algorithmName,algorithmHandle, ... 'AugmentationParameter',augmentationParameter, ... 'ParameterRange',parameterRange, ... 'ParameterValue',parameterValue) aug
aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 4 TimeStretchProbability: 0 PitchShiftProbability: 0 VolumeControlProbability: 0 AddNoiseProbability: 1 SNRRange: [5 10] TimeShiftProbability: 0 MedianFilterProbability: 0.5000 MedianFilterWindowLengthRange: [1 200]
In the current augmentation pipeline configuration, the parameter value is not applicable. ParameterValue
is applicable when AugmetnationParameterSource
is set to 'specify'
. Set AugmentationParameterSource
to 'specify'
to enable the current parameter value.
aug.AugmentationParameterSource = 'specify'
aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'specify' ApplyTimeStretch: 1 SpeedupFactor: 0.8000 ApplyPitchShift: 1 SemitoneShift: -3 ApplyVolumeControl: 1 VolumeGain: -3 ApplyAddNoise: 1 SNR: 5 ApplyTimeShift: 1 TimeShift: 0.0050 ApplyMedianFilter: 1 MedianFilterWindowLength: 100
Set AugmentationParameterSource
to random
and then call augment
.
aug.AugmentationParameterSource = "random";
data = augment(aug,audioIn,fs);
If median filtering was applied for an augmentation, then AugmentationInfo
lists the value applied.
augmentationToInspect = 3;
data.AugmentationInfo(augmentationToInspect)
ans = struct with fields:
SNR: 8.7701
MedianFilter: 117.9847
Listen to the audio you are inspecting. Plot the time-domain representation of the original and augmented signals.
augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(numel(audioIn)-1))/fs; taug = (0:(numel(augmentation)-1))/fs; plot(t,audioIn,taug,augmentation) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")
Specify Multiple Parameters of Custom Augmentation Method
Read in an audio signal and listen to it.
[audioIn,fs] = audioread('RockDrums-44p1-stereo-11secs.mp3');
sound(audioIn,fs)
Create and audioDataAugmenter
object that outputs 5 augmentations. Set the AddNoiseProbability
to 0
.
aug = audioDataAugmenter('NumAugmentations',5,'AddNoiseProbability',0);
Add reverberation as a custom augmentation algorithm. The applyReverb
function creates a reverberator
object, updates the sample rate, pre-delay, and wet/dry mix as indicated, and then applies reverberation. To minimize computational overhead, the reverberator object is persistent. The object is reset on every call to avoid mixing the reverberation tail between audio files.
type applyReverb.m
function audioOut = applyReverb(audio,preDelay,wetDryMix,sampleRate) persistent reverbObject if isempty(reverbObject) reverbObject = reverberator; end reverbObject.SampleRate = sampleRate; reverbObject.PreDelay = preDelay; reverbObject.WetDryMix = wetDryMix; audioOut = reverbObject(audio); reset(reverbObject) end
Add applyReverb
as a custom augmentation method. To specify multiple parameters for a custom method, specify the parameters, parameter ranges, and parameter values as cell arrays with the same number of cells. Set the probability of applying reverberation to 1
.
algorithmName = 'Reverb'; algorithmHandle = @(x,preDelay,weDryMix)applyReverb(x,preDelay,weDryMix,fs); parameters = {'PreDelay','WetDryMix'}; parameterRanges = {[0,1],[0,1]}; parameterValues = {0,0.3}; addAugmentationMethod(aug,algorithmName,algorithmHandle, ... 'AugmentationParameter',parameters, ... 'ParameterRange',parameterRanges, ... 'ParameterValue',parameterValues) aug.ReverbProbability = 1
aug = audioDataAugmenter with properties: AugmentationMode: 'sequential' AugmentationParameterSource: 'random' NumAugmentations: 5 TimeStretchProbability: 0.5000 SpeedupFactorRange: [0.8000 1.2000] PitchShiftProbability: 0.5000 SemitoneShiftRange: [-2 2] VolumeControlProbability: 0.5000 VolumeGainRange: [-3 3] AddNoiseProbability: 0 TimeShiftProbability: 0.5000 TimeShiftRange: [-0.0050 0.0050] ReverbProbability: 1 PreDelayRange: [0 1] WetDryMixRange: [0 1]
Call augment
to create 5 augmentations.
data = augment(aug,audioIn,fs);
Check the configuration of each augmentation using AugmentationInfo
.
augmentationToInspect = 1;
data.AugmentationInfo(augmentationToInspect)
ans = struct with fields:
SpeedupFactor: 1
SemitoneShift: -1.4325
VolumeGain: 0
TimeShift: 0
Reverb: [0.2760 0.4984]

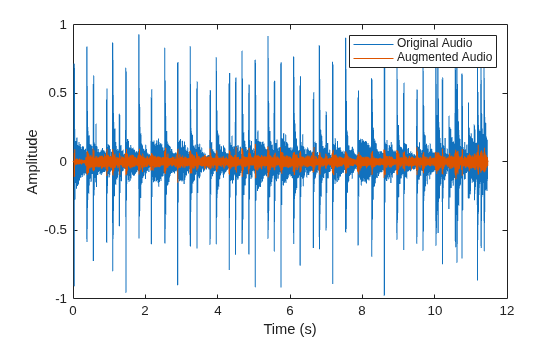

Listen to the audio you are inspecting. Plot the time-domain representation of the original and augmented signals.
augmentation = data.Audio{augmentationToInspect}; sound(augmentation,fs) t = (0:(size(audioIn,1)-1))/fs; taug = (0:(size(augmentation,1)-1))/fs; plot(t,audioIn(:,1),taug,augmentation(:,1)) legend("Original Audio","Augmented Audio") ylabel("Amplitude") xlabel("Time (s)")
Input Arguments
aug
— Audio data augmenter
audioDataAugmenter
object
audioDataAugmenter
object.
algorithmName
— Algorithm name
character vector | string
Algorithm name, specified as a character vector or string.
algorithmName
must be a unique property name on the audioDataAugmenter
, aug
.
Data Types: char
| string
algorithmHandle
— Handle to function that implements custom augmentation algorithm
function_handle
Handle to function that implements custom augmentation algorithm, specified as a
function_handle
.
Data Types: function_handle
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'AugmentationParameter,'PreDelay'
AugmentationParameter
— Augmentation parameter
character vector | string | cell array of character vectors | cell array of strings
Augmentation parameter, specified as a character vector, string, cell array of character vectors, or cell array of strings.
Use cell arrays to create multiple augmentation parameters. If you create multiple
augmentation parameters, you must also specify ParameterRange
and
ParameterValue
as cell arrays containing information for each
augmentation parameter.
Example: 'AugmentationParameter','PreDelay'
Example: 'AugmentationParameter',{'PreDelay','HighCutFrequency'}
Data Types: char
| string
ParameterRange
— Parameter range
[0,1]
(default) | two-element vector of nondecreasing values | cell array of two-element vectors of nondecreasing values
Parameter range, specified as a two-element vector of nondecreasing values (for a single parameter) or a cell array of two-element vectors of nondecreasing values (for multiple parameters).
Example: 'ParameterRange',[0,1]
Example: 'ParameterRange',{[0,1],[20,20000]}
Dependencies
To enable this property, set the AugmentationParameterSource
property of your audioDataAugmenter
object to 'random'
.
Data Types: single
| double
| cell
ParameterValue
— Parameter value
0
(default) | scalar | vector | cell array of scalars or vectors
Parameter value, specified as a scalar, vector, or cell array of scalars or vectors.
Example: 'ParameterValue',0
Example: 'ParameterValue',[0,0.5,1]
Example: 'ParameterValue',{0,20000}
Example: 'ParameterValue',{[0,0.5,1],20000}
Dependencies
To enable this property, set the AugmentationParameterSource
property of your audioDataAugmenter
to 'specify'
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Complex Number Support: Yes
Version History
Introduced in R2019b
See Also
removeAugmentationMethod
| audioDataAugmenter
| reverberator
