setExtractorParameters
Description
setExtractorParameters(
specifies parameters used to extract aFE
,featureName
,params
)featureName
.
setExtractorParameters(
returns the parameters used to extract aFE
,featureName
)featureName
to default
values.
Examples
Extract Pitch Using the LHS Method
Read in an audio signal.
[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav");
Create an audioFeatureExtractor
object to extract pitch. Set the method of pitch extraction to "LHS"
.
aFE = audioFeatureExtractor(SampleRate=fs,pitch=true); setExtractorParameters(aFE,"pitch",Method="LHS")

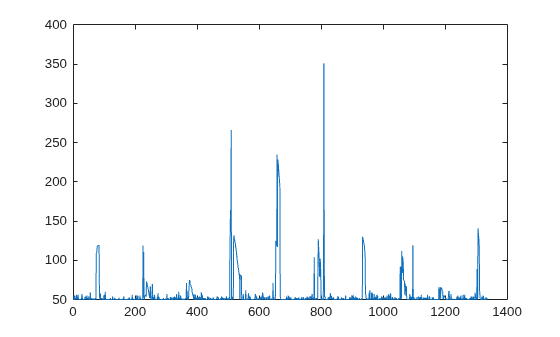

Call extract
and plot the results.
f0 = extract(aFE,audioIn); plot(f0)
Modify Spectral Rolloff Threshold and Mel Spectrum Parameters
Read in an audio signal.
[audioIn,fs] = audioread("Counting-16-44p1-mono-15secs.wav");
Create an audioFeatureExtractor
object to extract the melSpectrum
and spectralRolloffPoint
. Specify ten bands for the mel spectrum and set the threshold for the rolloff point to 50% of the total energy.
aFE = audioFeatureExtractor(SampleRate=fs,melSpectrum=true,spectralRolloffPoint=true); setExtractorParameters(aFE,"melSpectrum",NumBands=10) setExtractorParameters(aFE,"spectralRolloffPoint",Threshold=0.5)
Call extract
and plot the results.
features = extract(aFE,audioIn);
idx = info(aFE);

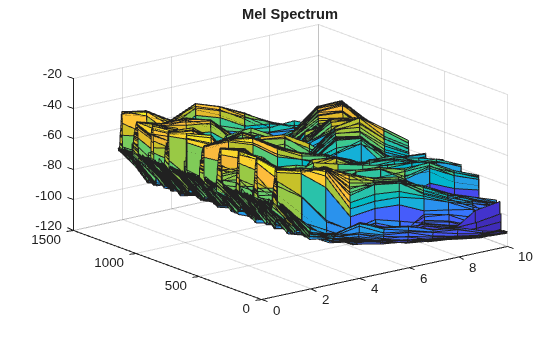

surf(10*log10(features(:,idx.melSpectrum)))
title("Mel Spectrum")

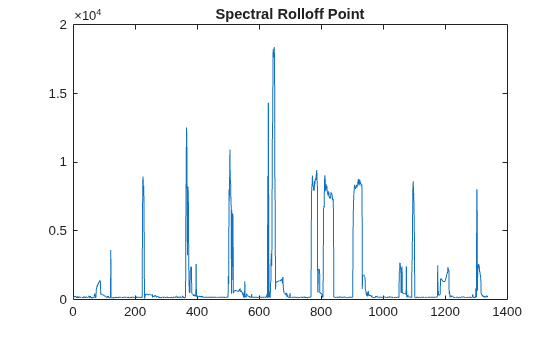

plot(features(:,idx.spectralRolloffPoint))
title("Spectral Rolloff Point")
To return individual audio feature extractors to their default values, call setExtractorParameters
without specifying any parameters to set.
setExtractorParameters(aFE,"melSpectrum") setExtractorParameters(aFE,"spectralRolloffPoint")
Call extract
and plot the results.
features = extract(aFE,audioIn);
idx = info(aFE);

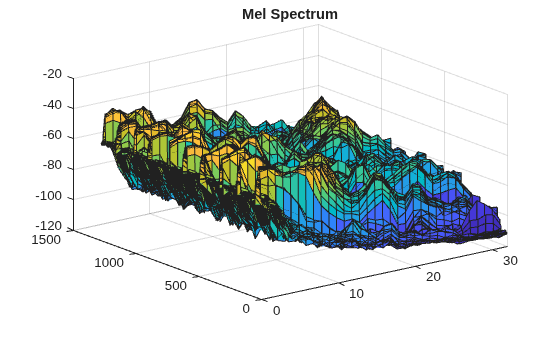

surf(10*log10(features(:,idx.melSpectrum)))
title("Mel Spectrum")
plot(features(:,idx.spectralRolloffPoint))
title("Spectral Rolloff Point")
Input Arguments
aFE
— Input object
audioFeatureExtractor
object
Input object, specified as an audioFeatureExtractor
object.
featureName
— Name of feature extractor
character array | string
Name of feature extractor, specified as a character array or string.
Data Types: char
| string
params
— Parameters to set
name-value arguments | struct
Parameters to set, specified as name-value arguments or a struct.
Version History
Introduced in R2022a
