designAuditoryFilterBank

Design auditory filter bank

Since R2019b

Syntax

filterBank = designAuditoryFilterBank(fs)

filterBank = designAuditoryFilterBank(fs,Name,Value)

[filterBank,Fc,BW] = designAuditoryFilterBank(___)

Description

filterBank = designAuditoryFilterBank(fs) returns a frequency-domain auditory filter bank, filterBank.

filterBank = designAuditoryFilterBank(fs,Name,Value) specifies options using one or more Name,Value pair arguments.

[filterBank,Fc,BW] = designAuditoryFilterBank(___) returns the center frequency and bandwidth of each filter in the filter bank. You can use this output syntax with any of the previous input syntaxes.

Examples

Create Default Auditory Filter Bank

Call designAuditoryFilterBank with a specified sample rate to design the default auditory filter bank.

fs = 44.1e3;
fb = designAuditoryFilterBank(fs);

The default filter bank consists of 32 triangular bandpass filters spaced evenly on the mel scale between 0 and fs/2 Hz.

numBands = size(fb,1)

numBands = 32

designAuditoryFilterBank is intended for frequency-domain filtering. By default, designAuditoryFilterBank assumes a 1024-point DFT and returns a half-sided frequency-domain filter bank with 513 points.

numPoints = size(fb,2)

numPoints = 513

Design Mel-Based Auditory Filter Bank

Read in audio and convert it to a one-sided power spectrum.

[audioIn,fs] = audioread("Laughter-16-8-mono-4secs.wav");

win = hamming(1024,"periodic");
noverlap = 512;
fftLength = 1024;
[S,F,t] = stft(audioIn,fs, ...
               "Window",win, ...
               "OverlapLength",noverlap, ...
               "FFTLength",fftLength, ...
               "FrequencyRange","onesided");
PowerSpectrum = S.*conj(S);

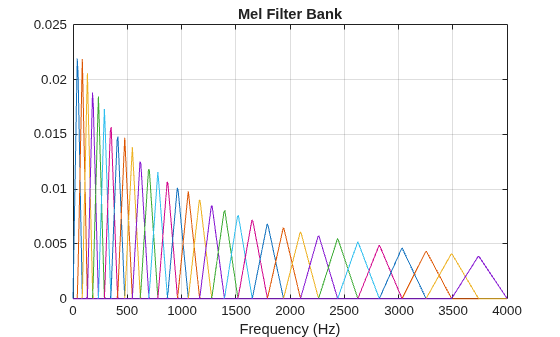

Design a mel-based auditory filter bank. Plot the filter bank.

numBands = 32;
range = [0,4000];
normalization = "bandwidth";

[fb,cf] = designAuditoryFilterBank(fs, ...
                                   "FFTLength",fftLength, ...
                                   "NumBands",numBands, ...
                                   "FrequencyRange",range, ...
                                   "Normalization",normalization);

plot(F,fb.')
grid on
title("Mel Filter Bank")
xlabel("Frequency (Hz)")

To apply frequency domain filtering, perform a matrix multiplication of the filter bank and the power spectrogram.

X = fb*PowerSpectrum;

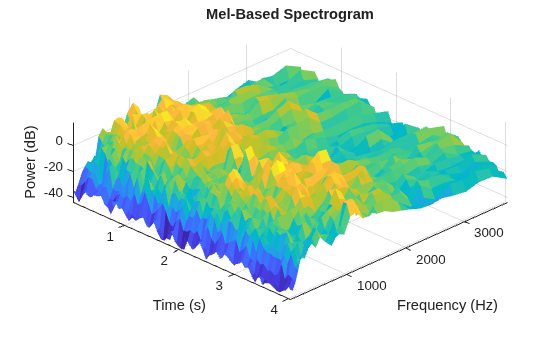

Visualize the power-per-band in dB.

XdB = 10*log10(X);

surf(t,cf,XdB,"EdgeColor","none");
xlabel("Time (s)")
ylabel("Frequency (Hz)")
zlabel("Power (dB)")
view([45,60])
title('Mel-Based Spectrogram')
axis tight

Design Bark-Based Auditory Filter Bank

Read in audio and convert it to a one-sided power spectrum.

[audioIn,fs] = audioread("RockDrums-44p1-stereo-11secs.mp3");

win = hann(round(0.03*fs),"periodic");
noverlap = round(0.02*fs);
fftLength = 2048;

[S,F,t] = stft(audioIn,fs, ...
               "Window",win, ...
               "OverlapLength",noverlap, ...
               "FFTLength",fftLength, ...
               "FrequencyRange","onesided");
PowerSpectrum = S.*conj(S);

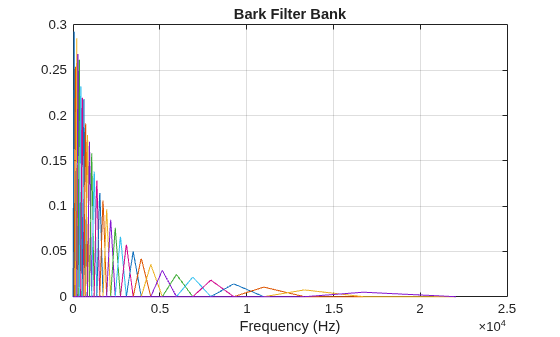

Design a Bark-based auditory filter bank. Plot the filter bank.

numBands = 32;
range = [0,22050];
normalization = "area";
designDomain = "linear";

[fb,cf] = designAuditoryFilterBank(fs, ...
    "FrequencyScale","bark", ...
    "FFTLength",fftLength, ...
    "NumBands",numBands, ...
    "FrequencyRange",range, ...
    "Normalization",normalization, ...
    "FilterBankDesignDomain",designDomain);

plot(F,fb.');
grid on
title("Bark Filter Bank")
xlabel("Frequency (Hz)")

To apply frequency domain filtering, perform a matrix multiplication of the filter bank and the left and right power spectrograms.

X = pagemtimes(fb,PowerSpectrum);

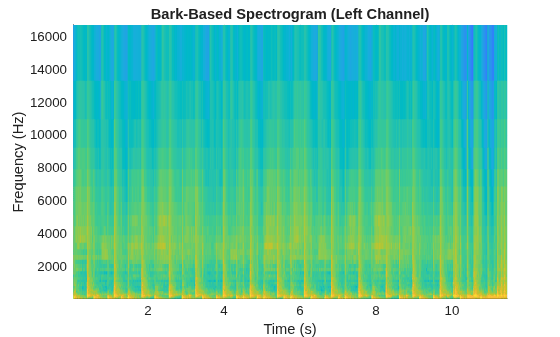

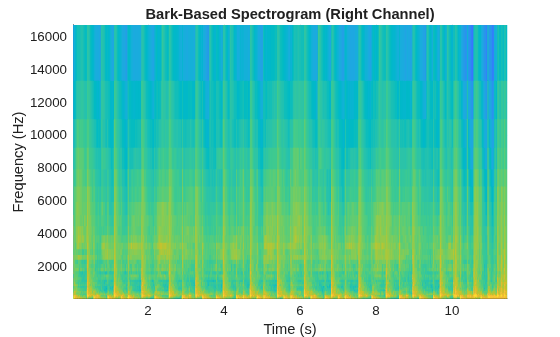

Visualize the power-per-band in dB.

XLdB = 10*log10(X(:,:,1));
XRdB = 10*log10(X(:,:,2));

surf(t,cf,XLdB,"EdgeColor","none");
xlabel("Time (s)")
ylabel("Frequency (Hz)")
view([0,90])
title("Bark-Based Spectrogram (Left Channel)")
axis tight

surf(t,cf,XRdB,"EdgeColor","none");
xlabel("Time (s)")
ylabel("Frequency (Hz)")
view([0,90])
title("Bark-Based Spectrogram (Right Channel)")
axis tight

Design ERB-Based Auditory Filter Bank

Read in audio and convert it to a one-sided power spectrum.

[audioIn,fs] = audioread("NoisySpeech-16-22p5-mono-5secs.wav");

win = hann(round(0.04*fs),"periodic");
noverlap = round(0.02*fs);
fftLength = 1024;

[S,F,t] = stft(audioIn,fs, ...
               "Window",win, ...
               "OverlapLength",noverlap, ...
               "FFTLength",fftLength, ...
               "FrequencyRange","onesided");
PowerSpectrum = S.*conj(S);

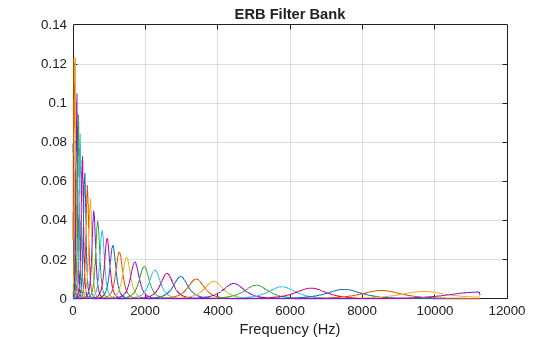

Design an ERB-based auditory filter bank. Plot the filter bank.

numBands = 32;
range = [0,11025];
normalization = "bandwidth";

[fb,cf] = designAuditoryFilterBank(fs, ...
    "FrequencyScale","erb", ...
    "FFTLength",fftLength, ...
    "NumBands",numBands, ...
    "FrequencyRange",range, ...
    "Normalization",normalization);

plot(F,fb.');
grid on
title("ERB Filter Bank")
xlabel("Frequency (Hz)")

To apply frequency-domain filtering, perform a matrix multiplication of the filter bank and the power spectrogram.

X = fb*PowerSpectrum;

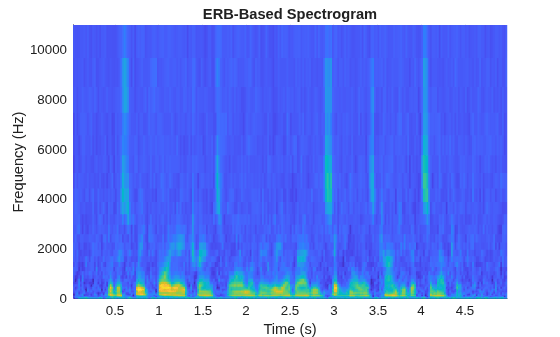

Visualize the power-per-band in dB.

XdB = 10*log10(X);
surf(t,cf,XdB,"EdgeColor","none");
xlabel("Time (s)")
ylabel("Frequency (Hz)")
view([0,90])
title("ERB-Based Spectrogram")
axis tight

Input Arguments

fs — Sample rate of filter design (Hz)

positive scalar

Sample rate of filter design in Hz, specified as a positive scalar.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: "FrequencyScale","mel"

FrequencyScale — Frequency scale

"mel" (default) | "bark" | "erb"

Frequency scale used to design the auditory filter bank, specified as the comma-separated pair consisting of 'FrequencyScale' and "mel", "bark", or "erb".

Data Types: char | string

FFTLength — Number of DFT points

1024 (default) | positive integer

Number of points used to calculate the DFT, specified as the comma-separated pair consisting of 'FFTLength' and a positive integer.

Data Types: single | double

NumBands — Number of bandpass filters

positive integer

Number of bandpass filters, specified as the comma-separated pair consisting of 'NumBands' and a positive integer. The default number of bandpass filters depends on the FrequencyScale:

• If FrequencyScale is set to "bark" or "mel", then NumBands defaults to 32.

• If FrequencyScale is set to "erb", then NumBands defaults to ceil(hz2erb(FrequencyRange(2))-hz2erb(FrequencyRange(1))).

Data Types: single | double

FrequencyRange — Frequency range over which to design auditory filter bank (Hz)

[0 fs/2] (default) | two-element row vector

Frequency range over which to design auditory filter bank in Hz, specified as the comma-separated pair consisting of 'FrequencyRange' and a two-element row vector of monotonically increasing values in the range [0, fs/2].

Data Types: single | double

Normalization — Normalize filter bank

"bandwidth" (default) | "area" | "none"

Normalization technique used on the weights of the filter bank:

• "bandwidth" –– The weights of each bandpass filter are normalized by the corresponding bandwidth of the filter.

• "area" –– The weights of each bandpass filter are normalized by the corresponding area of the bandpass filter.

• "none" –– The weights of the filters are not normalized.

Data Types: char | string

OneSided — Design one-sided or two-sided filter bank

true (default) | false

Design a one-sided or two-sided filter bank, specified as the comma-separated pair consisting of 'OneSided' and either true or false.

Data Types: logical

FilterBankDesignDomain — Domain in which filter bank is designed

"linear" (default) | "warped"

Domain in which filter bank is designed, specified as the comma-separated pair consisting of 'FilterBankDesignDomain' and either "linear" or "warped". Set the filter bank design domain to "linear" to design the bandpass filters in the linear (Hz) domain. Set the filter bank design domain to "warped" to design the bandpass filters in the warped (mel or Bark) domain.

Dependencies

This parameter only applies if FrequencyScale is set to "mel" (default) or "bark".

Data Types: char | string

Output Arguments

filterBank — Auditory filter bank

column vector | matrix

Auditory filter bank, returned as an M-by-N matrix, where M is the number of bands (NumBands), and N is the number of frequency points of a one-sided spectrum (ceil(FFTLength/2)).

Data Types: double

Fc — Center frequencies of bandpass filters (Hz)

row vector

Center frequencies of bandpass filters in Hz, returned as a row vector with NumBands elements.

Data Types: double

BW — Bandwidth of bandpass filters (Hz)

row vector

Bandwidth of bandpass filters in Hz, returned as a row vector with NumBands elements.

Data Types: double

Algorithms

The mel filter bank is designed as half-overlapped triangles equally spaced on the mel scale. [1]

The Bark filter bank is designed as half-overlapped triangles equally spaced on the Bark scale. [2]

The ERB filter bank is designed as gammatone filters [4] whose center frequencies are equally spaced on the ERB scale. [3]

References

[1] O'Shaughnessy, Douglas. Speech Communication: Human and Machine. Reading, MA: Addison-Wesley Publishing Company, 1987.

[2] Traunmüller, Hartmut. "Analytical Expressions for the Tonotopic Sensory Scale." Journal of the Acoustical Society of America. Vol. 88, Issue 1, 1990, pp. 97–100.

[3] Glasberg, Brian R., and Brian C. J. Moore. "Derivation of Auditory Filter Shapes from Notched-Noise Data." Hearing Research. Vol. 47, Issues 1–2, 1990, pp. 103–138.

[4] Slaney, Malcolm. "An Efficient Implementation of the Patterson-Holdsworth Auditory Filter Bank." Apple Computer Technical Report 35, 1993.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2019b

R2020b: designAuditoryFilterBank scaling changed for ERB filter banks

The half-sided ERB filter bank returned from designAuditoryFilterBank is now scaled by 2. This change provides consistent results when applying one-sided or two-sided filtering, without requiring multiplications in the processing loop.
