Simple Acoustic Enclosure

R2026b

Simple acoustic enclosure model

Since R2026b

•

Simple Acoustic Enclosure block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Simscape Acoustics / Applications / Cavities and Enclosures

Description

Add-On Required: This feature requires the Simscape Acoustics add-on.

The Simple Acoustic Enclosure block models a simple enclosure in acoustic systems. The block assumes the dimensions of the enclosure are smaller than the acoustic wavelength at any frequency included in the analysis. The block represents a pure acoustic compliance and neglects any losses that might exist in the enclosure. The compliance value of the block is

$$C=\frac{V_0}{\gamma P_0},$$

where:

• V₀ is the physical volume of the enclosure.

• γ is the ratio of specific heats of the medium.

• P₀ is the ambient pressure of the medium.

The input of the enclosure is the conserving port +. An internal negative conserving port is connected to an Acoustic Reference block.

Examples

New

Loudspeaker Enclosure Modeling with Simscape Acoustics

Simulate different types of loudspeakers using Simscape™ Acoustics.

• Since R2026b
• Open Script

New

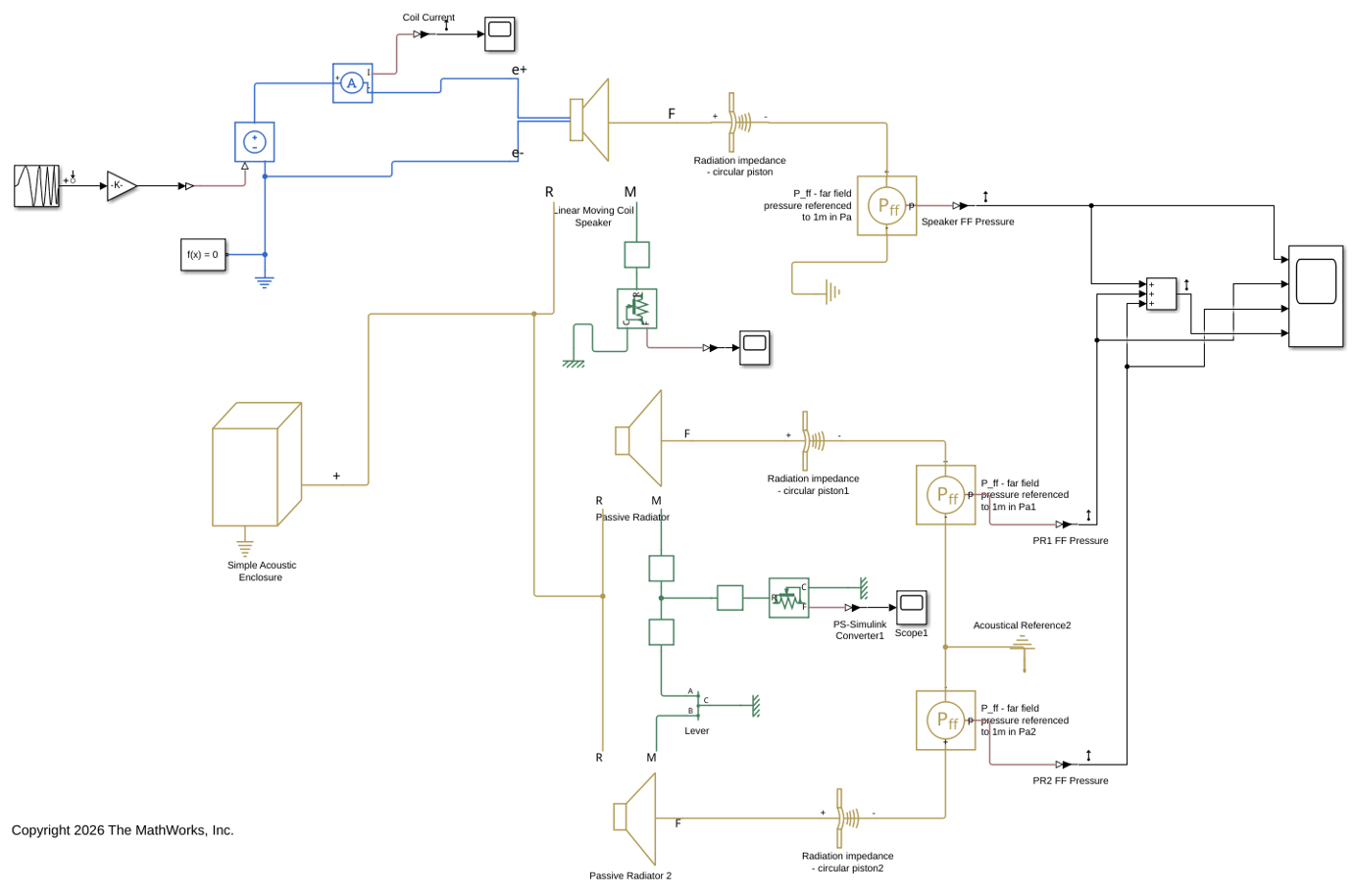

Dual Passive Radiator Subwoofer Modeling with Simscape Acoustics

Simulate a dual passive radiator subwoofer in Simscape Acoustics.

• Since R2026b
• Open Script

Ports

Conserving

+ — Positive terminal

acoustic

Acoustic conserving port associated with the positive terminal. This port represents the input to the enclosure.

Parameters

Enclosure volume — Volume of enclosure

1 m^3 (default) | positive scalar

Volume of the enclosure in meters cubed.

Version History

Introduced in R2026b
