Generate Optimal Current Controller Calibration Tables for Permanent Magnet Synchronous Motors
Use Model-Based Calibration Toolbox™ and Powertrain Blockset™ to generate optimized current controller and flux parameters for permanent magnet synchronous motor (PMSM) blocks. Follow these steps.
Use the Model-Based Calibration Toolbox to generate optimized current controller tables for flux-based motor controllers. Based on nonlinear motor flux data, the calibration tables optimize:
You can use current controller parameters for the Flux-Based PM Controller block.
|Generate Feed-Forward Flux Parameters|
Use MATLAB® scripts available with Powertrain Blockset to load flux motor data, visualize the flux surface, and create plots of flux as a function of current.
You can use motor parameters for the Flux-Based PM Controller block.
Use MATLAB scripts available with Powertrain Blockset to load flux motor data, invert the flux, and create plots of current as a function of flux.
You can use flux-based PMSM parameters for the Flux-Based PMSM block.

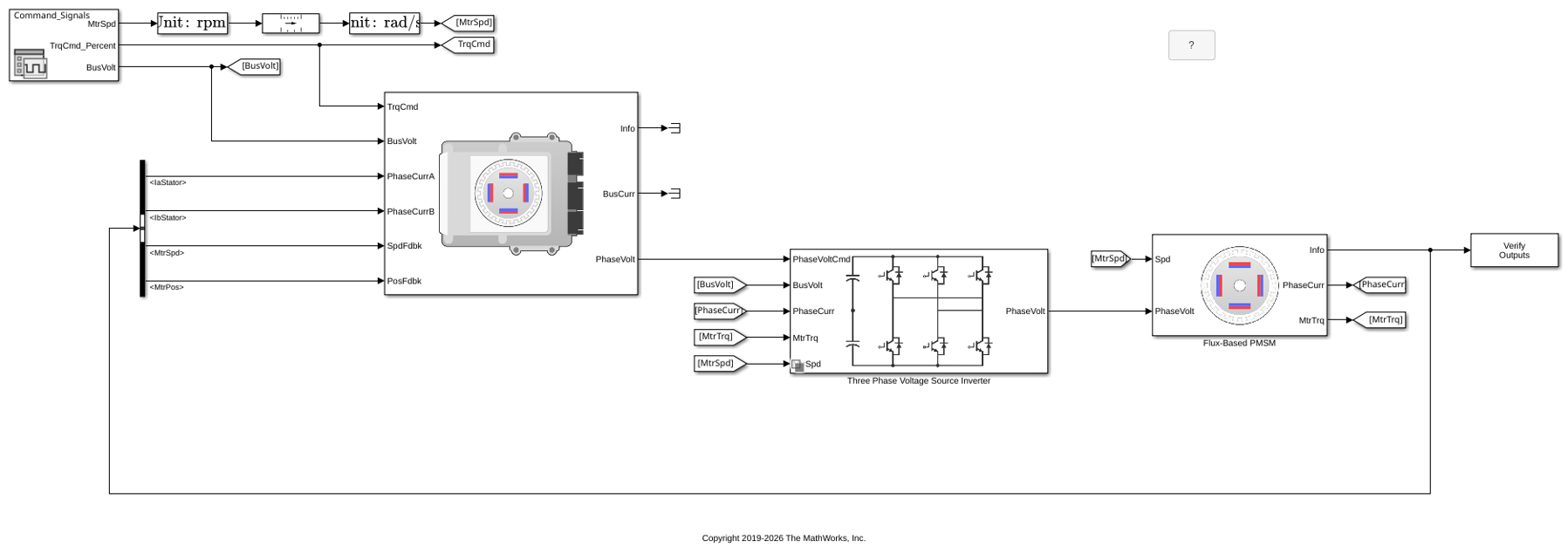

Optimized Flux-Based PM Controller and Flux-Based PMSM Blocks
This example provides a model with optimized Flux-Based PM Controller and Flux-Based PMSM block parameters. To generate the parameters, follow the workflow steps in Generate Optimal Current Controller Calibration Tables for Permanent Magnet Synchronous Motors.
 Hu, Dakai, Yazan Alsmadi, and Longya Xu. “High-Fidelity Nonlinear IPM Modeling Based on Measured Stator Winding Flux Linkage.” IEEE® Transactions on Industry Applications 51, no. 4 (July/August 2015).
 Chen, Xiao, Jiabin Wang, Bhaskar Sen, Panagiotis Lasari, and Tianfu Sun. “A High-Fidelity and Computationally Efficient Model for Interior Permanent-Magnet Machines Considering the Magnetic Saturation, Spatial Harmonics, and Iron Loss Effect.” IEEE Transactions on Industrial Electronics 62, no. 7 (July 2015).
 Ottosson, J., and M. Alakula. “A Compact Field Awakening Controller Implementation.” International Symposium on Power Electronics, Electrical Drives, Automation and Motion, July 2006.
