Sample Rate Offset

R2026b

Apply sample rate offset to input signal

Since R2022b

•

Sample Rate Offset block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Communications Toolbox / RF Impairments and Components

Description

The Sample Rate Offset block applies a sample rate offset to the input signal. Applying a sample rate offset is equivalent to changing the ADC clock rate.

Examples

Apply Sample Rate Offset to 16-QAM Signal

Apply a sample rate offset to a 16-QAM modulated signal and compare the reference constellation with the signal with a sample rate offset.

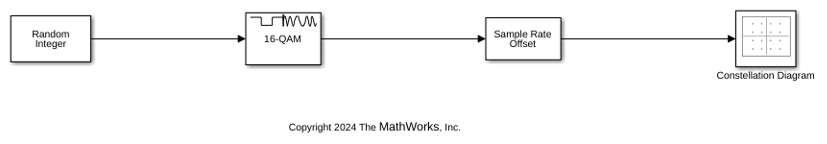

Open the doc_apply_sample_rate_offset model. The model generates random data using the Random Integer Generator block. To modulate the random data, the model uses the Rectangular QAM Modulator Baseband block with a modulation order of 16 and a constellation order set to Gray. Subsequently, the Sample Rate Offset block applies a sample rate offset of 50 parts per million to the modulated signal. The model displays the resulting constellation through the Constellation Diagram block.

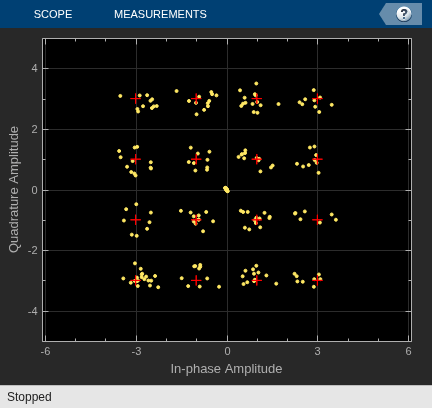

Run the model. The constellation diagram shows the reference constellation and the signal that has a sample rate offset.

Ports

Input

In — Input signal

scalar | vector | matrix

Input signal, specified as a scalar, an N_S element column vector, or an N_S-by-N_C matrix. N_S is the number of time samples. N_C is the number of channels. For matrix input signals, the sample rate offset is applied independently to each column.

Data Types: double | single
Complex Number Support: Yes

Output

Out — Output signal

scalar | vector | matrix

Output signal, returned as a scalar, vector, or matrix. This output is the same data type as the input signal.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Sample rate offset — Sample rate offset

10 (default) | scalar

Sample rate offset in parts per million (ppm), specified as a scalar greater than –1e6.

Simulate using — Type of simulation to run

Interpreted execution (default) | Code generation

Type of simulation to run, specified as Interpreted execution or Code generation.

• Interpreted execution — Simulate the model by using the MATLAB^® interpreter. This option requires less startup time, but the speed of subsequent simulations is slower than with the Code generation option. In this mode, you can debug the source code of the block.

• Code generation — Simulate the model by using generated C code. The first time you run a simulation, Simulink generates C code for the block. The model reuses the C code for subsequent simulations unless the model changes. This option requires additional startup time, but the speed of the subsequent simulations is faster than with the Interpreted execution option.

For more information, see Interpreted Execution vs. Code Generation (Simulink).

Block Characteristics

Data Types	double | single
Multidimensional Signals	no
Variable-Size Signals	yes

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"commrflib2/Sample Rate Offset"

Example: add_block("commrflib2/Sample Rate Offset","myModel/myBlock",MakeNameUnique="on")
