Equalize BSPK Signal

Equalize a BPSK signal using a linear equalizer with an least mean square (LMS) algorithm.

Generate random binary data and apply BPSK modulation.

data = randi([0 1],1000,1);
modData = pskmod(data,2);

Apply two-tap static fading to the modulated signal.

rxSig = conv(modData,[0.5 0.05]);

Create an LMS adaptive algorithm object with a step size of 0.06.

alg = lms(0.06);
Warning: LMS will be removed in a future release. Use comm.LinearEqualizer or comm.DecisionFeedbackEqualizer instead. See <a href="matlab:helpview(fullfile(docroot, 'toolbox','comm', 'comm.map'), 'REPLACE_udd_equalizer')">Communications Toolbox Release Notes</a> for more information.

Create a linear equalizer object having 8 taps using the previously created algorithm object. Set the reference tap index to 4.

eqlms = lineareq(8,alg);
Warning: LINEAREQ will be removed in a future release. Use comm.LinearEqualizer instead. See <a href="matlab:helpview(fullfile(docroot, 'toolbox','comm', 'comm.map'), 'REPLACE_udd_equalizer')">Communications Toolbox Release Notes</a> for more information.
eqlms.RefTap = 4;

Equalize the received signal, rxSig, while using the first 200 data bits as a training sequence.

trSeq = data(1:200);
[eqSig,~,e] = equalize(eqlms,rxSig,trSeq);
Warning: EQUALIZE will be removed in a future release. Use comm.LinearEqualizer or comm.DecisionFeedbackEqualizer instead. See <a href="matlab:helpview(fullfile(docroot, 'toolbox','comm', 'comm.map'), 'REPLACE_udd_equalizer')">Communications Toolbox Release Notes</a> for more information.

Filter and plot the power of the received (nonequalized) signal. The magnitude of the signal has been attenuated by the channel.

rxSigPwr = filter(0.1*ones(10,1),1,abs(rxSig)).^2;
plot(rxSigPwr)
title('Received Signal')
xlabel('Bits')
ylabel('Power (W)')

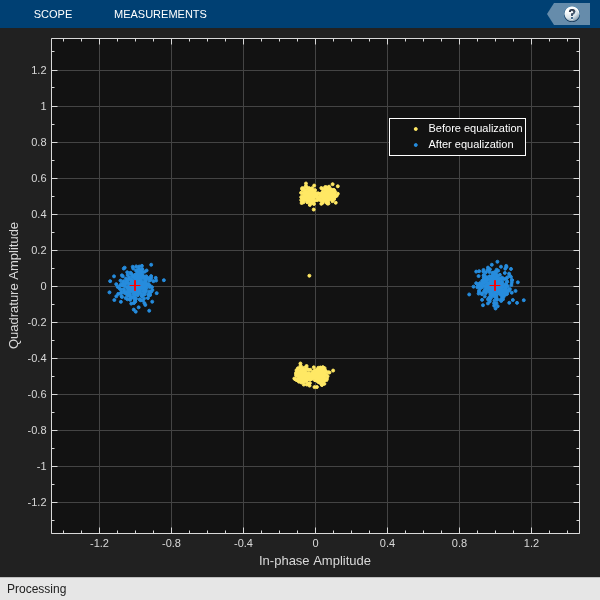

Figure contains an axes. The axes with title Received Signal contains an object of type line.

Plot the equalized signal. The signal reaches the intended power level of 1 W.

eqSigPwr = filter(0.1*ones(10,1),1,abs(eqSig)).^2;
plot(eqSigPwr)
title('Equalized Signal')
xlabel('Bits')
ylabel('Power (W)')

Figure contains an axes. The axes with title Equalized Signal contains an object of type line.

Plot the magnitude of the error estimate, e. The error decreases until it is nearly zero after 400 bits.

plot(abs(e))
title('Error Estimate')
xlabel('Bits')
ylabel('Amplitude (V)')

Figure contains an axes. The axes with title Error Estimate contains an object of type line.
