## Plot Signal Constellations

### Create 16-PSK Constellation Diagram

Show reference constellation plots for 16-PSK modulation of Gray-coded and binary-coded symbol mapping by setting `PlotConstellation=true` when using the modulation function. Input bit signals and compare the bit patterns between the two constellations. The bit patterns in adjacent constellation points differ by only one bit for the Gray-coded symbol mapping but not for the binary-coded symbol mapping.

Set the parameters for 16-PSK modulation with no phase offset

```M = 16; % Modulation alphabet size bps = log2(M); % Bits per symbol phOffset = 0; % Phase offset bitdata = int2bit(0,bps); % Generate one symbol to modulate```

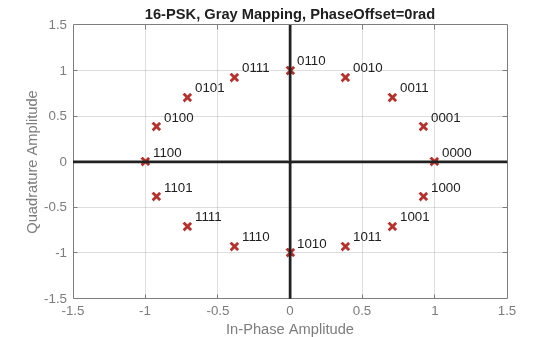

Plot the reference constellation for Gray-coded symbols mapping. For the Gray-coded symbol mapping, the bit patterns in all adjacent constellation points differ by only one bit.

`pskmod(bitdata,M,phOffset,InputType="bit",PlotConstellation=true);`

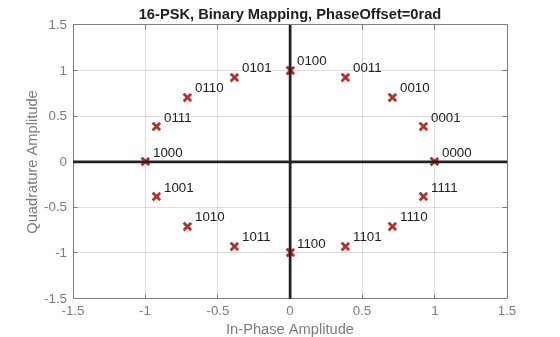

Plot the reference constellation for binary-coded symbols mapping. For the binary-coded symbol mapping, the bit patterns in adjacent constellation points do not always differ by only one bit.

`pskmod(bitdata,M,phOffset,"bin",InputType="bit",PlotConstellation=true);`

### Create 32-QAM Constellation Diagram

Plot a 32-QAM reference constellation by using the constellation plot capability of the modulation function, the `comm.ConstellationDiagram` System object™, and the `scatterplot` function.

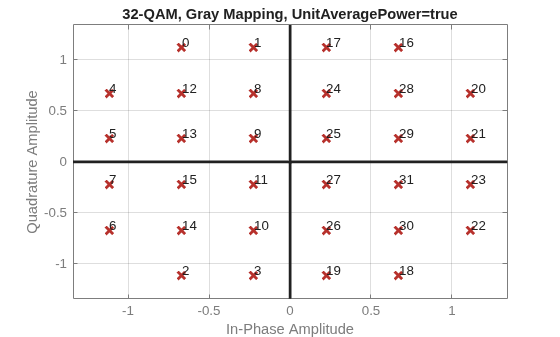

Use the `qammod` function to generate the 32-QAM symbols with Gray-code symbol ordering and plot the reference constellation.

```M = 32; qammod(0,M,UnitAveragePower=true,PlotConstellation=true);```

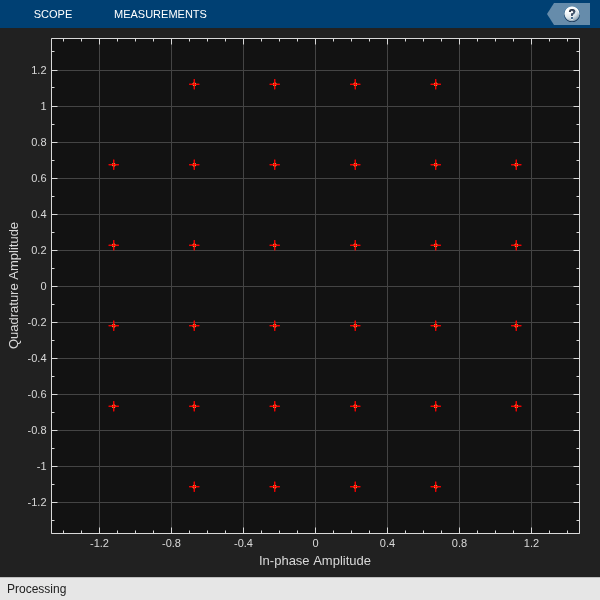

Create a constellation diagram object with the reference constellation defined as 32-QAM. Plot the 32-QAM signal of reference constellation symbols.

```refSym = [0:M-1]'; refC = qammod(refSym,M,UnitAveragePower=true); cd = comm.ConstellationDiagram(ReferenceConstellation=refC); cd(refC)```

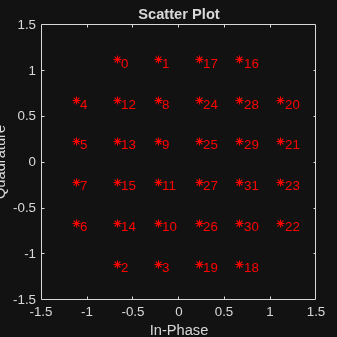

Plot the reference constellation with the scatterplot function and label the order of the constellation symbols.

```scatterplot(refC,1,0,'r*'); for k = 1:M text(real(refC(k))+0.04,imag(refC(k))-0.04, ... num2str(refSym(k)),Color='r'); end axis([-1.5 1.5 -1.5 1.5])```

### Create 8-QAM Gray Coded Constellation Diagram

Use the qammod function to generate the 8-QAM symbols with Gray symbol ordering. Note that Gray coding is the default symbol mapping for the `qammod` function.

```M = 8; data = 0:M-1; sym = qammod(data,M);```

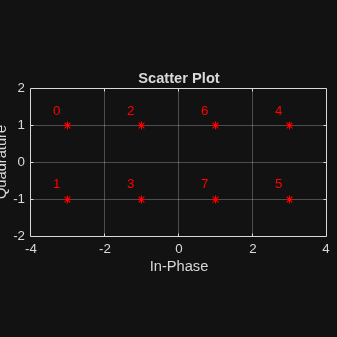

Plot the constellation. Label the order of the constellation symbols.

```scatterplot(sym,1,0,'r*'); grid on for k = 1:M text(real(sym(k))-0.4,imag(sym(k))+0.4,num2str(data(k)),Color='r'); end axis([-4 4 -2 2])```

### Plot a Triangular Constellation for QAM

Plot a customized QAM reference constellation by using a constellation diagram System object™.

Define the constellation.

```inphase = [1/2 -1/2 1 0 3/2 -3/2 1 -1]; quadr = [1 1 0 2 1 1 2 2]; inphase = [inphase; -inphase]; inphase = inphase(:); quadr = [quadr; -quadr]; quadr = quadr(:); refConst = inphase + 1i*quadr;```

Construct a constellation diagram object using name-value pairs to specify the title, the axes limits, the reference marker type, and the reference marker color.

```constDiagram = comm.ConstellationDiagram( ... Title='Customized Constellation for QAM', ... XLimits=[-3 3], ... YLimits=[-3 3], ... ReferenceConstellation=refConst, ... ReferenceMarker='*', ... ReferenceColor=[0 1 0]);```

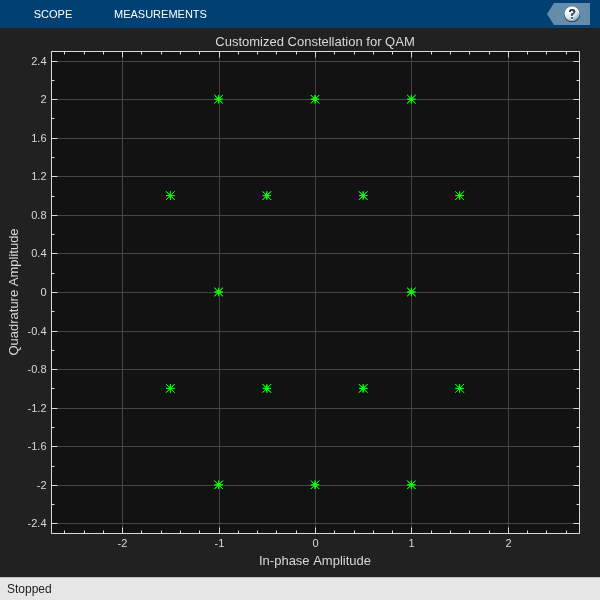

Plot the customized constellation.

```constDiagram(refConst) release(constDiagram)```
