isproper

R2026b

Determine if dynamic system model is proper

collapse all in page

Syntax

B = isproper(sys)
B = isproper(sys,"elem")
[B,sysr,info] = isproper(sys)
[B,sysr,info] = isproper(sys,info)

Description

B = isproper(sys) returns a logical value of 1 (true) if the dynamic system model sys is proper and a logical value of 0 (false) otherwise.

A proper model has relative degree ≤ 0 and is causal. SISO transfer functions and zero-pole-gain models are proper if the degree of their numerator is less than or equal to the degree of their denominator (in other words, if they have at least as many poles as zeros). MIMO transfer functions are proper if all their SISO entries are proper. Regular state-space models (state-space models having no E matrix) are always proper. A descriptor state-space model that has an invertible E matrix is always proper. A descriptor state-space model having a singular (non-invertible) E matrix is proper if the model has at least as many poles as zeros.

If sys is a model array, then B is 1 if all models in the array are proper.

B = isproper(sys,"elem") checks each model in a model array sys and returns a logical array of the same size as sys. The logical array indicates which models in sys are proper. The "elem" argument has no effect if dsys is a single model instead of a model array.

[B,sysr,info] = isproper(sys) takes a single model sys and also returns the equivalent model sysr. If sys is not proper, sysr = sys. If sys is a proper descriptor state-space model with a non-invertible E matrix, sysr has fewer states (reduced order) and a non-singular E matrix. The info structure contains projection matrices that reflect the transformation. For more information on projector matrices, see Spectral Projector Matrices. For more information on info, see dss2ss and sminreal.

[B,sysr,info] = isproper(sys,info) also takes an info matrix or structure containing information to propagate through the transformation. The info structure returned as last output contains updated initial conditions, and updated projection matrices that reflect the transformation.

Examples

collapse all

Open Live Script

Create a SISO continuous-time transfer function, H1=s.

H1 = tf([1 0],1);

Check whether H1 is proper.

B1 = isproper(H1)
B1 = logical
   0

SISO transfer functions are proper if the degree of their numerator is less than or equal to the degree of their denominator. That is, if the transfer function has at least as many poles as zeros. Since H1 has one zero and no poles, the isproper command returns 0.

Now create a transfer function with one pole and one zero, H2=s/(s+1).

H2 = tf([1 0],[1 1]);

Check whether H2 is proper.

B2 = isproper(H2)
B2 = logical
   1

Since H2 has equal number of poles and zeros, isproper returns 1.

Open Live Script

Combining state-space models sometimes yields results that include more states than necessary. Use isproper to compute an equivalent lower-order model.

H1 = ss(tf([1 1],[1 2 5]));
H2 = ss(tf([1 7],[1]));
H = H1*H2;
size(H)
State-space model with 1 outputs, 1 inputs, and 4 states.

H is proper and reducible. isproper returns the reduced model.

[isprop,Hr] = isproper(H);
size(Hr)
State-space model with 1 outputs, 1 inputs, and 2 states.

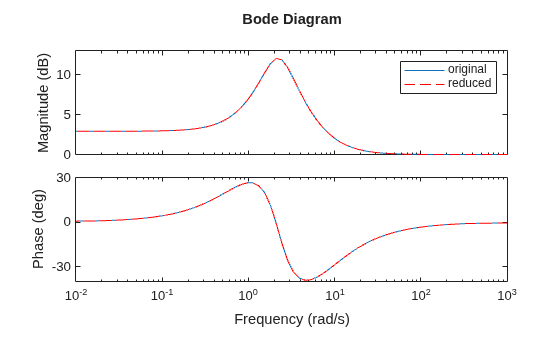

H and Hr are equivalent, as a Bode plot demonstrates.

bodeplot(H,Hr,'r--')
legend('original','reduced')

MATLAB figure

References

[1] Varga, Andràs. "Computation of irreducible generalized state-space realizations." Kybernetika 26.2 (1990): 89-106.

Version History

Introduced before R2006a
