## Evaluate a Surface Fit

This example shows how to work with a surface fit.

### Load Data and Fit a Polynomial Surface

```load franke; surffit = fit([x,y],z,'poly23','normalize','on')```
``` Linear model Poly23: surffit(x,y) = p00 + p10*x + p01*y + p20*x^2 + p11*x*y + p02*y^2 + p21*x^2*y + p12*x*y^2 + p03*y^3 where x is normalized by mean 1982 and std 868.6 and where y is normalized by mean 0.4972 and std 0.2897 Coefficients (with 95% confidence bounds): p00 = 0.4253 (0.3928, 0.4578) p10 = -0.106 (-0.1322, -0.07974) p01 = -0.4299 (-0.4775, -0.3822) p20 = 0.02104 (0.001457, 0.04062) p11 = 0.07153 (0.05409, 0.08898) p02 = -0.03084 (-0.05039, -0.01129) p21 = 0.02091 (0.001372, 0.04044) p12 = -0.0321 (-0.05164, -0.01255) p03 = 0.1216 (0.09929, 0.1439) ```

The output displays the fitted model equation, the fitted coefficients, and the confidence bounds for the fitted coefficients.

### Plot the Fit, Data, Residuals, and Prediction Bounds

`plot(surffit,[x,y],z)` Plot the residuals fit.

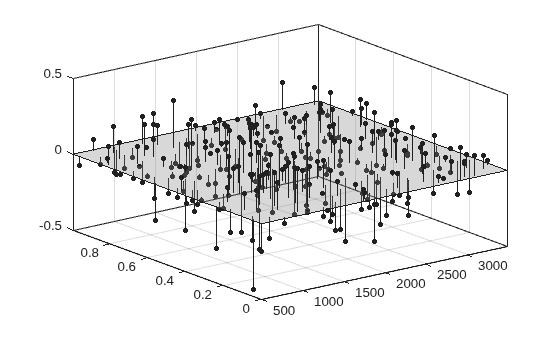

`plot(surffit,[x,y],z,'Style','Residuals')` Plot prediction bounds on the fit.

`plot(surffit,[x,y],z,'Style','predfunc')` ### Evaluate the Fit at a Specified Point

Evaluate the fit at a specific point by specifying a value for `x` and `y` , using this form: `z = fittedmodel(x,y)`.

`surffit(1000,0.5)`
```ans = 0.5673 ```

### Evaluate the Fit Values at Many Points

```xi = [500;1000;1200]; yi = [0.7;0.6;0.5]; surffit(xi,yi)```
```ans = 3×1 0.3771 0.4064 0.5331 ```

Get prediction bounds on those values.

`[ci, zi] = predint(surffit,[xi,yi])`
```ci = 3×2 0.0713 0.6829 0.1058 0.7069 0.2333 0.8330 ```
```zi = 3×1 0.3771 0.4064 0.5331 ```

### Get the Model Equation

Enter the fit name to display the model equation, fitted coefficients, and confidence bounds for the fitted coefficients.

`surffit`
``` Linear model Poly23: surffit(x,y) = p00 + p10*x + p01*y + p20*x^2 + p11*x*y + p02*y^2 + p21*x^2*y + p12*x*y^2 + p03*y^3 where x is normalized by mean 1982 and std 868.6 and where y is normalized by mean 0.4972 and std 0.2897 Coefficients (with 95% confidence bounds): p00 = 0.4253 (0.3928, 0.4578) p10 = -0.106 (-0.1322, -0.07974) p01 = -0.4299 (-0.4775, -0.3822) p20 = 0.02104 (0.001457, 0.04062) p11 = 0.07153 (0.05409, 0.08898) p02 = -0.03084 (-0.05039, -0.01129) p21 = 0.02091 (0.001372, 0.04044) p12 = -0.0321 (-0.05164, -0.01255) p03 = 0.1216 (0.09929, 0.1439) ```

To get only the model equation, use `formula`.

`formula(surffit)`
```ans = 'p00 + p10*x + p01*y + p20*x^2 + p11*x*y + p02*y^2 + p21*x^2*y + p12*x*y^2 + p03*y^3' ```

### Get Coefficient Names and Values

Specify a coefficient by name.

`p00 = surffit.p00`
```p00 = 0.4253 ```
`p03 = surffit.p03`
```p03 = 0.1216 ```

Get all the coefficient names. Look at the fit equation (for example, `f(x,y) = p00 + p10*x...`) to see the model terms for each coefficient.

`coeffnames(surffit)`
```ans = 9x1 cell array {'p00'} {'p10'} {'p01'} {'p20'} {'p11'} {'p02'} {'p21'} {'p12'} {'p03'} ```

Get all the coefficient values.

`coeffvalues(surffit)`
```ans = 1×9 0.4253 -0.1060 -0.4299 0.0210 0.0715 -0.0308 0.0209 -0.0321 0.1216 ```

### Get Confidence Bounds on the Coefficients

Use confidence bounds on coefficients to help you evaluate and compare fits. The confidence bounds on the coefficients determine their accuracy. Bounds that are far apart indicate uncertainty. If the bounds cross zero for linear coefficients, this means you cannot be sure that these coefficients differ from zero. If some model terms have coefficients of zero, then they are not helping with the fit.

`confint(surffit)`
```ans = 2×9 0.3928 -0.1322 -0.4775 0.0015 0.0541 -0.0504 0.0014 -0.0516 0.0993 0.4578 -0.0797 -0.3822 0.0406 0.0890 -0.0113 0.0404 -0.0126 0.1439 ```

### Find Methods

List every method that you can use with the fit.

`methods(surffit)`
```Methods for class sfit: argnames dependnames indepnames predint sfit category differentiate islinear probnames type coeffnames feval numargs probvalues coeffvalues fitoptions numcoeffs quad2d confint formula plot setoptions ```

Use the `help` command to find out how to use a fit method.

`help sfit/quad2d`
``` QUAD2D Numerically integrate a surface fit object. Q = QUAD2D(FO, A, B, C, D) approximates the integral of the surface fit object FO over the planar region A <= x <= B and C(x) <= y <= D(x). C and D may each be a scalar, a function handle or a curve fit (CFIT) object. [Q,ERRBND] = QUAD2D(...) also returns an approximate upper bound on the absolute error, ERRBND. [Q,ERRBND] = QUAD2D(FUN,A,B,C,D,PARAM1,VAL1,PARAM2,VAL2,...) performs the integration with specified values of optional parameters. See QUAD2D for details of the upper bound and the optional parameters. See also: QUAD2D, FIT, SFIT, CFIT. ```
