Multichannel Audio Input and Output

Acquire multichannel audio data and generate signals with Windows^® sound cards

Before you use audio channels, see Supported Hardware.

To learn how to create a session and acquire or generate multichannel audio, see the Multichannel Audio Input and Output Workflow .

Functions

`addAudioInputChannel`	Add audio input channel to session
`addAudioOutputChannel`	Add audio output channel to session
`startForeground`	Start foreground operations
`startBackground`	Start background operations

`removeChannel`	Remove channel from session object
`stop`	Stop background operation
`wait`	Block MATLAB until background operation completes

Properties

`Range`	Specify channel measurement range
`Name`	Specify descriptive name for the channel
`ID`	ID of channel in session
`Device`	Channel device information
`MeasurementType`	Channel measurement type

Topics

Multichannel Audio Input and Output

Acquire and generate audio signals using one or more device channels

Featured Examples

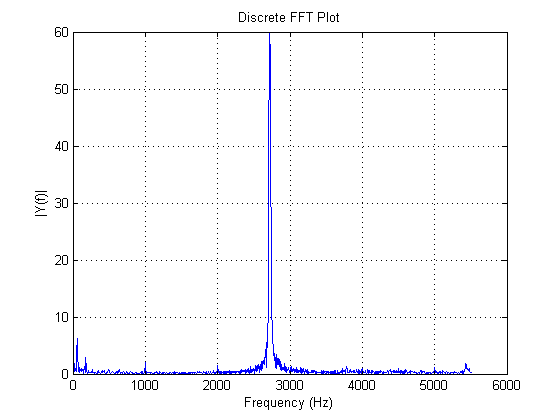

Acquire Continuous Audio Data

Set up a continuous audio acquisition. This example uses a two-channel microphone.

Open Script

Generate Audio Signals

Generate audio signals using a Session. This example uses, but does not require, a 5.1 channel sound system.

Open Script

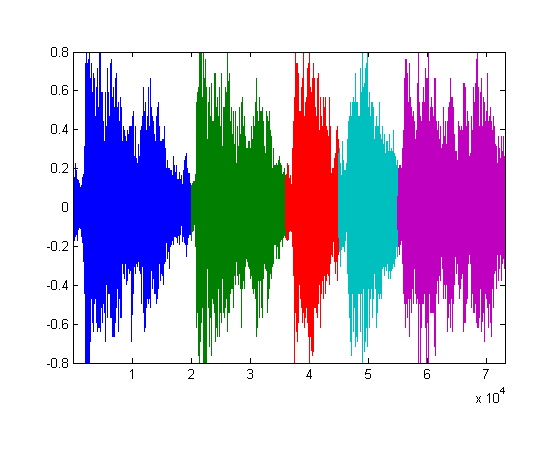

Generating Multichannel-Audio

Set up continuous audio generation using multiple audio channels in a session. The signal, a sample of Handel's "Hallelujah Chorus" is broken up into contiguous segments and played back in two parts. The first part of the example plays each segment on a single speaker and a sub-woofer. The second part plays each segment on a different set of speakers (a choir of voices).

Open Script
