view

Class: Autoencoder

View autoencoder

expand all in page

Syntax

view(autoenc)

Description

example

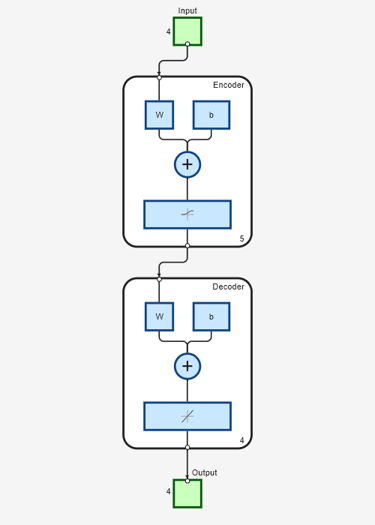

view(autoenc) returns a diagram of the autoencoder, autoenc.

Input Arguments

expand all

`autoenc` — Trained autoencoder
`Autoencoder` object

Trained autoencoder, returned as an object of the Autoencoder class.

Examples

expand all

View Autoencoder

Open Script

Load the training data.

X = iris_dataset;

Train an autoencoder with a hidden layer of size 5 and a linear transfer function for the decoder. Set the L2 weight regularizer to 0.001, sparsity regularizer to 4 and sparsity proportion to 0.05.

hiddenSize = 5;
autoenc = trainAutoencoder(X, hiddenSize, ...
    'L2WeightRegularization',0.001, ...
    'SparsityRegularization',4, ...
    'SparsityProportion',0.05, ...
    'DecoderTransferFunction','purelin');

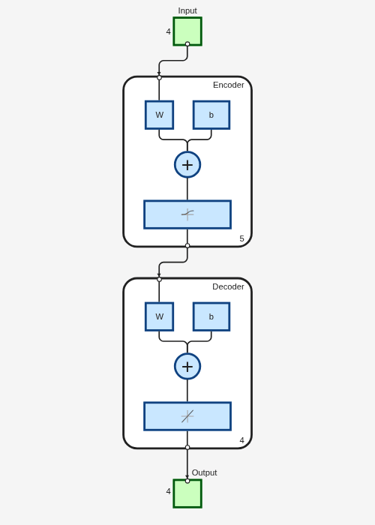

View the autoencoder.
