Construct polynomial sample-rate converter (POLYSRC) filter designer


d = fdesign.polysrc(l,m)
d = fdesign.polysrc(l,m,'Fractional Delay','Np',Np)
d = fdesign.polysrc(...,Fs)


d = fdesign.polysrc(l,m) constructs a polynomial sample-rate converter filter designer D with an interpolation factor L and a decimation factor M. L defaults to 3. M defaults to 2. L and M can be arbitrary positive numbers.

d = fdesign.polysrc(l,m,'Fractional Delay','Np',Np) initializes the filter designer specification with Np and sets the polynomial order to the value Np. If omitted Np defaults to 3.

d = fdesign.polysrc(...,Fs) specifies the sampling frequency (in Hz).


collapse all

This example shows how to design sample-rate converter that uses a 3rd order Lagrange interpolation filter to convert from 44.1kHz to 48kHz.

[L,M] = rat(48/44.1);
f = fdesign.polysrc(L,M,'Fractional Delay','Np',3);
Hm = design(f,'lagrange');

Original sampling frequency

Fs = 44.1e3;

9408 samples, 0.213 seconds long

n = 0:9407;

Original signal, sinusoid at 1kHz

x  = sin(2*pi*1e3/Fs*n);

10241 samples, still 0.213 seconds

y = filter(Hm,x);

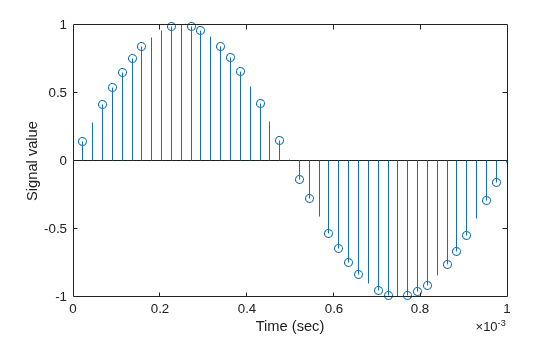

Plot original sampled at 44.1kHz

hold on

Figure contains an axes object. The axes object contains an object of type stem.

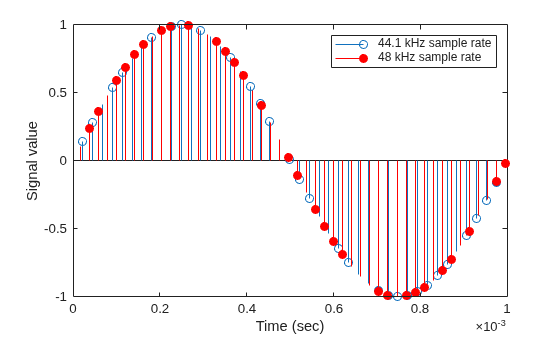

Plot fractionally interpolated signal (48kHz) in red

xlabel('Time (sec)');ylabel('Signal value')
legend('44.1 kHz sample rate','48 kHz sample rate')

Figure contains an axes object. The axes object contains 2 objects of type stem. These objects represent 44.1 kHz sample rate, 48 kHz sample rate.

Version History

Introduced in R2011a
