Variant Signal Dimensions

Generate and manage code for variations in signal dimensions of a model

Use symbolic dimensions to represent signal dimensions in your model for blocks and data objects. By using symbolic dimensions, you can simulate various sets of dimension choices without having to alter your model for each set. These symbols propagate throughout the model during simulation, and are incorporated into the code generated. For more information, see Create a Model with Symbolic Dimensions.

When you use symbolic dimensions, the dimension of the signals are not fixed at design time. Instead, they are resolved during simulation, allowing the model to adapt to different signal dimensions. The generated code includes these symbols as preprocessor conditionals, making the code flexible and able to work with different dimensions without needing to regenerate the code. For more information on signal dimensions, see Signal Dimensions.

Topics

Featured Examples

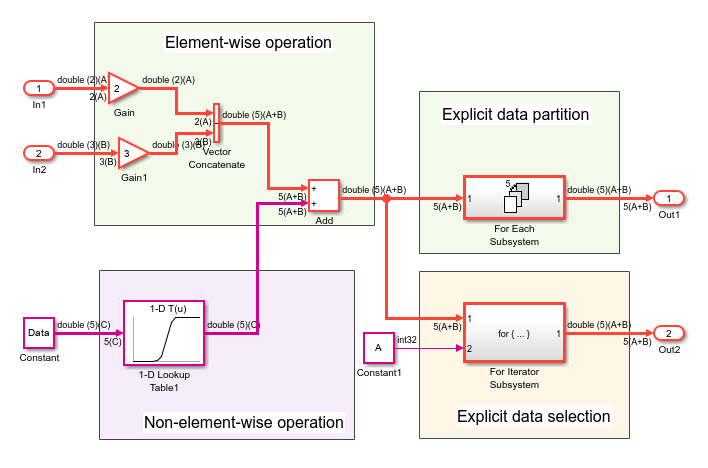

Implement Symbolic Dimensions for Array Sizes in Generated Code

Implement Symbolic Dimensions for Array Sizes in Generated Code

Symbolic dimensions enable the use of symbols instead of fixed numerical values for dimensions during model development. Wherever you need to specify a signal dimension in the model, you can use symbolic dimensions instead of actual numbers, which provides flexibility for changing the dimensions. For more information, see Create a Model with Symbolic Dimensions.
