plotFilterErrors

Plot tracking filter errors

Syntax

plotFilterErrors(tuner)

Description

plotFilterErrors(tuner) plots the position and velocity estimate errors on the x-, y-, and z-axes. The function also plots the 3-sigma covariance envelopes, which ideally contain roughly 99.7% of the state estimate errors for a consistent filter.

Note

Use the tune object function before calling the plotFilterErrors function if you have changed any of these properties of the tuner:

• FilterInitializationFcn

• TunablePropertiesSource

• CustomTunableProperties

Examples

Tune trackingEKF Using Tracking Filter Tuner

Load the tuning data containing the truth and detection data. The truth data has the position and velocity of one target for a duration of 9.5 seconds. The detection data has object detections of ten Monte-Carlo runs for the same period.

load("filterTuningData.mat","truth","detlog");

Create a trackingFilterTuner object.

tuner = trackingFilterTuner;

By default, the FiliterInitialization property of the tuner returns an initialization function that initializes a trackingEKF object.

initFcn = tuner.FilterInitializationFcn

initFcn =
"initcvekf"

Initialize the trackingEKF object and display the untuned process noise.

filter = feval(tuner.FilterInitializationFcn,detlog{1});
disp(filter.ProcessNoise);

     1     0     0
     0     1     0
     0     0     1

Specify the SolverOptions property so that the tuner displays the tuning progress for every iteration and set the maximum number of iterations to 30.

tuner.SolverOptions = optimoptions("fmincon",Display ="iter", ...
    MaxIterations=30);

Using the tune object function, tune the filter with the detection log and the truth data. Return the tuned properties.

tunedProps = tune(tuner,detlog,truth);

Your initial point x0 is not between bounds lb and ub; FMINCON
shifted x0 to strictly satisfy the bounds.

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
    0       7    9.294119e+00    0.000e+00    3.977e-02
    1      14    9.274890e+00    0.000e+00    3.653e-02    1.313e-01
    2      21    9.182690e+00    0.000e+00    3.089e-02    6.852e-01
    3      28    9.077721e+00    0.000e+00    4.671e-02    1.166e+00
    4      35    9.073360e+00    0.000e+00    4.441e-02    9.369e-02
    5      42    9.054802e+00    0.000e+00    4.320e-02    2.909e-01
    6      49    9.047225e+00    0.000e+00    2.914e-02    2.754e-01
    7      56    9.047721e+00    0.000e+00    1.084e-02    3.484e-02
    8      63    9.047374e+00    0.000e+00    4.113e-03    5.013e-02
    9      70    9.047364e+00    0.000e+00    2.893e-03    1.480e-02
   10      77    9.047318e+00    0.000e+00    1.734e-03    1.414e-02
   11      84    9.047302e+00    0.000e+00    9.999e-04    7.210e-03
   12      91    9.045889e+00    0.000e+00    1.152e-03    6.212e-02
   13      98    9.045539e+00    0.000e+00    8.820e-04    2.369e-02
   14     105    9.045480e+00    0.000e+00    8.302e-04    5.352e-03
   15     112    9.045468e+00    0.000e+00    6.217e-04    2.099e-03
   16     119    9.045470e+00    0.000e+00    2.000e-04    1.936e-03
   17     126    9.045223e+00    0.000e+00    1.153e-03    2.499e-02
   18     133    9.045106e+00    0.000e+00    3.033e-04    1.772e-02
   19     140    9.045095e+00    0.000e+00    1.018e-04    2.418e-03
   20     147    9.045095e+00    0.000e+00    1.007e-04    5.276e-04
   21     154    9.045095e+00    0.000e+00    9.443e-05    9.549e-04
   22     161    9.045095e+00    0.000e+00    8.803e-05    7.331e-04
   23     168    9.045095e+00    0.000e+00    7.113e-05    1.197e-03
   24     175    9.045094e+00    0.000e+00    1.094e-04    7.076e-04
   25     182    9.045094e+00    0.000e+00    1.111e-04    6.153e-04
   26     189    9.045094e+00    0.000e+00    7.520e-05    2.503e-04
   27     196    9.045094e+00    0.000e+00    4.000e-05    1.866e-04
   28     203    9.045034e+00    0.000e+00    3.476e-04    1.553e-02
   29     210    9.045015e+00    0.000e+00    3.322e-05    7.214e-03
   30     217    9.045013e+00    0.000e+00    1.526e-05    1.220e-03

Solver stopped prematurely.

fmincon stopped because it exceeded the iteration limit,
options.MaxIterations = 3.000000e+01.

Set the filter tunable properties by using the setTunedProperty object function of the filter. Display the tuned process noise.

setTunedProperties(filter,tunedProps);
disp(filter.ProcessNoise);

    0.0000    0.0001    0.0000
    0.0001    0.0149    0.0007
    0.0000    0.0007    0.0002

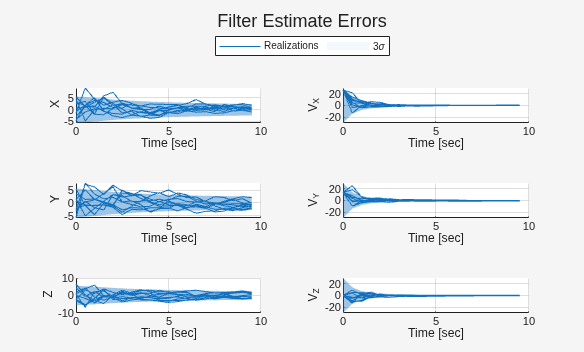

Plot the filter estimation error after tuning by using the plotFilterErrors object function.

plotFilterErrors(tuner)

Input Arguments

tuner — Tracking filter tuner

trackingFilterTuner object

Tracking filter tuner, specified as a trackingFilterTuner object.

Version History

Introduced in R2022b
