plotPlatformLog

Plot log of true platforms

Since R2023b

Syntax

plotPlatformLog(viewer,platlog)

plotPlatformLog(___,frame)

plotPlatformLog(___,Name=Value)

Description

plotPlatformLog(viewer,platlog) plots a log of platforms on the tracking globe viewer.

plotPlatformLog(___,frame) specifies the reference frame used to interpret the coordinates of the platforms.

plotPlatformLog(___,Name=Value) specifies options using one or more name-value pair arguments. For example, plotPlatformLog(viewer,platlog,LineWidth=2) specifies the width of the platform trajectory line as 2.

Examples

Plot Platform Log on Tracking Globe Viewer

Create a trackingGlobeViewer object and set its reference location. Also, set the camera view.

viewer = trackingGlobeViewer(Basemap="darkwater",ReferenceLocation=[42 -71 50]);
campos(viewer,[42.0002 -71 130]);

Create a platform log that contains five platform positions.

plat1log = cell(1,5);
for t=1:5
    plat1log{t} = struct(PlatformID=1,Position=[t*10 -10 0],Time=t);
end

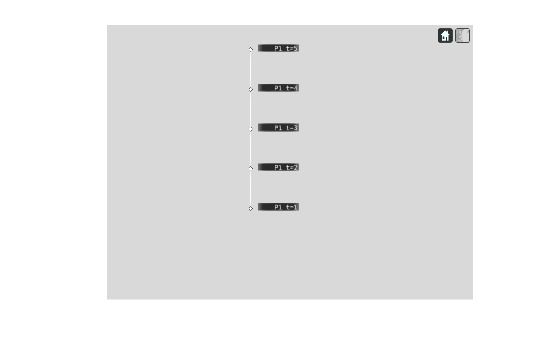

Plot the platform log on the globe viewer.

plotPlatformLog(viewer,plat1log,FontSize=14);

Take a snapshot and show the results.

drawnow
snapshot(viewer)

Create a second log of platforms.

plat2log = cell(1,5);
for t=1:5
    plat2log{t} = struct(PlatformID=2,Position=[t*10 10 0],Time=t);
end

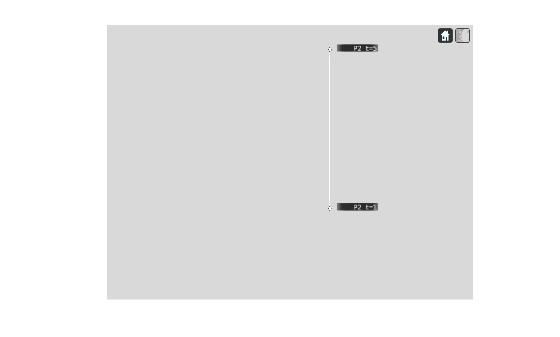

Plot the second log and display only the labels of the first and last platform positions.

sampleTimes = [plat2log{1}.Time plat2log{end}.Time];
plotPlatformLog(viewer,plat2log,LabelSampling=sampleTimes,FontSize=14);

Take a snapshot and show the results.

drawnow
snapshot(viewer)

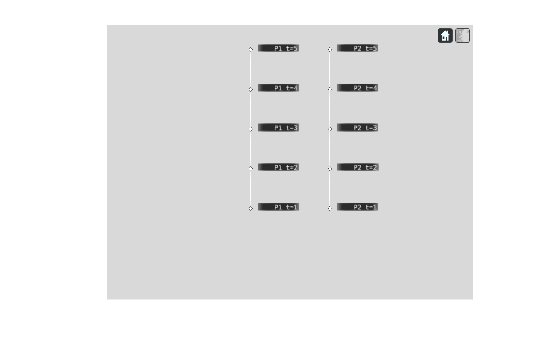

Plot the first and second logs together on the globe viewer.

platslog = [plat1log(:) plat2log(:)];
plotPlatformLog(viewer,platslog,FontSize=14);

Take a snapshot and show the results.

drawnow
snapshot(viewer)

Input Arguments

viewer — Tracking globe viewer

trackingGlobeViewer object

Tracking globe viewer, specified as a trackingGlobeViewer object.¹

platlog — Log of platforms

array of platform structures | cell array of platform structures

Log of platforms, specified as an array of platform structures or a cell array of platform structures. Each structure must have these fields.

Field Name	Description
PlatformID	Unique platform identifier, specified as a positive integer.
Time	Time of the platform position, specified as a nonnegative scalar in seconds.
Position	Position of the platform, specified as a three-element real-valued vector. Specify the position in the form [x, y, z], in meters, in your specified reference frame.

frame — Reference frame

"NED" (default) | "ENU" | "ECEF"

Reference frame, specified as "NED" for north-east down, "ENU" for east-north-up, or "ECEF" for Earth-centered-Earth-fixed. When specified as "NED" or "ENU", the origin of the reference frame is at the location specified by the ReferenceLocation property of the viewer object.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: plotPlatformLog(viewer,platlog,LineWidth=2)

LabelSamplingMode — Label sampling mode

"Timestamp" | "IndexSpacing" | "CustomIndices"

Since R2026a

Label sampling mode, specified as "Timestamp", "IndexSpacing", or"CustomIndices". LabelSamplingMode determines how plotPlatformLog interpret the LabelSampling argument.

LabelSamplingMode	How to Specify LabelSampling	Description
"Timestamp"	Vector of nonnegative scalars of time values	Samples at specified times. Each value must match the UpdateTime property of at least one track in the platlog input.
"IndexSpacing"	Positive integer, N	Samples every Nth step.
"CustomIndices"	Vector of positive integers	Samples at the specified indices. The function samples at each index listed in the vector.

LabelSampling — Label sampling

vector of nonnegative scalars | positive integer | vector of positive integers

Label sampling, specified as a vector of nonnegative scalars, a positive integer, or a vector of positive integers. This argument depends on the LabelSamplingMode argument.

LabelSamplingMode	How to Specify LabelSampling	Description
"Timestamp"	Vector of nonnegative scalars of time values	Samples at specified times. Each value must match the UpdateTime property of at least one track in the platlog input.
"IndexSpacing"	Positive integer, N	Samples every Nth step.
"CustomIndices"	Vector of positive integers	Samples at the specified indices. The function samples at each index listed in the vector.

FontSize — Font size

10 (default) | positive scalar

Font size of the platform labels, specified as a positive scalar in point units. One point equals 1/72 inch.

Example: 11

Data Types: single | double

LineWidth — Line width of platform trajectory line

1 (default) | nonnegative integer

Line width of the platform trajectory line, specified as a nonnegative integer in point units, where 1 point = 1/72 of an inch.

Tip

If you specify the line width as 0, then the plot does not the show trajectory line.

Example: 2

Color — Color of trajectory line

[0 0 0] (default) | RGB triplet

Color of the trajectory line, specified as an RGB triplet.

MarkerSize — Marker size

8 (default) | nonnegative real integer

Since R2025a

Marker size, specified as a nonnegative real integer.

Data Types: single | double

LabelStyle — Platform label style

"ID" (default) | "None"

Since R2025a

Platform label style, specified as:

• "ID" – Display platform ID and time.

• "None" – Display no label.

Data Types: char | string

Version History

Introduced in R2023b

R2026a: Customize track log color

You can use the Color name-value argument to customize platform log color.

R2026a: Customize label sampling mode

You can use the LabelSamplingMode name-value argument to customize label sampling mode.

R2025a: Specify marker size and label style

You can specify the marker size by using the MarkerSize name-value argument. You can also change the platform label style using the LabelStyle name-value argument.
