convertToSugeno

Convert Mamdani fuzzy inference system into Sugeno fuzzy inference system

collapse all in page

Syntax

sugenoFIS = convertToSugeno(mamdaniFIS)

Description

sugenoFIS = convertToSugeno(mamdaniFIS) converts the Mamdani fuzzy inference system mamdaniFIS into a Sugeno fuzzy inference system sugenoFIS.

example

Examples

collapse all

Open Live Script

Load a Mamdani fuzzy inference system.

mam_fis = readfis("mam22.fis");

Convert this system to a Sugeno fuzzy inference system.

sug_fis = convertToSugeno(mam_fis);

Plot the output surfaces for both fuzzy systems.

subplot(2,2,1)
gensurf(mam_fis)
title("Mamdani system (Output 1)")
subplot(2,2,2)
gensurf(sug_fis)
title("Sugeno system (Output 1)")
subplot(2,2,3)
gensurf(mam_fis,gensurfOptions(OutputIndex=2))
title("Mamdani system (Output 2)")
subplot(2,2,4)
gensurf(sug_fis,gensurfOptions(OutputIndex=2))
title("Sugeno system (Output 2)")

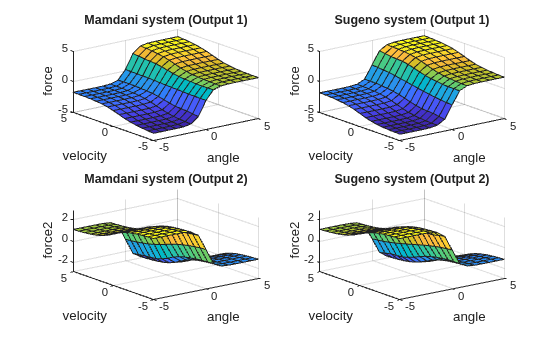

Figure contains 4 axes objects. Axes object 1 with title Mamdani system (Output 1), xlabel angle, ylabel velocity contains an object of type surface. Axes object 2 with title Sugeno system (Output 1), xlabel angle, ylabel velocity contains an object of type surface. Axes object 3 with title Mamdani system (Output 2), xlabel angle, ylabel velocity contains an object of type surface. Axes object 4 with title Sugeno system (Output 2), xlabel angle, ylabel velocity contains an object of type surface.

The output surfaces for both systems are similar.

Input Arguments

collapse all

Mamdani fuzzy inference system, specified as a mamfis or mamfistype2 object.

mamdaniFIS must not contain rules with NOT logic in the consequent.

Output Arguments

collapse all

Sugeno fuzzy inference system, returned as an object of type:

sugenoFIS:

  • Has constant output membership functions, whose values correspond to the centroids of the output membership functions in mamdaniFIS

  • Uses the weighted-average defuzzification method

  • Uses the product implication method

  • Uses the sum aggregation method

The remaining properties of sugenoFIS, including the input membership functions and rule definitions remain unchanged from mamdaniFIS.

Tips

  • If you have a functioning Mamdani fuzzy inference system, consider using convertToSugeno to convert to a more computationally efficient Sugeno structure to improve performance.

Alternative Functionality

App

You can interactively convert a Mamdani FIS into a Sugeno FIS using the Fuzzy Logic Designer app. You can then export the system to the MATLAB® workspace.

Version History

Introduced in R2018b
