sschdladvisor

Open Simscape HDL Workflow Advisor

Syntax

sschdladvisor(model)

sschdladvisor(subsystem)

Description

sschdladvisor(model) opens the Simscape HDL Workflow Advisor for the model.

sschdladvisor(subsystem) opens the Simscape HDL Workflow Advisor for the subsystem.

Examples

Open Simscape HDL Workflow Advisor for Model

Open the Boost Converter model.

ModelName = 'sschdlexBoostConverterExample';
open_system(ModelName)

Open the Simscape HDL Workflow Advisor for the Boost Converter model.

sschdladvisor(ModelName)

Open Simscape HDL Workflow Advisor for Subsystem

Open the Boost Converter multi-network model.

ModelName = 'sschdlexBoostConverterMultiNetworkExample';
open_system(ModelName)

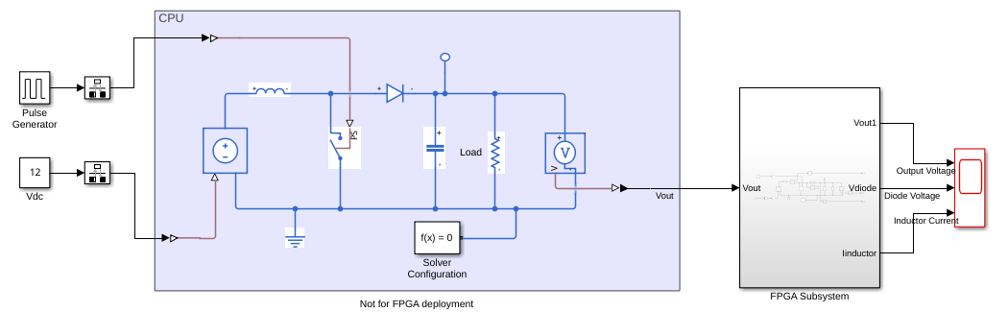

Select the FPGA Subsystem block and generate a state-space equivalent for it.

SubsysName = 'sschdlexBoostConverterMultiNetworkExample/FPGA Subsystem';

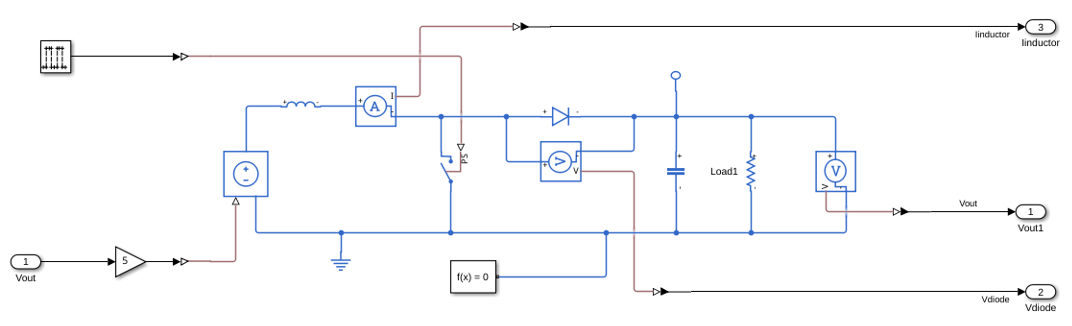

open_system(SubsysName)

Open the Simscape HDL Workflow Advisor for the FPGA Subsystem block.

sschdladvisor(SubsysName)

To generate a state-space equivalent for the FPGA Subsystem block, run the tasks in the Advisor.

Input Arguments

model — Model name

character vector | string scalar | handle

Model name or handle, specified as a character vector, string scalar, or model handle.

Data Types: char | string | double

subsystem — Subsystem name

character vector | string scalar | handle

Subsystem name or handle, specified as a character vector, string scalar, or subsystem handle.

Data Types: char | string | double

Version History

Introduced in R2018b

R2024b: Simscape network selection for FPGA deployment

You can generate a Simulink^® state-space equivalent model for any desired Simscape™ network of your plant model while retaining the additional networks in their original forms.
