Generate Black Box Interface for Subsystem
What Is a Black Box Interface?
A black box interface for a subsystem is a generated VHDL® component or Verilog® or SystemVerilog module that includes only the HDL input and output port definitions for the subsystem. By generating such a component, you can use a subsystem in your model to generate an interface to existing manually written HDL code, third-party IP, or other code generated by HDL Coder™.
Requirements
The black box implementation is available only for subsystem blocks below the level of the DUT. Virtual and atomic subsystem blocks of custom libraries that are below the level of the DUT also work with black box implementations.
Generate a Black Box Interface for Subsystem
To generate the interface, select the BlackBox
implementation for one or more Subsystem blocks.

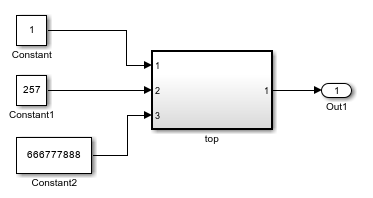

Consider the ex_blackbox_subsys
model that contains a subsystem top
, which is the device under test (DUT). Open the ex_blackbox_subsys
model.
load_system('ex_blackbox_subsys.slx') open_system('ex_blackbox_subsys.slx')

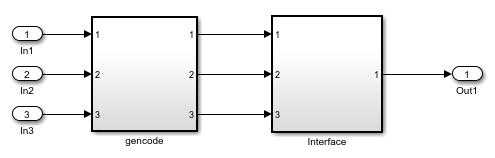

The subsystem top
contains two lower-level subsystems.
open_system('ex_blackbox_subsys/top')
To generate HDL code from top
model, with a black box interface from the Interface
subsystem, follow these steps:
Right-click the
Interface

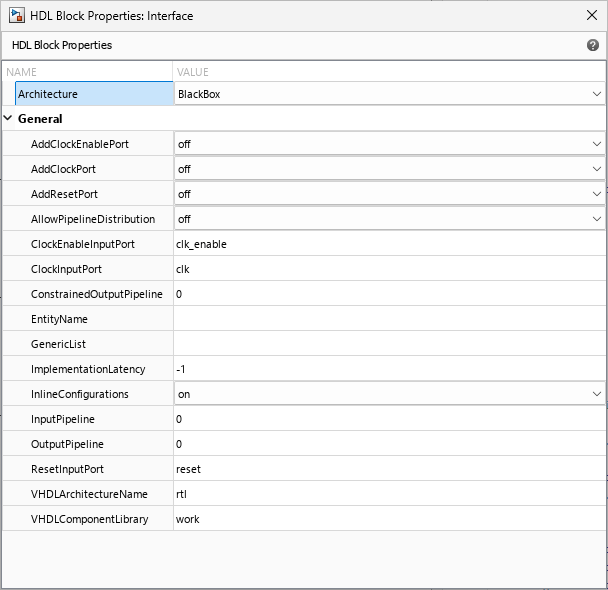

subsystem and select HDL Code > HDL Block Properties.The HDL Properties dialog box appears.Set Architecture to
BlackBox
.
The following parameters are available for the black box implementation. The HDL block parameters available for the black box implementation enable you to customize the generated interface. See Customize Black Box or HDL Cosimulation Interface for information about these parameters.
To generate VHDL generic
and a generic map
for passing to a subsystem with a black box interface, set the GenericList parameter to {{'Param1','234'},{'Param2','"1"','STD_LOGIC'},{'Param3'','"1101"','STD_LOGIC_VECTOR(3 DOWNTO 0)'}}
in the HDL block properties dialog box.
Alternatively, set the GenericList parameter for the black box Interface
subsystem in the model by using the hdlset_param
function. In the MATLAB Command Window, enter:
hdlset_param('ex_blackbox_subsys/top/Interface','GenericList',... '{{''Param1'',''234''},{''Param2'',''"1"'',''STD_LOGIC''},{''Param3'',''"1101"'',''STD_LOGIC_VECTOR(3 DOWNTO 0)''}}');
The input to the GenericList block parameter is a cell array variable that contains three cell arrays, each with two or three character arrays. These character arrays represent the name, value, and data type of a VHDL generic. In this example, the data type of Param1
is an integer
, Param2
is a STD_LOGIC
, and Param3
is a STD_LOGIC_VECTOR
. Use double quotes to denote scalar and vector values. For more information about the GenericList parameter syntax, see Customize Black Box or HDL Cosimulation Interface.
Generate Code for a Black Box Subsystem Implementation
When you generate code for the DUT in the ex_blackbox_subsys
model, the following messages appear:
makehdl('ex_blackbox_subsys/top')
### Working on the model ex_blackbox_subsys ### Generating HDL for ex_blackbox_subsys/top ### Using the config set for model ex_blackbox_subsys for HDL code generation parameters. ### Running HDL checks on the model 'ex_blackbox_subsys'. ### Begin compilation of the model 'ex_blackbox_subsys'... ### Working on the model 'ex_blackbox_subsys'... ### Working on... GenerateModel ### Begin model generation 'gm_ex_blackbox_subsys'... ### Rendering DUT with optimization related changes (IO, Area, Pipelining)... ### Model generation complete. ### Generated model saved at hdlsrc/ex_blackbox_subsys/gm_ex_blackbox_subsys.slx ### Begin VHDL Code Generation for 'ex_blackbox_subsys'. ### Working on ex_blackbox_subsys/top/gencode as hdlsrc/ex_blackbox_subsys/gencode.vhd. ### Working on ex_blackbox_subsys/top as hdlsrc/ex_blackbox_subsys/top.vhd. ### Code Generation for 'ex_blackbox_subsys' completed. ### Generating HTML files for code generation report at index.html ### Creating HDL Code Generation Check Report top_report.html ### HDL check for 'ex_blackbox_subsys' complete with 0 errors, 1 warnings, and 0 messages. ### HDL code generation complete.
In the progress messages, observe that the gencode
subsystem generates a separate file, gencode.vhd
, for its VHDL entity definition. The Interface
subsystem does not generate such a file. The interface code for this subsystem is in top.vhd
, generated from ex_blackbox_subsys/top
. The following code listing shows the component definition and instantiation generated for the Interface
subsystem.
COMPONENT Interface GENERIC( Param1 : integer; Param2 : STD_LOGIC; Param3 : STD_LOGIC_VECTOR(3 DOWNTO 0) ); PORT( clk : IN std_logic; clk_enable : IN std_logic; reset : IN std_logic; In1 : IN std_logic_vector(7 DOWNTO 0); -- uint8 In2 : IN std_logic_vector(15 DOWNTO 0); -- uint16 In3 : IN std_logic_vector(31 DOWNTO 0); -- uint32 Out1 : OUT std_logic_vector(31 DOWNTO 0) -- uint32 ); END COMPONENT; ... u_Interface : Interface GENERIC MAP( Param1 => 234, Param2 => "1", Param3 => "1101" ) PORT MAP( clk => clk, clk_enable => enb_const_rate, reset => reset, In1 => gencode_out1, -- uint8 In2 => gencode_out2, -- uint16 In3 => gencode_out3, -- uint32 Out1 => Interface_out1 -- uint32 ); enb_const_rate <= clk_enable; Out1 <= Interface_out1;
By default, the black box interface generated for subsystems includes clock, clock enable, and reset ports. Customize Black Box or HDL Cosimulation Interface describes how you can rename or suppress generation of these signals, and customize other aspects of the generated interface.
