Replace Behavioral DUT with RTL DUT in UVM Testbench

This example shows how to move from a stand-in C-based design DUT to a simple behavioral RTL DUT interface to a full protocol-based RTL DUT interface that uses AXI4-Lite and AXI4-Stream bus protocols. Several of the UVM components must change, such as the driver and monitor, but you can use reuse the original testbench structure and the sequence and scoreboard components without modification.

For a description of the design and the background on generating a UVM testbench, see the Generate Parameterized UVM Testbench from Simulink example.

Generate UVM Testbench

First, open the project and model.

openProject('pulsedetector_proj');
model = 'pulsedetector_tb';
open_system(model);

To generate the default UVM testbench for this example, execute:

design     = [model '/PulseDetector'];
sequence   = [model '/GenPulse'];
scoreboard = [model '/CheckDetection'];
predictor  = [model '/PulseDetectorRef'];
driver     = [model '/InputDriver'];
monitor    = [model '/OutputMonitor'];
uvmbuild(design, sequence, scoreboard, Predictor=predictor, Driver=driver, Monitor=monitor);
### Starting DPI subsystem generation for UVM test bench
### Starting build procedure for model: PulseDetector
### Starting SystemVerilog DPI Component Generation
### Generating DPI H Wrapper PulseDetector_dpi.h
### Generating DPI C Wrapper PulseDetector_dpi.c
### Generating UVM module package PulseDetector_dpi_pkg.sv
### Generating SystemVerilog module PulseDetector_dpi.sv
### Generating makefiles for: PulseDetector_dpi
### Invoking make to build the DPI Shared Library
### Successful completion of build procedure for model: PulseDetector

Build Summary

Top model targets:

Model          Build Reason                                         Status                        Build Duration
================================================================================================================
PulseDetector  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 9.6676s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 10.111s
### Starting build procedure for model: GenPulse
### Starting SystemVerilog DPI Component Generation
### Generating DPI H Wrapper GenPulse_dpi.h
### Generating DPI C Wrapper GenPulse_dpi.c
### Generating UVM module package GenPulse_dpi_pkg.sv
### Generating SystemVerilog module GenPulse_dpi.sv
### Generating makefiles for: GenPulse_dpi
### Invoking make to build the DPI Shared Library
### Successful completion of build procedure for model: GenPulse

Build Summary

Top model targets:

Model     Build Reason                                         Status                        Build Duration
===========================================================================================================
GenPulse  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 12.082s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 12.453s
### Starting build procedure for model: InputDriver
### Starting SystemVerilog DPI Component Generation
### Generating DPI H Wrapper InputDriver_dpi.h
### Generating DPI C Wrapper InputDriver_dpi.c
### Generating UVM module package InputDriver_dpi_pkg.sv
### Generating SystemVerilog module InputDriver_dpi.sv
### Generating makefiles for: InputDriver_dpi
### Invoking make to build the DPI Shared Library
### Successful completion of build procedure for model: InputDriver

Build Summary

Top model targets:

Model        Build Reason                                         Status                        Build Duration
==============================================================================================================
InputDriver  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 7.0133s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 7.4089s
### Starting build procedure for model: OutputMonitor
### Starting SystemVerilog DPI Component Generation
### Generating DPI H Wrapper OutputMonitor_dpi.h
### Generating DPI C Wrapper OutputMonitor_dpi.c
### Generating UVM module package OutputMonitor_dpi_pkg.sv
### Generating SystemVerilog module OutputMonitor_dpi.sv
### Generating makefiles for: OutputMonitor_dpi
### Invoking make to build the DPI Shared Library
### Successful completion of build procedure for model: OutputMonitor

Build Summary

Top model targets:

Model          Build Reason                                         Status                        Build Duration
================================================================================================================
OutputMonitor  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 7.2605s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 7.6211s
### Starting build procedure for model: CheckDetection
### Starting SystemVerilog DPI Component Generation
### Generating DPI H Wrapper CheckDetection_dpi.h
### Generating DPI C Wrapper CheckDetection_dpi.c
### Generating UVM module package CheckDetection_dpi_pkg.sv
### Generating SystemVerilog module CheckDetection_dpi.sv
### Generating makefiles for: CheckDetection_dpi
### Invoking make to build the DPI Shared Library
### Successful completion of build procedure for model: CheckDetection

Build Summary

Top model targets:

Model           Build Reason                                         Status                        Build Duration
=================================================================================================================
CheckDetection  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 12.735s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 13.145s
### Starting build procedure for model: PulseDetectorRef
### Starting SystemVerilog DPI Component Generation
### Generating DPI H Wrapper PulseDetectorRef_dpi.h
### Generating DPI C Wrapper PulseDetectorRef_dpi.c
### Generating UVM module package PulseDetectorRef_dpi_pkg.sv
### Generating SystemVerilog module PulseDetectorRef_dpi.sv
### Generating makefiles for: PulseDetectorRef_dpi
### Invoking make to build the DPI Shared Library
### Successful completion of build procedure for model: PulseDetectorRef

Build Summary

Top model targets:

Model             Build Reason                                         Status                        Build Duration
===================================================================================================================
PulseDetectorRef  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 9.8666s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 10.261s
### Starting UVM test bench generation for model: pulsedetector_tb
### Generating UVM transaction object ./uvm_build/pulsedetector_tb_uvm_testbench/scoreboard/mw_PulseDetector_scoreboard_trans.sv
### Generating UVM interface ./uvm_build/pulsedetector_tb_uvm_testbench/uvm_artifacts/mw_PulseDetector_if.sv
### Generating UVM sequence ./uvm_build/pulsedetector_tb_uvm_testbench/sequence/mw_PulseDetector_sequence.sv
### Generating UVM sequencer ./uvm_build/pulsedetector_tb_uvm_testbench/sequence/mw_PulseDetector_sequencer.sv
### Generating UVM sequence transaction ./uvm_build/pulsedetector_tb_uvm_testbench/sequence/mw_PulseDetector_sequence_trans.sv
### Generating UVM driver ./uvm_build/pulsedetector_tb_uvm_testbench/driver/mw_PulseDetector_driver.sv
### Generating UVM monitor ./uvm_build/pulsedetector_tb_uvm_testbench/monitor/mw_PulseDetector_monitor.sv
### Generating UVM input monitor ./uvm_build/pulsedetector_tb_uvm_testbench/uvm_artifacts/mw_PulseDetector_monitor_input.sv
### Generating UVM Reference Model ./uvm_build/pulsedetector_tb_uvm_testbench/predictor/mw_PulseDetector_predictor.sv
### Generating UVM transaction object ./uvm_build/pulsedetector_tb_uvm_testbench/predictor/mw_PulseDetector_predictor_trans.sv
### Generating UVM agent ./uvm_build/pulsedetector_tb_uvm_testbench/uvm_artifacts/mw_PulseDetector_agent.sv
### Generating UVM scoreboard ./uvm_build/pulsedetector_tb_uvm_testbench/scoreboard/mw_PulseDetector_scoreboard.sv
### Generating UVM scoreboard configuration object ./uvm_build/pulsedetector_tb_uvm_testbench/scoreboard/mw_PulseDetector_scoreboard_cfg_obj.sv
### Generating UVM environment ./uvm_build/pulsedetector_tb_uvm_testbench/uvm_artifacts/mw_PulseDetector_environment.sv
### Generating UVM test ./uvm_build/pulsedetector_tb_uvm_testbench/uvm_artifacts/mw_PulseDetector_test.sv
### Generating UVM top ./uvm_build/pulsedetector_tb_uvm_testbench/top/mw_PulseDetector_top.sv
### Generating UVM test package ./uvm_build/pulsedetector_tb_uvm_testbench/top/pulsedetector_tb_pkg.sv
### Generating UVM test bench simulation script for Siemens Questa/ModelSim ./uvm_build/pulsedetector_tb_uvm_testbench/top/run_tb_mq.do

Replace C-Based DUT with RTL-Based DUT

The UVM testbench generation exports the DUT as a C-based algorithm wrapped in a SystemVerilog module. This allows for immediately verifying that the generated UVM matches the original Simulink® simulation behavior. Of course, the point of the UVM testbench is to verify RTL, whether hand-written or generated by HDL Coder™. If the Simulink DUT interface matches the desired RTL interface, then you can directly replace the C-based DUT with an RTL with minimal overrides in the generated UVM testbench.

Generate the RTL with Behavioral Interface

NOTEicon.pngIf you do not want to use HDL Coder to generate the RTL, the HDL source is available with this example in overrides_RTLDUT/RTLIPSource.

With HDL Coder, you can create an RTL version of the DUT directly.

makehdl(design, 'targetdirectory', 'rtl_no_protocols');
### Working on the model pulsedetector_tb
### Generating HDL for pulsedetector_tb/PulseDetector
### Using the config set for model pulsedetector_tb for HDL code generation parameters.
### Running HDL checks on the model 'pulsedetector_tb'.
### Begin compilation of the model 'pulsedetector_tb'...
### Begin compilation of the model 'pulsedetector_tb'...
### Working on the model 'pulsedetector_tb'...
### The code generation and optimization options you have chosen have introduced additional pipeline delays.
### The delay balancing feature has automatically inserted matching delays for compensation.
### The DUT requires an initial pipeline setup latency. Each output port experiences these additional delays.
### Output port 1: 8 cycles.
### Output port 2: 8 cycles.
### Working on... GenerateModel
### Begin model generation 'gm_pulsedetector_tb'...
### Rendering DUT with optimization related changes (IO, Area, Pipelining)...
### Model generation complete.
### Generated model saved at rtl_no_protocols\pulsedetector_tb\gm_pulsedetector_tb.slx
### Delay absorption obstacles can be diagnosed by running this script: rtl_no_protocols\pulsedetector_tb\highlightDelayAbsorption.m
### To clear highlighting, click the following MATLAB script: rtl_no_protocols\pulsedetector_tb\clearhighlighting.m
### Begin Verilog Code Generation for 'pulsedetector_tb'.
### Unused logic removed during HDL code generation. To highlight the logic removed, click the following MATLAB script: highlightRemovedDeadBlocks.m
### To clear highlighting, click the following MATLAB script: clearHighlightingRemovedDeadBlocks.m
### Working on pulsedetector_tb/PulseDetector/Create TDATA as rtl_no_protocols\pulsedetector_tb\Create_TDATA.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Compute Power as rtl_no_protocols\pulsedetector_tb\Compute_Power.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Local Peak/MATLAB Function as rtl_no_protocols\pulsedetector_tb\MATLAB_Function.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Local Peak as rtl_no_protocols\pulsedetector_tb\Local_Peak.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Discrete FIR Filter as rtl_no_protocols\pulsedetector_tb\Discrete_FIR_Filter.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse as rtl_no_protocols\pulsedetector_tb\Detect_Pulse.v.
### Working on pulsedetector_tb/PulseDetector/Latch Peak as rtl_no_protocols\pulsedetector_tb\Latch_Peak.v.
### Working on pulsedetector_tb/PulseDetector/TDATA conversions as rtl_no_protocols\pulsedetector_tb\TDATA_conversions.v.
### Working on pulsedetector_tb/PulseDetector as rtl_no_protocols\pulsedetector_tb\PulseDetector.v.
### Code Generation for 'pulsedetector_tb' completed.
### Generating HTML files for code generation report at pulsedetector_tb_codegen_rpt.html
### Creating HDL Code Generation Check Report PulseDetector_report.html
### HDL check for 'pulsedetector_tb' complete with 0 errors, 0 warnings, and 2 messages.
### HDL code generation complete.

Override the DUT in the UVM Testbench

Because the interface matches the original C-based interface, only the DUT itself needs to be replaced in the UVM testbench as shown in the following image.

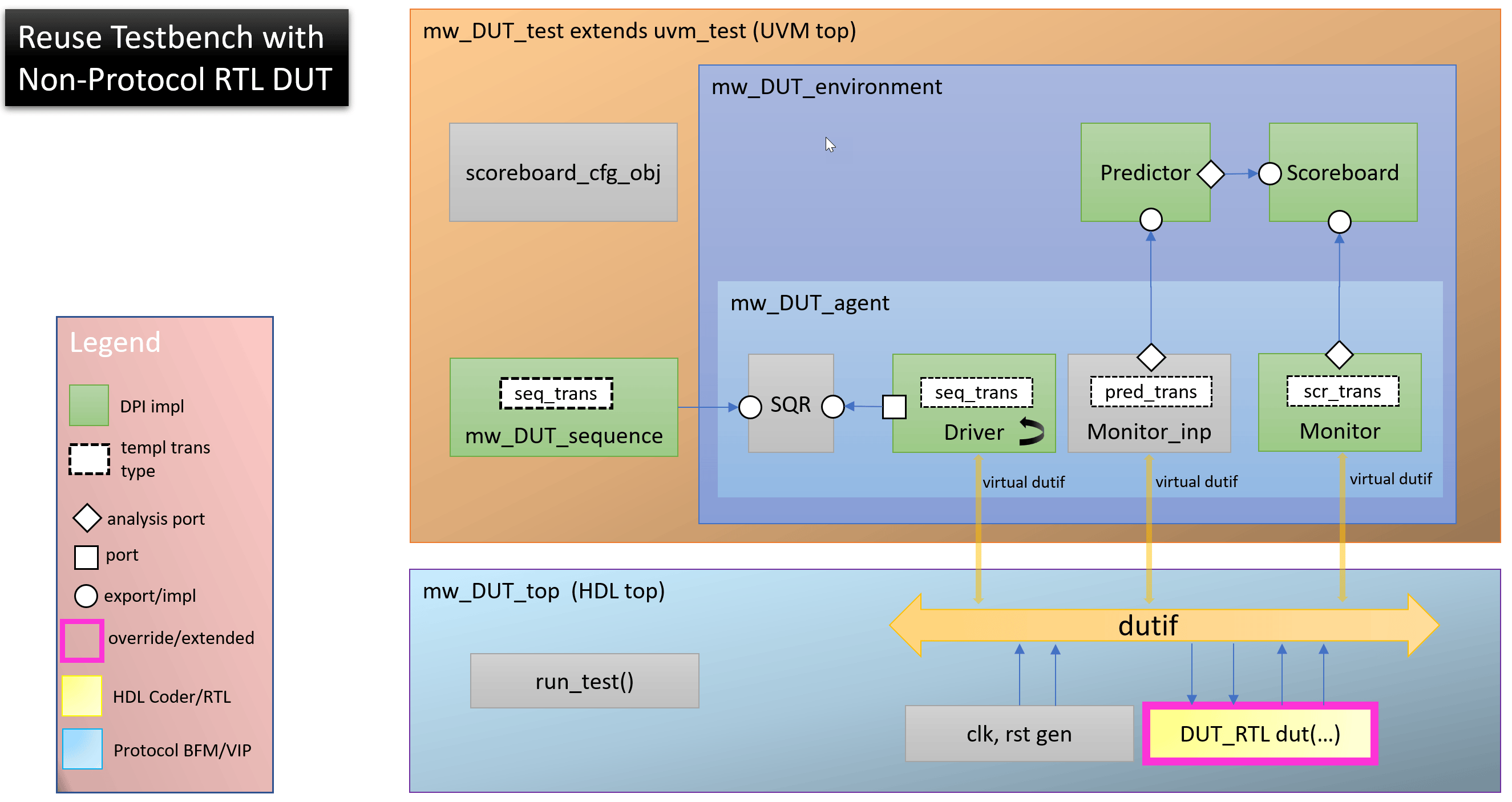

UVM Testbench block diagram, with the DUT block highlighted

Simulate the UVM Testbench with RTL DUT

The necessary overrides are in the overrides_RTLDUT subdirectory. These overrides utilize the RTL from the RTLIPSource subdirectory.

This example includes a script to set up and run Questa™. Adjust the commands to match the installation of your HDL simulator.

current_simulator = 'Questa';
setup_questa;

Next, clear the environment variables that influence the UVM simulation.

setenv EXTRA_UVM_SIM_ARGS
setenv EXTRA_UVM_COMP_ARGS
setenv UVM_TOP_MODULE

Finally, execute the UVM testbench utilizing the RTL-based DUT.

cd uvm_build/pulsedetector_tb_uvm_testbench/top

setenv UVM_TOP_MODULE mw_PulseDetector_RTL_top
setenv EXTRA_UVM_COMP_ARGS '-f ../../../overrides_RTLDUT/extra_comp_args.f'
setenv EXTRA_UVM_SIM_ARGS '+SNR_default_inp_val=10000000'
switch current_simulator
    case 'Questa',     ! vsim -c -do run_tb_mq.do
    case 'Questa_gui', ! vsim -do run_tb_mq.do
    case 'Xcelium',    ! ./run_tb_xcelium.sh
    case 'VCS',        ! ./run_tb_vcs.sh
end
Reading pref.tcl

# 2022.2

# do run_tb_mq.do
# -f ../../../overrides_RTLDUT/extra_comp_args.f
# +SNR_default_inp_val=10000000
# QuestaSim-64 vlog 2022.2 Compiler 2022.04 Apr 25 2022
# Start time: 14:45:57 on Jul 17,2024
# vlog -timescale 1ns/1ns ../DPI_dut/PulseDetector_dpi_pkg.sv ../sequence/GenPulse_dpi_pkg.sv ../scoreboard/CheckDetection_dpi_pkg.sv ../driver/InputDriver_dpi_pkg.sv ../monitor/OutputMonitor_dpi_pkg.sv ../predictor/PulseDetectorRef_dpi_pkg.sv pulsedetector_tb_pkg.sv -f ../../../overrides_RTLDUT/extra_comp_args.f "+define+MG_SIM"
# -- Compiling package PulseDetector_dpi_pkg
# -- Compiling package GenPulse_dpi_pkg
# -- Compiling package CheckDetection_dpi_pkg
# -- Compiling package InputDriver_dpi_pkg
# -- Compiling package OutputMonitor_dpi_pkg
# -- Compiling package PulseDetectorRef_dpi_pkg
# ** Note: (vlog-2286) pulsedetector_tb_pkg.sv(5): Using implicit +incdir+D:/3rdparty/R2023a/8709182/share/Questasim/Win/uvm-1.1d/../verilog_src/uvm-1.1d/src from import uvm_pkg
# -- Compiling package pulsedetector_tb_pkg
# -- Importing package mtiUvm.uvm_pkg (uvm-1.1d Built-in)
# -- Importing package GenPulse_dpi_pkg
# -- Importing package CheckDetection_dpi_pkg
# -- Importing package PulseDetectorRef_dpi_pkg
# -- Importing package InputDriver_dpi_pkg
# -- Importing package OutputMonitor_dpi_pkg
# -- Compiling module Create_TDATA
# -- Compiling module Compute_Power
# -- Compiling module MATLAB_Function
# -- Compiling module Local_Peak
# -- Compiling module Detect_Pulse
# -- Compiling module Latch_Peak
# -- Compiling module TDATA_conversions
# -- Compiling module PulseDetector
# -- Compiling module PulseDetectorRTL
# ** Warning: ../../../overrides_RTLDUT/RTLIPSource/PulseDetectorRTL.sv(7): (vlog-13314) Defaulting port 'coeff_in' kind to 'var' rather than 'wire' due to default compile option setting of -svinputport=relaxed.
# -- Compiling interface mw_PulseDetector_if
# -- Compiling package mw_PulseDetector_RTL_top_sv_unit
# -- Importing package pulsedetector_tb_pkg
# -- Compiling module mw_PulseDetector_RTL_top
#
# Top level modules:
# 	mw_PulseDetector_RTL_top
# End time: 14:45:59 on Jul 17,2024, Elapsed time: 0:00:02
# Errors: 0, Warnings: 1
# vsim "+SNR_default_inp_val=10000000" -L work -voptargs="+acc" -sv_lib ../DPI_dut/PulseDetector_win64 -sv_lib ../sequence/GenPulse_win64 -sv_lib ../scoreboard/CheckDetection_win64 -sv_lib ../driver/InputDriver_win64 -sv_lib ../monitor/OutputMonitor_win64 -sv_lib ../predictor/PulseDetectorRef_win64 "+UVM_TESTNAME=mw_PulseDetector_test" mw_PulseDetector_RTL_top "+define+MG_SIM"
# Start time: 14:45:59 on Jul 17,2024
# ** Note: (vsim-3812) Design is being optimized...
# ** Warning: (vopt-10587) Some optimizations are turned off because the +acc switch is in effect. This will cause your simulation to run slowly. Please use -access/-debug to maintain needed visibility.
# ** Warning: ../../../overrides_RTLDUT/RTLIPSource/PulseDetectorRTL.sv(7): (vopt-13314) Defaulting port 'coeff_in' kind to 'var' rather than 'wire' due to default compile option setting of -svinputport=relaxed.
# ** Note: (vsim-12126) Error and warning message counts have been restored: Errors=0, Warnings=2.
# //  Questa Sim-64
# //  Version 2022.2 win64 Apr 25 2022
# //
# //  Copyright 1991-2022 Mentor Graphics Corporation
# //  All Rights Reserved.
# //
# //  QuestaSim and its associated documentation contain trade
# //  secrets and commercial or financial information that are the property of
# //  Mentor Graphics Corporation and are privileged, confidential,
# //  and exempt from disclosure under the Freedom of Information Act,
# //  5 U.S.C. Section 552. Furthermore, this information
# //  is prohibited from disclosure under the Trade Secrets Act,
# //  18 U.S.C. Section 1905.
# //
# Loading sv_std.std
# Loading work.mw_PulseDetector_if(fast)
# Loading work.OutputMonitor_dpi_pkg(fast)
# Loading work.InputDriver_dpi_pkg(fast)
# Loading work.PulseDetectorRef_dpi_pkg(fast)
# Loading work.CheckDetection_dpi_pkg(fast)
# Loading work.GenPulse_dpi_pkg(fast)
# Loading mtiUvm.uvm_pkg(fast)
# Loading work.pulsedetector_tb_pkg(fast)
# Loading work.mw_PulseDetector_RTL_top_sv_unit(fast)
# Loading mtiUvm.questa_uvm_pkg(fast)
# Loading work.mw_PulseDetector_RTL_top(fast)
# Loading work.mw_PulseDetector_if(fast__2)
# Loading work.PulseDetectorRTL(fast)
# Loading work.PulseDetector(fast)
# Loading work.TDATA_conversions(fast)
# Loading work.Detect_Pulse(fast)
# Loading work.Compute_Power(fast)
# Loading work.Local_Peak(fast)
# Loading work.MATLAB_Function(fast)
# Loading work.Latch_Peak(fast)
# Loading work.Create_TDATA(fast)
# Loading .\../DPI_dut/PulseDetector_win64.dll
# Loading .\../sequence/GenPulse_win64.dll
# Loading .\../scoreboard/CheckDetection_win64.dll
# Loading .\../driver/InputDriver_win64.dll
# Loading .\../monitor/OutputMonitor_win64.dll
# Loading .\../predictor/PulseDetectorRef_win64.dll
# Loading D:/3rdparty/R2023a/8709182/share/Questasim/Win/uvm-1.1d\win64\uvm_dpi.dll

[FrameNum=  0] No peak found in Ref or Impl.

[FrameNum=  1] PREDICTED: Peak location=2163.000000, mag-squared=0.280 using global max

[FrameNum=  1] ACTUAL   : Peak location=2170.000000, mag-squared=0.285 using global max

[FrameNum=  1] DIFF     : Peak location=7, mag-squared=0.004 (1.551%)

[FrameNum=  2] PREDICTED: Peak location=2163.000000, mag-squared=0.200 using global max

[FrameNum=  2] ACTUAL   : Peak location=2170.000000, mag-squared=0.194 using global max

[FrameNum=  2] DIFF     : Peak location=7, mag-squared=0.006 (2.881%)

[FrameNum=  3] PREDICTED: Peak location=2163.000000, mag-squared=0.224 using global max

[FrameNum=  3] ACTUAL   : Peak location=2170.000000, mag-squared=0.234 using global max

[FrameNum=  3] DIFF     : Peak location=7, mag-squared=0.010 (4.623%)

[FrameNum=  4] PREDICTED: Peak location=2163.000000, mag-squared=0.200 using global max

[FrameNum=  4] ACTUAL   : Peak location=2170.000000, mag-squared=0.209 using global max

[FrameNum=  4] DIFF     : Peak location=7, mag-squared=0.009 (4.346%)

[FrameNum=  5] PREDICTED: Peak location=2163.000000, mag-squared=0.255 using global max

[FrameNum=  5] ACTUAL   : Peak location=2170.000000, mag-squared=0.257 using global max

[FrameNum=  5] DIFF     : Peak location=7, mag-squared=0.002 (0.735%)

[FrameNum=  6] PREDICTED: Peak location=2163.000000, mag-squared=0.241 using global max

[FrameNum=  6] ACTUAL   : Peak location=2170.000000, mag-squared=0.250 using global max

[FrameNum=  6] DIFF     : Peak location=7, mag-squared=0.009 (3.660%)

[FrameNum=  7] PREDICTED: Peak location=2163.000000, mag-squared=0.241 using global max

[FrameNum=  7] ACTUAL   : Peak location=2170.000000, mag-squared=0.243 using global max

[FrameNum=  7] DIFF     : Peak location=7, mag-squared=0.002 (0.790%)
# ----------------------------------------------------------------
# UVM-1.1d
# (C) 2007-2013 Mentor Graphics Corporation
# (C) 2007-2013 Cadence Design Systems, Inc.
# (C) 2006-2013 Synopsys, Inc.
# (C) 2011-2013 Cypress Semiconductor Corp.
# ----------------------------------------------------------------
#
#   ***********       IMPORTANT RELEASE NOTES         ************
#
#   You are using a version of the UVM library that has been compiled
#   with `UVM_NO_DEPRECATED undefined.
#   See http://www.eda.org/svdb/view.php?id=3313 for more details.
#
#   You are using a version of the UVM library that has been compiled
#   with `UVM_OBJECT_MUST_HAVE_CONSTRUCTOR undefined.
#   See http://www.eda.org/svdb/view.php?id=3770 for more details.
#
#       (Specify +UVM_NO_RELNOTES to turn off this notice)
#
# UVM_INFO verilog_src/questa_uvm_pkg-1.2/src/questa_uvm_pkg.sv(277) @ 0: reporter [Questa UVM] QUESTA_UVM-1.2.3
# UVM_INFO verilog_src/questa_uvm_pkg-1.2/src/questa_uvm_pkg.sv(278) @ 0: reporter [Questa UVM]  questa_uvm::init(+struct)
# UVM_INFO @ 0: reporter [RNTST] Running test mw_PulseDetector_test...
# ** Info: Gathering coverage for 2 Simulink verify() calls.
#    Time: 0 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.initVerifyInfo File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 261
# ** Info: Model verify() covergroup 0 properties:
#         Covergroup instance name: pulsedetector_tb:757
#         Coverage count goal     : 1
#         Model location          : Simulink.ID.hilite('pulsedetector_tb:757')
#         Block path              : CheckDetection/CheckDetection/Check
# Static Range
#         Step name               : inferred verify call
#         Verify ID               : CheckDetection/CheckDetection/Check
# Static Range
#    Time: 0 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.initVerifyInfo File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 265
# ** Info: Model verify() covergroup 1 properties:
#         Covergroup instance name: pulsedetector_tb:744
#         Coverage count goal     : 1
#         Model location          : Simulink.ID.hilite('pulsedetector_tb:744')
#         Block path              : CheckDetection/CheckDetection/Check Static
# Upper Bound
#         Step name               : inferred verify call
#         Verify ID               : CheckDetection/CheckDetection/Check Static
# Upper Bound
#    Time: 0 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.initVerifyInfo File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 265

[FrameNum=  8] PREDICTED: Peak location=2163.000000, mag-squared=0.225 using global max

[FrameNum=  8] ACTUAL   : Peak location=2170.000000, mag-squared=0.231 using global max

[FrameNum=  8] DIFF     : Peak location=7, mag-squared=0.007 (3.076%)

[FrameNum=  9] PREDICTED: Peak location=2163.000000, mag-squared=0.239 using global max

[FrameNum=  9] ACTUAL   : Peak location=2170.000000, mag-squared=0.254 using global max

[FrameNum=  9] DIFF     : Peak location=7, mag-squared=0.015 (6.083%)

[FrameNum= 10] PREDICTED: Peak location=2163.000000, mag-squared=0.225 using global max

[FrameNum= 10] ACTUAL   : Peak location=2170.000000, mag-squared=0.230 using global max

[FrameNum= 10] DIFF     : Peak location=7, mag-squared=0.005 (2.242%)

[FrameNum= 11] PREDICTED: Peak location=2163.000000, mag-squared=0.207 using global max

[FrameNum= 11] ACTUAL   : Peak location=2170.000000, mag-squared=0.221 using global max

[FrameNum= 11] DIFF     : Peak location=7, mag-squared=0.014 (6.697%)

[FrameNum= 12] PREDICTED: Peak location=2163.000000, mag-squared=0.265 using global max

[FrameNum= 12] ACTUAL   : Peak location=2170.000000, mag-squared=0.260 using global max

[FrameNum= 12] DIFF     : Peak location=7, mag-squared=0.005 (2.014%)
# ** Error: pulsedetector_tb:744:
#    Time: 450020 ns  Scope: pulsedetector_tb_pkg.mw_PulseDetector_scoreboard.run_phase File: ../scoreboard/mw_PulseDetector_scoreboard.sv Line: 84
# ** Error: pulsedetector_tb:744: At step 'inferred verify call' verify id 'CheckDetection/CheckDetection/Check Static
# Upper Bound' Failed
#    Time: 450020 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.checkVerifyStatus File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 384
# ** Error: pulsedetector_tb:744:
#    Time: 550020 ns  Scope: pulsedetector_tb_pkg.mw_PulseDetector_scoreboard.run_phase File: ../scoreboard/mw_PulseDetector_scoreboard.sv Line: 84
# ** Error: pulsedetector_tb:744: At step 'inferred verify call' verify id 'CheckDetection/CheckDetection/Check Static
# Upper Bound' Failed
#    Time: 550020 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.checkVerifyStatus File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 384
# UVM_INFO verilog_src/uvm-1.1d/src/base/uvm_objection.svh(1267) @ 650000: reporter [TEST_DONE] 'run' phase is ready to proceed to the 'extract' phase
# ** Info: Instance coverage for verify 'pulsedetector_tb:757', coverpoint 'pass_cp': metric=100.00 (Pass:    13), at_least=   1 (   COVERED)
#    Time: 650 us  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.reportVerifyCoverage File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 406
# ** Info: Instance coverage for verify 'pulsedetector_tb:744', coverpoint 'pass_cp': metric=100.00 (Pass:    11), at_least=   1 (   COVERED)
#    Time: 650 us  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.reportVerifyCoverage File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 406
# ** Info: Overall coverage for CheckDetection_dpi_verify_calls: metric=100.00 (   COVERED)
#    Time: 650 us  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.reportVerifyCoverage File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 413
#
# --- UVM Report Summary ---
#
# ** Report counts by severity
# UVM_INFO :    4
# UVM_WARNING :    0
# UVM_ERROR :    0
# UVM_FATAL :    0
# ** Report counts by id
# [Questa UVM]     2
# [RNTST]     1
# [TEST_DONE]     1
# ** Note: $finish    : D:/3rdparty/R2023a/8709182/share/Questasim/Win/win64/../verilog_src/uvm-1.1d/src/base/uvm_root.svh(430)
#    Time: 650 us  Iteration: 61  Instance: /mw_PulseDetector_RTL_top
# End time: 14:46:47 on Jul 17,2024, Elapsed time: 0:00:48
# Errors: 4, Warnings: 2
cd ../../..

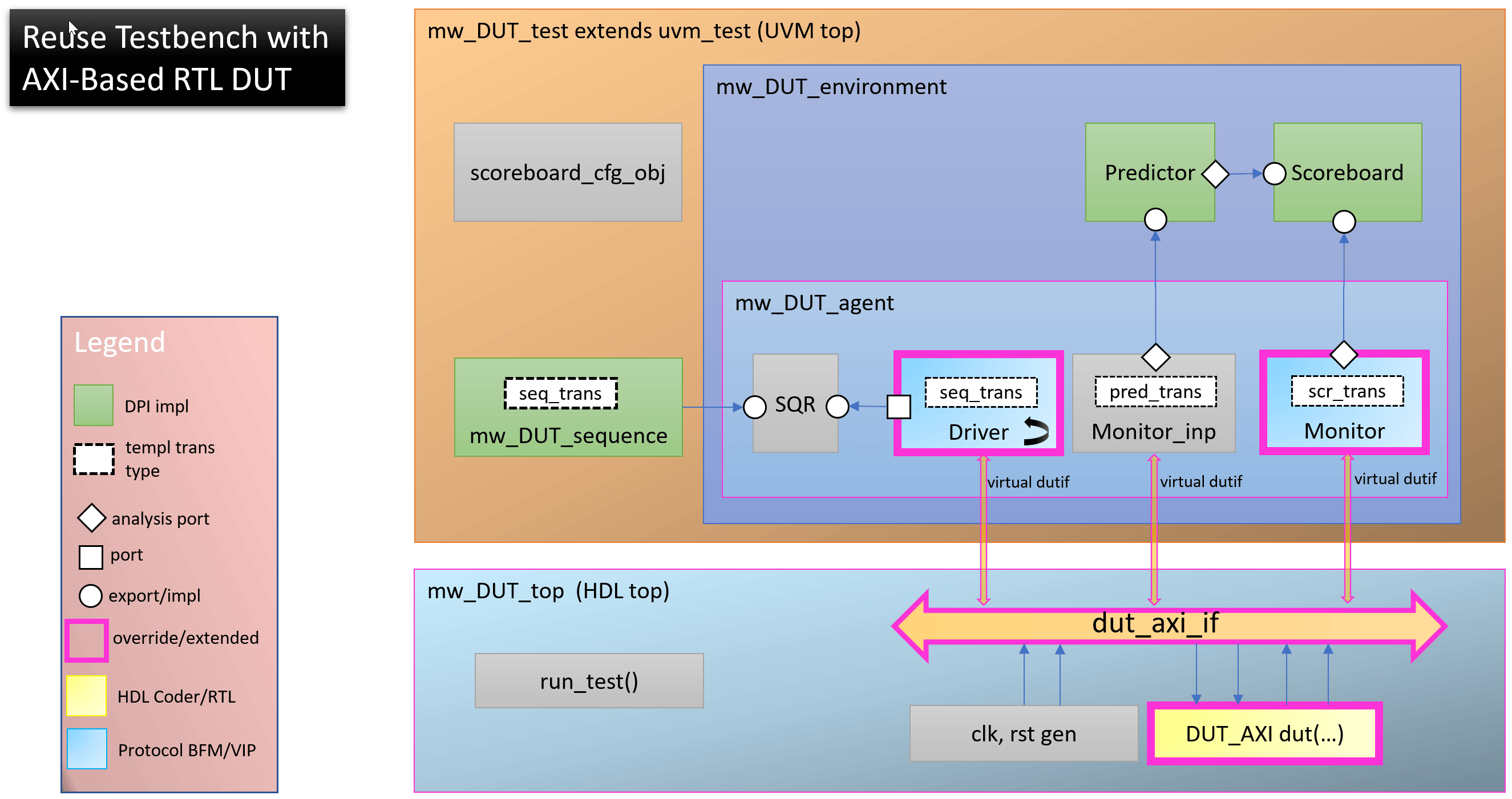

Replacing the C-Based DUT with an AXI-Based RTL DUT

The DUT in Simulink represents the functional behavior of the pulse detector and does not use any hardware protocol interfaces that are typical of HDL IP cores. The next step in the verification workflow integrates an HDL implementation that uses AXI-based protocols into the same generated UVM testbench.

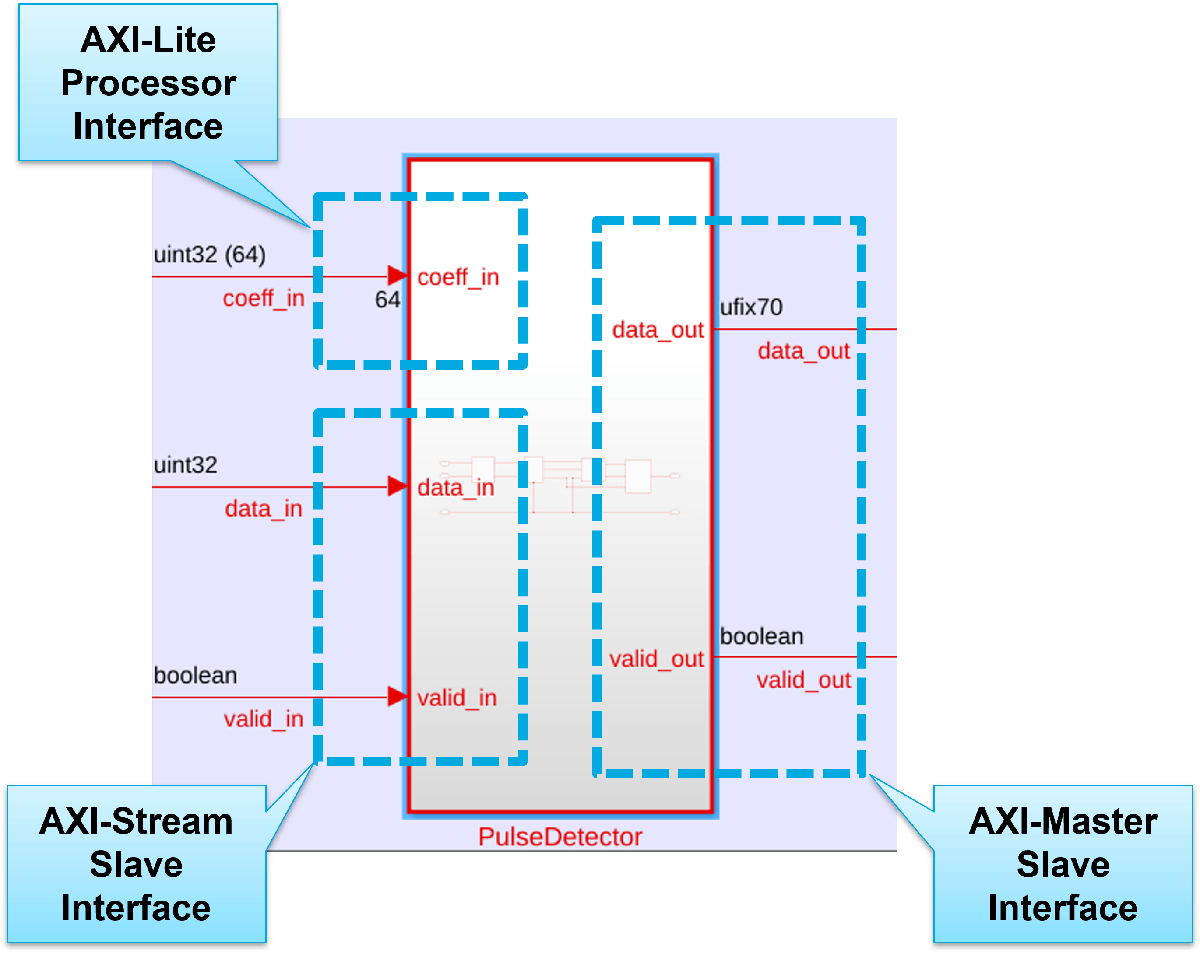

Map Ports to AXI Interfaces

For this RTL DUT, the coeff port is mapped to a processor interface, AXI4-Lite, the data_in port is mapped to an AXI4-Stream slave interface, and the data_out port is mapped to an AXI4-Stream master interface as shown below.


You can manually write this RTL or use IP core generation workflow (requires HDL Coder) to create it.

Generate an AXI-Based RTL DUT

NOTEicon.png The RTL implementation is included with this example located in overrides_AXIDUT/AXIIPSource so no HDL Coder license is needed.

If you have HDL Coder, you can map signals to AXI interfaces and generate an RTL IP core using the specified hardware protocols.

We've exported the HDL Coder settings to pulsedetector_genaxidut in order to script the generation.

This example includes a MathWorks-specifc set up to run Vivado®. Adjust the commands to match your installation.

setup_vivado

Next, run a script that generates an AXI-based RTL DUT using HDL Coder.

pulsedetector_genaxidut
### Workflow begin.
### Loading settings from model.
### Working on the model pulsedetector_tb
### Generating HDL for pulsedetector_tb/PulseDetector
### Using the config set for model pulsedetector_tb for HDL code generation parameters.
### Running HDL checks on the model 'pulsedetector_tb'.
### Begin compilation of the model 'pulsedetector_tb'...
### Begin compilation of the model 'pulsedetector_tb'...
Warning: AXI4-Stream Protocol requires TDATA port width to be integer number of bytes. In the generated HDL code, the bitwidth of the TDATA port of the interface "AXI4-Stream Master" will be 72 bits.
### ++++++++++++++ Task Generate RTL Code and IP Core ++++++++++++++
### Working on the model 'pulsedetector_tb'...
### The code generation and optimization options you have chosen have introduced additional pipeline delays.
### The delay balancing feature has automatically inserted matching delays for compensation.
### The DUT requires an initial pipeline setup latency. Each output port experiences these additional delays.
### Output port 1: 8 cycles.
### Output port 2: 8 cycles.
### Working on... GenerateModel
### Begin model generation 'gm_pulsedetector_tb'...
### Rendering DUT with optimization related changes (IO, Area, Pipelining)...
### Model generation complete.
### Generated model saved at rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\gm_pulsedetector_tb.slx
### Delay absorption obstacles can be diagnosed by running this script: rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\highlightDelayAbsorption.m
### To clear highlighting, click the following MATLAB script: rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\clearhighlighting.m
### Begin Verilog Code Generation for 'pulsedetector_tb'.
### Unused logic removed during HDL code generation. To highlight the logic removed, click the following MATLAB script: highlightRemovedDeadBlocks.m
### To clear highlighting, click the following MATLAB script: clearHighlightingRemovedDeadBlocks.m
### Working on pulsedetector_tb/PulseDetector/Create TDATA as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_Create_TDATA.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Compute Power as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_Compute_Power.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Local Peak/MATLAB Function as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_MATLAB_Function.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Local Peak as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_Local_Peak.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse/Discrete FIR Filter as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_Discrete_FIR_Filter.v.
### Working on pulsedetector_tb/PulseDetector/Detect Pulse as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_Detect_Pulse.v.
### Working on pulsedetector_tb/PulseDetector/Latch Peak as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_Latch_Peak.v.
### Working on pulsedetector_tb/PulseDetector/TDATA conversions as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_TDATA_conversions.v.
### Working on pulsedetector_tb/PulseDetector as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_src_PulseDetector.v.
### Code Generation for 'pulsedetector_tb' completed.
### Generating HTML files for code generation report at pulsedetector_tb_codegen_rpt.html
### Creating HDL Code Generation Check Report PulseDetectorAXI_ip_src_PulseDetector_report.html
### HDL check for 'pulsedetector_tb' complete with 0 errors, 0 warnings, and 2 messages.
### HDL code generation complete.
### Begin IP core top level wrapper code generation.
### Begin Verilog Code Generation for 'pulsedetector_tb'.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_reset_sync as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_reset_sync.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_dut as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_dut.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_master/PulseDetectorAXI_ip_fifo_data_OUT/PulseDetectorAXI_ip_fifo_data_OUT_classic/PulseDetectorAXI_ip_SimpleDualPortRAM_generic as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_SimpleDualPortRAM_generic.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_master/PulseDetectorAXI_ip_fifo_data_OUT as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_fifo_data_OUT.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_master/PulseDetectorAXI_ip_fifo_TLAST_OUT/PulseDetectorAXI_ip_fifo_TLAST_OUT_classic/PulseDetectorAXI_ip_SimpleDualPortRAM_singlebit as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_SimpleDualPortRAM_singlebit.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_master/PulseDetectorAXI_ip_fifo_TLAST_OUT as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_fifo_TLAST_OUT.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_master as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_axi4_stream_master.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_slave/PulseDetectorAXI_ip_fifo_data as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_fifo_data.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi4_stream_slave as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_axi4_stream_slave.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi_lite/PulseDetectorAXI_ip_addr_decoder as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_addr_decoder.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi_lite/PulseDetectorAXI_ip_axi_lite_module as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_axi_lite_module.v.
### Working on PulseDetectorAXI_ip/PulseDetectorAXI_ip_axi_lite as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip_axi_lite.v.
### Working on PulseDetectorAXI_ip as rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\PulseDetectorAXI_ip.v.
### Code Generation for 'pulsedetector_tb' completed.
### HDL code generation complete.
### Begin IP core packaging.
### Generating IP core report pulsedetector_tb_ip_core_report.html
### Generated logfile: rtl_with_axi_protocols\hdlsrc\pulsedetector_tb\workflow_task_VivadoIPPackager.log
### Task "Vivado IP Packager" successful.
###
****** Vivado v2023.1.2 (64-bit)
  **** SW Build 3954437 on Wed Aug  9 23:07:21 MDT 2023
  **** IP Build 3954312 on Thu Aug 10 04:10:56 MDT 2023
  **** SharedData Build 3952698 on Tue Aug 08 21:36:00 MDT 2023
    ** Copyright 1986-2022 Xilinx, Inc. All Rights Reserved.
    ** Copyright 2022-2023 Advanced Micro Devices, Inc. All Rights Reserved.

source vivado_ip_package.tcl -notrace
INFO: [ProjectBase 1-489] The host OS only allows 260 characters in a normal path. The project is stored in a path with more than 80 characters. If you experience issues with IP, Block Designs, or files not being found, please consider moving the project to a location with a shorter path. Alternately consider using the OS subst command to map part of the path to a drive letter.
Current project path is 'C:/Users/kritikab/ReplaceRTLDUTUVMTB/pulsedetector_proj/rtl_with_axi_protocols/ipcore/PulseDetectorAXI_ip_v1_0/prj_ip'
create_project: Time (s): cpu = 00:00:07 ; elapsed = 00:00:12 . Memory (MB): peak = 1967.285 ; gain = 179.543
INFO: [IP_Flow 19-234] Refreshing IP repositories
INFO: [IP_Flow 19-1700] Loaded user IP repository 'c:/Users/kritikab/ReplaceRTLDUTUVMTB/pulsedetector_proj/rtl_with_axi_protocols/ipcore'.
WARNING: [IP_Flow 19-3656] If you move the project, the path for repository 'c:/Users/kritikab/ReplaceRTLDUTUVMTB/pulsedetector_proj/rtl_with_axi_protocols/ipcore' may become invalid. A better location for the repository would be in a path adjacent to the project. (Current project location is 'c:/Users/kritikab/ReplaceRTLDUTUVMTB/pulsedetector_proj/rtl_with_axi_protocols/ipcore/PulseDetectorAXI_ip_v1_0/prj_ip'.)
INFO: [IP_Flow 19-2313] Loaded Vivado IP repository 'D:/share/apps/HDLTools/Vivado/2023.1.2-mw-0/Win/Vivado/2023.1/data/ip'.
INFO: [IP_Flow 19-5107] Inferred bus interface 'AXI4_Stream_Master' of definition 'xilinx.com:interface:axis:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-5107] Inferred bus interface 'AXI4_Stream_Slave' of definition 'xilinx.com:interface:axis:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-5107] Inferred bus interface 'AXI4_Lite' of definition 'xilinx.com:interface:aximm:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-5107] Inferred bus interface 'AXI4_Lite_ARESETN' of definition 'xilinx.com:signal:reset:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-5107] Inferred bus interface 'IPCORE_RESETN' of definition 'xilinx.com:signal:reset:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-5107] Inferred bus interface 'AXI4_Lite_ACLK' of definition 'xilinx.com:signal:clock:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-5107] Inferred bus interface 'IPCORE_CLK' of definition 'xilinx.com:signal:clock:1.0' (from Xilinx Repository).
INFO: [IP_Flow 19-4728] Bus Interface 'AXI4_Lite_ARESETN': Added interface parameter 'POLARITY' with value 'ACTIVE_LOW'.
INFO: [IP_Flow 19-4728] Bus Interface 'IPCORE_RESETN': Added interface parameter 'POLARITY' with value 'ACTIVE_LOW'.
INFO: [IP_Flow 19-4728] Bus Interface 'AXI4_Lite_ACLK': Added interface parameter 'ASSOCIATED_BUSIF' with value 'AXI4_Lite'.
INFO: [IP_Flow 19-4728] Bus Interface 'AXI4_Lite_ACLK': Added interface parameter 'ASSOCIATED_RESET' with value 'AXI4_Lite_ARESETN'.
INFO: [IP_Flow 19-4728] Bus Interface 'IPCORE_CLK': Added interface parameter 'ASSOCIATED_RESET' with value 'IPCORE_RESETN'.
WARNING: [IP_Flow 19-3158] Bus Interface 'AXI4_Stream_Master': FREQ_HZ bus parameter missing from AXI interface when interface is not associated to a clock.
WARNING: [IP_Flow 19-3158] Bus Interface 'AXI4_Stream_Slave': FREQ_HZ bus parameter missing from AXI interface when interface is not associated to a clock.
WARNING: [IP_Flow 19-11770] Clock interface 'AXI4_Lite_ACLK' has no FREQ_HZ parameter.
WARNING: [IP_Flow 19-5661] Bus Interface 'IPCORE_CLK' does not have any bus interfaces associated with it.
WARNING: [IP_Flow 19-11770] Clock interface 'IPCORE_CLK' has no FREQ_HZ parameter.
INFO: [IP_Flow 19-2181] Payment Required is not set for this core.
INFO: [IP_Flow 19-2187] The Product Guide file is missing.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Create_TDATA.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Create_TDATA.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Compute_Power.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Compute_Power.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_MATLAB_Function.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_MATLAB_Function.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Local_Peak.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Local_Peak.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Discrete_FIR_Filter.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Discrete_FIR_Filter.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Detect_Pulse.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Detect_Pulse.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Latch_Peak.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_Latch_Peak.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_TDATA_conversions.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_TDATA_conversions.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_PulseDetector.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_src_PulseDetector.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_reset_sync.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_reset_sync.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_dut.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_dut.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_SimpleDualPortRAM_generic.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_SimpleDualPortRAM_generic.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_fifo_data_OUT.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_fifo_data_OUT.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_SimpleDualPortRAM_singlebit.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_SimpleDualPortRAM_singlebit.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_fifo_TLAST_OUT.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_fifo_TLAST_OUT.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi4_stream_master.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi4_stream_master.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_fifo_data.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_fifo_data.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi4_stream_slave.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi4_stream_slave.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_addr_decoder.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_addr_decoder.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi_lite_module.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi_lite_module.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi_lite.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip_axi_lite.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip.v" already exists in file group "xilinx_anylanguagesynthesis", cannot add it again.
WARNING: [IP_Flow 19-1971] File named "hdl/PulseDetectorAXI_ip.v" already exists in file group "xilinx_anylanguagebehavioralsimulation", cannot add it again.
INFO: [Common 17-206] Exiting Vivado at Wed Jul 17 14:49:48 2024...

Elapsed time is 61.5038 seconds.

### Workflow complete.

This places the resulting HDL IP files into rtl_with_axi_protocols/hdlsrc/pulsedetector_tb.

Override the Necessary UVM Components

The UVM files to replace the original DUT are in overrides_AXIDUT. There is no need to modify any of the generated files from the original uvmbuild invocation.

To use an RTL DUT, you must substitute pieces of the UVM testbench, as highlighted in pink.

UVM testbench block diagram with the driver, monitor, DUT, and AXI interface highlighted in pink.

Simulate the UVM Testbench with AXI RTL DUT

Execute the testbench with the new RTL DUT to verify that the UVM execution matches the Simulink execution. Because the sequence is parameterized with the SNR input port, its default value is 0.0 in UVM. To properly compare the simulation runs, we need to change its default value to 2.0 (which has a bit value of 0b10_000000), to match Simulink; this can be done via a plusarg that we pass to the script via an environment variable.

We have many new RTL files to compile and we must override the top level design unit. We pass these updates to the script through environment variables.

cd uvm_build/pulsedetector_tb_uvm_testbench/top

setenv UVM_TOP_MODULE mw_PulseDetector_AXIRTL_top
setenv EXTRA_UVM_COMP_ARGS '-f ../../../overrides_AXIDUT/extra_comp_args.f'
setenv EXTRA_UVM_SIM_ARGS '+SNR_default_inp_val=10000000 +UVM_TESTNAME=mw_PulseDetector_AXIRTL_test'
switch current_simulator
    case 'Questa',     ! vsim -c -do run_tb_mq.do
    case 'Questa_gui', ! vsim -do run_tb_mq.do
    case 'Xcelium',    ! ./run_tb_xcelium.sh
    case 'VCS',        ! ./run_tb_vcs.sh
end
Reading pref.tcl

# 2022.2

# do run_tb_mq.do
# -f ../../../overrides_AXIDUT/extra_comp_args.f
# +SNR_default_inp_val=10000000 +UVM_TESTNAME=mw_PulseDetector_AXIRTL_test
# ** Warning: (vlib-34) Library already exists at "work".
# Errors: 0, Warnings: 1
# QuestaSim-64 vlog 2022.2 Compiler 2022.04 Apr 25 2022
# Start time: 14:49:58 on Jul 17,2024
# vlog -timescale 1ns/1ns ../DPI_dut/PulseDetector_dpi_pkg.sv ../sequence/GenPulse_dpi_pkg.sv ../scoreboard/CheckDetection_dpi_pkg.sv ../driver/InputDriver_dpi_pkg.sv ../monitor/OutputMonitor_dpi_pkg.sv ../predictor/PulseDetectorRef_dpi_pkg.sv pulsedetector_tb_pkg.sv -f ../../../overrides_AXIDUT/extra_comp_args.f "+define+MG_SIM"
# -- Compiling package PulseDetector_dpi_pkg
# -- Compiling package GenPulse_dpi_pkg
# -- Compiling package CheckDetection_dpi_pkg
# -- Compiling package InputDriver_dpi_pkg
# -- Compiling package OutputMonitor_dpi_pkg
# -- Compiling package PulseDetectorRef_dpi_pkg
# ** Note: (vlog-2286) pulsedetector_tb_pkg.sv(5): Using implicit +incdir+D:/3rdparty/R2023a/8709182/share/Questasim/Win/uvm-1.1d/../verilog_src/uvm-1.1d/src from import uvm_pkg
# -- Compiling package pulsedetector_tb_pkg
# -- Importing package mtiUvm.uvm_pkg (uvm-1.1d Built-in)
# -- Importing package GenPulse_dpi_pkg
# -- Importing package CheckDetection_dpi_pkg
# -- Importing package PulseDetectorRef_dpi_pkg
# -- Importing package InputDriver_dpi_pkg
# -- Importing package OutputMonitor_dpi_pkg
# -- Compiling module PulseDetectorAXI_ip_src_Create_TDATA
# -- Compiling module PulseDetectorAXI_ip_src_Compute_Power
# -- Compiling module PulseDetectorAXI_ip_src_MATLAB_Function
# -- Compiling module PulseDetectorAXI_ip_src_Local_Peak
# -- Compiling module PulseDetectorAXI_ip_src_Detect_Pulse
# -- Compiling module PulseDetectorAXI_ip_src_Latch_Peak
# -- Compiling module PulseDetectorAXI_ip_src_TDATA_conversions
# -- Compiling module PulseDetectorAXI_ip_src_PulseDetector
# -- Compiling module PulseDetectorAXI_ip_reset_sync
# -- Compiling module PulseDetectorAXI_ip_dut
# -- Compiling module PulseDetectorAXI_ip_SimpleDualPortRAM_generic
# -- Compiling module PulseDetectorAXI_ip_fifo_data_OUT
# -- Compiling module PulseDetectorAXI_ip_SimpleDualPortRAM_singlebit
# -- Compiling module PulseDetectorAXI_ip_fifo_TLAST_OUT
# -- Compiling module PulseDetectorAXI_ip_axi4_stream_master
# -- Compiling module PulseDetectorAXI_ip_fifo_data
# -- Compiling module PulseDetectorAXI_ip_axi4_stream_slave
# -- Compiling module PulseDetectorAXI_ip_addr_decoder
# -- Compiling module PulseDetectorAXI_ip_axi_lite_module
# -- Compiling module PulseDetectorAXI_ip_axi_lite
# -- Compiling module PulseDetectorAXI_ip
# -- Compiling package pulsedetector_tb_extension_pkg
# -- Importing package pulsedetector_tb_pkg
# ** Warning: ** while parsing file included at ../../../overrides_AXIDUT/mw_PulseDetector_AXIRTL_top.sv(4)
# ** at ../DPI_dut/PulseDetector_dpi.sv(15): (vlog-13314) Defaulting port 'coeff_in' kind to 'var' rather than 'wire' due to default compile option setting of -svinputport=relaxed.
# -- Compiling package mw_PulseDetector_AXIRTL_top_sv_unit
# -- Importing package PulseDetector_dpi_pkg
# -- Importing package pulsedetector_tb_extension_pkg
# -- Compiling module PulseDetector_dpi
# ** Warning: ../DPI_dut/PulseDetector_dpi.sv(15): (vlog-13314) Defaulting port 'coeff_in' kind to 'var' rather than 'wire' due to default compile option setting of -svinputport=relaxed.
# -- Compiling interface mw_PulseDetector_AXIRTL_if
# -- Compiling interface mw_PulseDetector_if
# -- Compiling module mw_PulseDetector_AXIRTL_top
#
# Top level modules:
# 	PulseDetector_dpi
# 	mw_PulseDetector_AXIRTL_top
# End time: 14:50:00 on Jul 17,2024, Elapsed time: 0:00:02
# Errors: 0, Warnings: 2
# vsim "+SNR_default_inp_val=10000000" "+UVM_TESTNAME=mw_PulseDetector_AXIRTL_test" -L work -voptargs="+acc" -sv_lib ../DPI_dut/PulseDetector_win64 -sv_lib ../sequence/GenPulse_win64 -sv_lib ../scoreboard/CheckDetection_win64 -sv_lib ../driver/InputDriver_win64 -sv_lib ../monitor/OutputMonitor_win64 -sv_lib ../predictor/PulseDetectorRef_win64 "+UVM_TESTNAME=mw_PulseDetector_test" mw_PulseDetector_AXIRTL_top "+define+MG_SIM"
# Start time: 14:50:00 on Jul 17,2024
# ** Note: (vsim-3812) Design is being optimized...
# ** Warning: (vopt-10587) Some optimizations are turned off because the +acc switch is in effect. This will cause your simulation to run slowly. Please use -access/-debug to maintain needed visibility.
# ** Note: (vopt-143) Recognized 2 FSMs in module "PulseDetectorAXI_ip_axi_lite_module(fast)".
# ** Note: (vsim-12126) Error and warning message counts have been restored: Errors=0, Warnings=1.
# //  Questa Sim-64
# //  Version 2022.2 win64 Apr 25 2022
# //
# //  Copyright 1991-2022 Mentor Graphics Corporation
# //  All Rights Reserved.
# //
# //  QuestaSim and its associated documentation contain trade
# //  secrets and commercial or financial information that are the property of
# //  Mentor Graphics Corporation and are privileged, confidential,
# //  and exempt from disclosure under the Freedom of Information Act,
# //  5 U.S.C. Section 552. Furthermore, this information
# //  is prohibited from disclosure under the Trade Secrets Act,
# //  18 U.S.C. Section 1905.
# //
# Loading sv_std.std
# Loading work.mw_PulseDetector_AXIRTL_if(fast)
# Loading work.mw_PulseDetector_if(fast)
# Loading work.OutputMonitor_dpi_pkg(fast)
# Loading work.InputDriver_dpi_pkg(fast)
# Loading work.PulseDetectorRef_dpi_pkg(fast)
# Loading work.CheckDetection_dpi_pkg(fast)
# Loading work.GenPulse_dpi_pkg(fast)
# Loading mtiUvm.uvm_pkg(fast)
# Loading work.pulsedetector_tb_pkg(fast)
# Loading work.pulsedetector_tb_extension_pkg(fast)
# Loading work.PulseDetector_dpi_pkg(fast)
# Loading work.mw_PulseDetector_AXIRTL_top_sv_unit(fast)
# Loading mtiUvm.questa_uvm_pkg(fast)
# Loading work.mw_PulseDetector_AXIRTL_top(fast)
# Loading work.mw_PulseDetector_if(fast__2)
# Loading work.mw_PulseDetector_AXIRTL_if(fast__2)
# Loading work.PulseDetectorAXI_ip(fast)
# Loading work.PulseDetectorAXI_ip_reset_sync(fast)
# Loading work.PulseDetectorAXI_ip_axi_lite(fast)
# Loading work.PulseDetectorAXI_ip_addr_decoder(fast)
# Loading work.PulseDetectorAXI_ip_axi_lite_module(fast)
# Loading work.PulseDetectorAXI_ip_axi4_stream_slave(fast)
# Loading work.PulseDetectorAXI_ip_fifo_data(fast)
# Loading work.PulseDetectorAXI_ip_SimpleDualPortRAM_generic(fast)
# Loading work.PulseDetectorAXI_ip_dut(fast)
# Loading work.PulseDetectorAXI_ip_src_PulseDetector(fast)
# Loading work.PulseDetectorAXI_ip_src_TDATA_conversions(fast)
# Loading work.PulseDetectorAXI_ip_src_Detect_Pulse(fast)
# Loading work.PulseDetectorAXI_ip_src_Compute_Power(fast)
# Loading work.PulseDetectorAXI_ip_src_Local_Peak(fast)
# Loading work.PulseDetectorAXI_ip_src_MATLAB_Function(fast)
# Loading work.PulseDetectorAXI_ip_src_Latch_Peak(fast)
# Loading work.PulseDetectorAXI_ip_src_Create_TDATA(fast)
# Loading work.PulseDetectorAXI_ip_axi4_stream_master(fast)
# Loading work.PulseDetectorAXI_ip_fifo_data_OUT(fast)
# Loading work.PulseDetectorAXI_ip_SimpleDualPortRAM_generic(fast__1)
# Loading work.PulseDetectorAXI_ip_fifo_TLAST_OUT(fast)
# Loading work.PulseDetectorAXI_ip_SimpleDualPortRAM_singlebit(fast)
# Loading .\../DPI_dut/PulseDetector_win64.dll
# Loading .\../sequence/GenPulse_win64.dll
# Loading .\../scoreboard/CheckDetection_win64.dll
# Loading .\../driver/InputDriver_win64.dll
# Loading .\../monitor/OutputMonitor_win64.dll
# Loading .\../predictor/PulseDetectorRef_win64.dll
# Loading D:/3rdparty/R2023a/8709182/share/Questasim/Win/uvm-1.1d\win64\uvm_dpi.dll
# ----------------------------------------------------------------
# UVM-1.1d
# (C) 2007-2013 Mentor Graphics Corporation
# (C) 2007-2013 Cadence Design Systems, Inc.
# (C) 2006-2013 Synopsys, Inc.
# (C) 2011-2013 Cypress Semiconductor Corp.
# ----------------------------------------------------------------
#
#   ***********       IMPORTANT RELEASE NOTES         ************
#
#   You are using a version of the UVM library that has been compiled
#   with `UVM_NO_DEPRECATED undefined.
#   See http://www.eda.org/svdb/view.php?id=3313 for more details.
#
#   You are using a version of the UVM library that has been compiled
#   with `UVM_OBJECT_MUST_HAVE_CONSTRUCTOR undefined.
#   See http://www.eda.org/svdb/view.php?id=3770 for more details.
#
#       (Specify +UVM_NO_RELNOTES to turn off this notice)
#
# UVM_INFO verilog_src/questa_uvm_pkg-1.2/src/questa_uvm_pkg.sv(277) @ 0: reporter [Questa UVM] QUESTA_UVM-1.2.3
# UVM_INFO verilog_src/questa_uvm_pkg-1.2/src/questa_uvm_pkg.sv(278) @ 0: reporter [Questa UVM]  questa_uvm::init(+struct)
# UVM_WARNING @ 0: reporter [MULTTST] Multiple (2) +UVM_TESTNAME arguments provided on the command line.  'mw_PulseDetector_AXIRTL_test' will be used.  Provided list: mw_PulseDetector_AXIRTL_test, mw_PulseDetector_test.
# UVM_INFO @ 0: reporter [RNTST] Running test mw_PulseDetector_AXIRTL_test...
# UVM_INFO @ 0: reporter [UVMTOP] UVM testbench topology:
# -------------------------------------------------------------------------------------------------------------
# Name                                                       Type                                   Size  Value
# -------------------------------------------------------------------------------------------------------------
# uvm_test_top                                               mw_PulseDetector_AXIRTL_test           -     @477
#   env                                                      mw_PulseDetector_environment           -     @484
#     PulseDetector_agent                                    mw_PulseDetector_AXIRTL_agent          -     @500
#       ap                                                   uvm_analysis_port                      -     @631
#       ap_input_pred                                        uvm_analysis_port                      -     @639
#       drv                                                  mw_PulseDetector_AXIRTL_driver         -     @647
#         rsp_port                                           uvm_analysis_port                      -     @662
#         seq_item_port                                      uvm_seq_item_pull_port                 -     @654
#       mon                                                  mw_PulseDetector_AXIRTL_monitor        -     @670
#         mw_PulseDetector_monitor_analysis_port             uvm_analysis_port                      -     @677
#       mon_input                                            mw_PulseDetector_AXIRTL_monitor_input  -     @685
#         mw_PulseDetector_monitor_input_analysis_port_pred  uvm_analysis_port                      -     @692
#       sqr                                                  mw_PulseDetector_sequencer             -     @522
#         rsp_export                                         uvm_analysis_export                    -     @529
#         seq_item_export                                    uvm_seq_item_pull_imp                  -     @623
#         arbitration_queue                                  array                                  0     -
#         lock_queue                                         array                                  0     -
#         num_last_reqs                                      integral                               32    'd1
#         num_last_rsps                                      integral                               32    'd1
#     PulseDetector_predictor                                mw_PulseDetector_predictor             -     @514
#       aexp                                                 uvm_analysis_export                    -     @709
#       ap                                                   uvm_analysis_port                      -     @764
#       mw_PulseDetector_predictor_fifo                      uvm_tlm_analysis_fifo #(T)             -     @717
#         analysis_export                                    uvm_analysis_imp                       -     @756
#         get_ap                                             uvm_analysis_port                      -     @748
#         get_peek_export                                    uvm_get_peek_imp                       -     @732
#         put_ap                                             uvm_analysis_port                      -     @740
#         put_export                                         uvm_put_imp                            -     @724
#     PulseDetector_scoreboard                               mw_PulseDetector_scoreboard            -     @507
#       mw_PulseDetector_agent_fifo                          uvm_tlm_analysis_fifo #(T)             -     @796
#         analysis_export                                    uvm_analysis_imp                       -     @835
#         get_ap                                             uvm_analysis_port                      -     @827
#         get_peek_export                                    uvm_get_peek_imp                       -     @811
#         put_ap                                             uvm_analysis_port                      -     @819
#         put_export                                         uvm_put_imp                            -     @803
#       mw_PulseDetector_agent_fifo_input_pred               uvm_tlm_analysis_fifo #(T)             -     @843
#         analysis_export                                    uvm_analysis_imp                       -     @882
#         get_ap                                             uvm_analysis_port                      -     @874
#         get_peek_export                                    uvm_get_peek_imp                       -     @858
#         put_ap                                             uvm_analysis_port                      -     @866
#         put_export                                         uvm_put_imp                            -     @850
#       mw_PulseDetector_agent_imp                           uvm_analysis_export                    -     @780
#       mw_PulseDetector_agent_imp_input_pred                uvm_analysis_export                    -     @788
# -------------------------------------------------------------------------------------------------------------
#
# ** Info: Gathering coverage for 2 Simulink verify() calls.
#    Time: 0 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.initVerifyInfo File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 261
# ** Info: Model verify() covergroup 0 properties:
#         Covergroup instance name: pulsedetector_tb:757
#         Coverage count goal     : 1
#         Model location          : Simulink.ID.hilite('pulsedetector_tb:757')
#         Block path              : CheckDetection/CheckDetection/Check
# Static Range
#         Step name               : inferred verify call
#         Verify ID               : CheckDetection/CheckDetection/Check
# Static Range
#    Time: 0 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.initVerifyInfo File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 265

[FrameNum=  0] Peak found in Impl but not in Ref.

[FrameNum=  1] PREDICTED: Peak location=2163.000000, mag-squared=0.280 using global max

[FrameNum=  1] ACTUAL   : Peak location=2169.000000, mag-squared=0.285 using global max

[FrameNum=  1] DIFF     : Peak location=6, mag-squared=0.004 (1.551%)

[FrameNum=  2] PREDICTED: Peak location=2163.000000, mag-squared=0.200 using global max

[FrameNum=  2] ACTUAL   : Peak location=2168.000000, mag-squared=0.194 using global max

[FrameNum=  2] DIFF     : Peak location=5, mag-squared=0.006 (2.881%)

[FrameNum=  3] PREDICTED: Peak location=2163.000000, mag-squared=0.224 using global max

[FrameNum=  3] ACTUAL   : Peak location=2167.000000, mag-squared=0.234 using global max

[FrameNum=  3] DIFF     : Peak location=4, mag-squared=0.010 (4.623%)

[FrameNum=  4] PREDICTED: Peak location=2163.000000, mag-squared=0.200 using global max

[FrameNum=  4] ACTUAL   : Peak location=2166.000000, mag-squared=0.209 using global max

[FrameNum=  4] DIFF     : Peak location=3, mag-squared=0.009 (4.346%)

[FrameNum=  5] PREDICTED: Peak location=2163.000000, mag-squared=0.255 using global max

[FrameNum=  5] ACTUAL   : Peak location=2165.000000, mag-squared=0.257 using global max

[FrameNum=  5] DIFF     : Peak location=2, mag-squared=0.002 (0.735%)

[FrameNum=  6] PREDICTED: Peak location=2163.000000, mag-squared=0.241 using global max

[FrameNum=  6] ACTUAL   : Peak location=2164.000000, mag-squared=0.250 using global max

[FrameNum=  6] DIFF     : Peak location=1, mag-squared=0.009 (3.660%)

[FrameNum=  7] PREDICTED: Peak location=2163.000000, mag-squared=0.241 using global max

[FrameNum=  7] ACTUAL   : Peak location=2163.000000, mag-squared=0.243 using global max

[FrameNum=  7] DIFF     : Peak location=0, mag-squared=0.002 (0.790%)
# ** Info: Model verify() covergroup 1 properties:
#         Covergroup instance name: pulsedetector_tb:744
#         Coverage count goal     : 1
#         Model location          : Simulink.ID.hilite('pulsedetector_tb:744')
#         Block path              : CheckDetection/CheckDetection/Check Static
# Upper Bound
#         Step name               : inferred verify call
#         Verify ID               : CheckDetection/CheckDetection/Check Static
# Upper Bound
#    Time: 0 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.initVerifyInfo File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 265
# ** Error: pulsedetector_tb:744:
#    Time: 54885 ns  Scope: pulsedetector_tb_pkg.mw_PulseDetector_scoreboard.run_phase File: ../scoreboard/mw_PulseDetector_scoreboard.sv Line: 84
# ** Error: pulsedetector_tb:744: At step 'inferred verify call' verify id 'CheckDetection/CheckDetection/Check Static
# Upper Bound' Failed
#    Time: 54885 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.checkVerifyStatus File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 384

[FrameNum=  8] PREDICTED: Peak location=2163.000000, mag-squared=0.225 using global max

[FrameNum=  8] ACTUAL   : Peak location=2162.000000, mag-squared=0.231 using global max

[FrameNum=  8] DIFF     : Peak location=1, mag-squared=0.007 (3.076%)

[FrameNum=  9] PREDICTED: Peak location=2163.000000, mag-squared=0.239 using global max

[FrameNum=  9] ACTUAL   : Peak location=2161.000000, mag-squared=0.254 using global max

[FrameNum=  9] DIFF     : Peak location=2, mag-squared=0.015 (6.083%)

[FrameNum= 10] PREDICTED: Peak location=2163.000000, mag-squared=0.225 using global max

[FrameNum= 10] ACTUAL   : Peak location=2160.000000, mag-squared=0.230 using global max

[FrameNum= 10] DIFF     : Peak location=3, mag-squared=0.005 (2.242%)

[FrameNum= 11] PREDICTED: Peak location=2163.000000, mag-squared=0.207 using global max

[FrameNum= 11] ACTUAL   : Peak location=2159.000000, mag-squared=0.221 using global max

[FrameNum= 11] DIFF     : Peak location=4, mag-squared=0.014 (6.697%)

[FrameNum= 12] PREDICTED: Peak location=2163.000000, mag-squared=0.265 using global max

[FrameNum= 12] ACTUAL   : Peak location=2158.000000, mag-squared=0.260 using global max

[FrameNum= 12] DIFF     : Peak location=5, mag-squared=0.005 (2.014%)
# ** Error: pulsedetector_tb:744:
#    Time: 548715 ns  Scope: pulsedetector_tb_pkg.mw_PulseDetector_scoreboard.run_phase File: ../scoreboard/mw_PulseDetector_scoreboard.sv Line: 84
# ** Error: pulsedetector_tb:744: At step 'inferred verify call' verify id 'CheckDetection/CheckDetection/Check Static
# Upper Bound' Failed
#    Time: 548715 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.checkVerifyStatus File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 384
# ** Error: pulsedetector_tb:744:
#    Time: 658455 ns  Scope: pulsedetector_tb_pkg.mw_PulseDetector_scoreboard.run_phase File: ../scoreboard/mw_PulseDetector_scoreboard.sv Line: 84
# ** Error: pulsedetector_tb:744: At step 'inferred verify call' verify id 'CheckDetection/CheckDetection/Check Static
# Upper Bound' Failed
#    Time: 658455 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.checkVerifyStatus File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 384
# UVM_INFO verilog_src/uvm-1.1d/src/base/uvm_objection.svh(1267) @ 713385: reporter [TEST_DONE] 'run' phase is ready to proceed to the 'extract' phase
# ** Info: Instance coverage for verify 'pulsedetector_tb:757', coverpoint 'pass_cp': metric=100.00 (Pass:    13), at_least=   1 (   COVERED)
#    Time: 713385 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.reportVerifyCoverage File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 406
# ** Info: Instance coverage for verify 'pulsedetector_tb:744', coverpoint 'pass_cp': metric=100.00 (Pass:    10), at_least=   1 (   COVERED)
#    Time: 713385 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.reportVerifyCoverage File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 406
# ** Info: Overall coverage for CheckDetection_dpi_verify_calls: metric=100.00 (   COVERED)
#    Time: 713385 ns  Scope: CheckDetection_dpi_pkg.VerifyInterfaceT.reportVerifyCoverage File: ../scoreboard/CheckDetection_dpi_pkg.sv Line: 413
#
# --- UVM Report Summary ---
#
# ** Report counts by severity
# UVM_INFO :    5
# UVM_WARNING :    1
# UVM_ERROR :    0
# UVM_FATAL :    0
# ** Report counts by id
# [MULTTST]     1
# [Questa UVM]     2
# [RNTST]     1
# [TEST_DONE]     1
# [UVMTOP]     1
# ** Note: $finish    : D:/3rdparty/R2023a/8709182/share/Questasim/Win/win64/../verilog_src/uvm-1.1d/src/base/uvm_root.svh(430)
#    Time: 713385 ns  Iteration: 61  Instance: /mw_PulseDetector_AXIRTL_top
# End time: 14:50:40 on Jul 17,2024, Elapsed time: 0:00:40
# Errors: 6, Warnings: 1
cd ../../..

The waveforms are shown below and show a different timing for exercising the design. Instead of a steady stream of always valid data, for each frame of 5000 signal samples, the 64 coefficients are first programmed via the processor interface, then the 5000 samples are streamed.

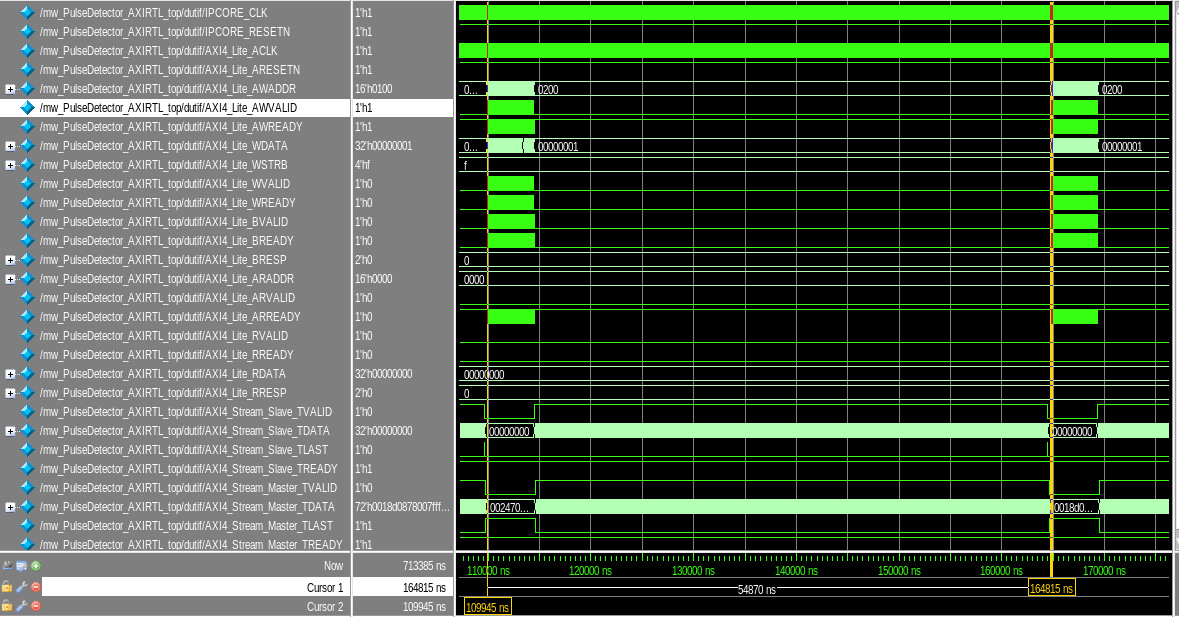

This first waveform shows a cursor at the start of one frame and the other cursor at the start of the next frame.


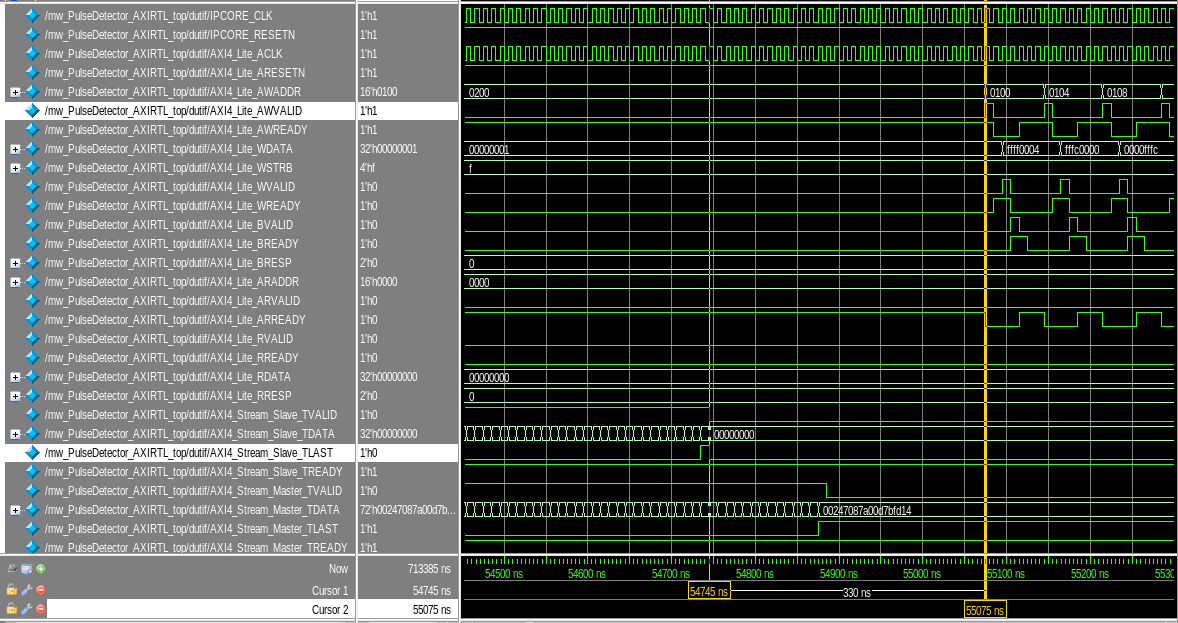

This next waveform shows a detail view with a cursor at the end of one frame at TLAST and the other cursor at the beginning of the next frame when the next set of coefficients is being sent via the processor interface.


Conclusion and Next Steps

This example has shown how a design and testbench developed in Simulink can be used to generate a fully executable UVM testbench. The uvmbuild command automates the generation, compilation, and integration of key components into the UVM framework.

HDL verification engineers can confirm overall coverage from Simulink and augment the coverage with their own library of native UVM sequences.

They can also substitute a behavioral design from Simulink with an RTL design that is wrapped in hardware protocols such as AXI4 with no changes to the original sequence generator and response checkers.

See Also

| (HDL Coder)

Related Topics
