Estimate Hammerstein-Wiener Models at the Command Line

You can estimate Hammerstein-Wiener models after performing the following tasks:

• Prepare your data, as described in Preparing Data for Nonlinear Identification.

• (Optional) Choose a nonlinearity estimator in Available Nonlinearity Estimators for Hammerstein-Wiener Models.

• (Optional) Estimate or construct an input-output polynomial model of Output-Error (OE) structure (idpoly) or a state-space model with no disturbance component (idss with K=0) for initialization of Hammerstein-Wiener model. See Initialize Hammerstein-Wiener Estimation Using Linear Model.

Estimate Model Using nlhw

Use nlhw to both construct and estimate a Hammerstein-Wiener model. After each estimation, validate the model by comparing it to other models and simulating or predicting the model response.

Basic Estimation

Start with the simplest estimation using m = nlhw(data,[nb nf nk]). For example:

load iddata3;
% nb = nf = 2 and nk = 1
m = nlhw(z3,[2 2 1])

m =

Hammerstein-Wiener model with 1 output and 1 input

Linear transfer function corresponding to the orders nb = 2, nf = 2, nk = 1

Input nonlinearity: Piecewise linear with 10 break-points
Output nonlinearity: Piecewise linear with 10 break-points
Sample time: 1 seconds

Status:
Estimated using NLHW on time domain data "z3".
Fit to estimation data: 75.31%
FPE: 2.019, MSE: 1.472

The second input argument [nb nf nk] sets the order of the linear transfer function, where nb is the number of zeros plus 1, nf is the number of poles, and nk is the input delay. By default, both the input and output nonlinearity estimators are piecewise linear functions (see the idPiecewiseLinear reference page). m is an idnlhw object.

For MIMO systems, nb, nf, and nk are ny-by-nu matrices. See the nlhw reference page for more information about MIMO estimation.

Configure Nonlinearity Estimators

You can specify a different nonlinearity estimator than the default piecewise linear estimators.

m = nlhw(data,[nb,nf,nk],InputNL,OutputNL)

InputNL and OutputNL are nonlinearity estimator objects. If your input signal is binary, set InputNL to idUnitGain.

To use nonlinearity estimators with default settings, specify InputNL and OutputNL using constructors with no input arguments or their names as character vectors (such as 'idWaveletNetwork' for wavelet network or 'idSigmoidNetwork' for sigmoid network).

load iddata3;
m = nlhw(z3,[2 2 1],'idSigmoidNetwork','idDeadZone');

If you need to configure the properties of a nonlinearity estimator, use its object representation. For example, to estimate a Hammerstein-Wiener model that uses saturation as its input nonlinearity and one-dimensional polynomial of degree 3 as its output nonlinearity:

m = nlhw(z3,[2 2 1],'idSaturation',idPolynomial1D(3));

The third input 'idSaturation' specifies the saturation nonlinearity with default property values. idPolynomial1D(3) creates a one-dimensional polynomial object of degree 3. Of course, you could have used the constructor idSaturation directly in place of the character vector 'idSaturation'.

For MIMO models, specify the nonlinearities using objects, or cell array of character vectors representing the nonlinearity names. If single name (character vector) used, the same value is applied to all the channels.

This table summarizes values that specify the nonlinearity estimators.

Nonlinearity	Value (Default Nonlinearity Configuration)	Class
Piecewise linear (default)	'idPiecewiseLinear'	idPiecewiseLinear
One layer sigmoid network	'idSigmoidNetwork'	idSigmoidNetwork
Wavelet network	'idWaveletNetwork'	idWaveletNetwork
Saturation	'idSaturation'	idSaturation
Dead zone	'idDeadZone'	idDeadZone
One- dimensional polynomial	'idPolynomial1D'	idPolynomial1D
Unit gain	'idUnitGain' or [ ]	idUnitGain
Neural Network	'idNeuralNetwork'	idNeuralNetwork

Additional available nonlinearities include custom networks that you create. Specify a custom network by defining a function called gaussunit.m, as described in the idCustomNetwork reference page. Define the custom network object CNetw as:

CNetw = idCustomNetwork(@gaussunit);
m = nlhw(z3,[2 2 1],'idSaturation',CNetw);

For more information, see Available Nonlinearity Estimators for Hammerstein-Wiener Models.

Exclude Input or Output Nonlinearity

Exclude a nonlinearity for a specific channel by specifying the idUnitGain value for the InputNonlinearity or OutputNonlinearity properties.

If the input signal is binary, set InputNL to idUnitGain.

For more information about model estimation and properties, see the nlhw and idnlhw reference pages.

For a description of each nonlinearity estimator, see Available Nonlinearity Estimators for Hammerstein-Wiener Models.

Iteratively Refine Model

Estimate a Hammerstein-Wiener model and then use nlhw command to iteratively refine the model.

load iddata3;
m1 = nlhw(z3,[2 2 1],idSigmoidNetwork, idWaveletNetwork);
m2 = nlhw(z3,m1);

Alternatively, use pem to refine the model.

m2 = pem(z3,m1);

Check the search termination criterion in m.Report.Termination.WhyStop. If WhyStop indicates that the estimation reached the maximum number of iterations, try repeating the estimation and possibly specifying a larger value for the MaxIterations.

Run 30 more iterations starting at model m1.

opt = nlhwOptions;
opt.SearchOptions.MaxIterations = 30;
m2 = nlhw(z3,m1,opt);

When the m.Report.Termination.WhyStop value is Near (local) minimum (norm(g) < tol), or No improvement along the search direction with line search, validate your model to see if this model adequately fits the data. If not, the solution might be stuck in a local minimum of the cost-function surface. Try adjusting the SearchOptions.Tolerance or the SearchMethod option of the nlhw option set, and repeat the estimation.

You can also try perturbing the parameters of the last model using init, and then refine the model using nlhw command.

Randomly perturb parameters of original model m1 about nominal values.

m1p = init(m1);

Estimate the parameters of perturbed model.

M2 = nlhw(z3,m1p);

Note that using init does not guarantee a better solution on further refinement.

Improve Estimation Results Using Initial States

If your estimated Hammerstein-Wiener model provides a poor fit to measured data, you can repeat the estimation using the initial state values estimated from the data. By default, the initial states corresponding to the linear block of the Hammerstein-Wiener model are zero.

To specify estimating initial states during model estimation:

load iddata3;
opt = nlhwOptions('InitialCondition', 'estimate');
m = nlhw(z3,[2 2 1],idSigmoidNetwork,[],opt);

Troubleshoot Estimation

If you do not get a satisfactory model after many trials with various model structures and estimation options, it is possible that the data is poor. For example, your data might be missing important input or output variables and does not sufficiently cover all the operating points of the system.

Nonlinear black-box system identification usually requires more data than linear model identification to gain enough information about the system. See also Troubleshooting Model Estimation.

Estimate Multiple Hammerstein-Wiener Models

This example shows how to estimate and compare multiple Hammerstein-Wiener models using measured input-output data.

Load estimation and validation data.

load twotankdata
z = iddata(y,u,0.2);
ze = z(1:1000);
zv = z(1001:3000);

Estimate several models using the estimation data ze and different model orders, delays, and nonlinearity settings.

m1 = nlhw(ze,[2 3 1]);
m2 = nlhw(ze,[2 2 3]);
m3 = nlhw(ze,[2 2 3],idPiecewiseLinear('NumberofUnits',13),idPiecewiseLinear('NumberofUnits',10));
m4 = nlhw(ze,[2 2 3],idSigmoidNetwork('NumberofUnits',2),idPiecewiseLinear('NumberofUnits',10));

An alternative way to perform the estimation is to configure the model structure first using idnlhw, and then estimate the model.

m5 = idnlhw([2 2 3],idDeadZone,idSaturation);
m5 = nlhw(ze,m5);

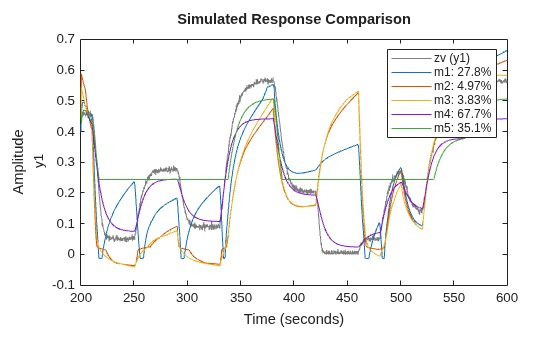

Compare the resulting models by plotting the model outputs and the measured output in validation data zv.

compare(zv,m1,m2,m3,m4,m5)

Improve a Linear Model Using Hammerstein-Wiener Structure

This example shows how to use the Hammerstein-Wiener model structure to improve a previously estimated linear model.

After estimating the linear model, insert it into the Hammerstein-Wiener structure that includes input or output nonlinearities.

Estimate a linear model.

load iddata1
LM = arx(z1,[2 2 1]);

Extract the transfer function coefficients from the linear model.

[Num,Den] = tfdata(LM);

Create a Hammerstein-Wiener model, where you initialize the linear block properties B and F using Num and Den, respectively.

nb = 1;       % In general, nb = ones(ny,nu)
              % ny is number of outputs and nu is number of inputs
nf = nb;
nk = 0;       % In general, nk = zeros(ny,nu)
              % ny is number of outputs and nu is number of inputs
M = idnlhw([nb nf nk],[],'idPiecewiseLinear');
M.B = Num;
M.F = Den;

Estimate the model coefficients, which refines the linear model coefficients in Num and Den.

M = nlhw(z1,M);

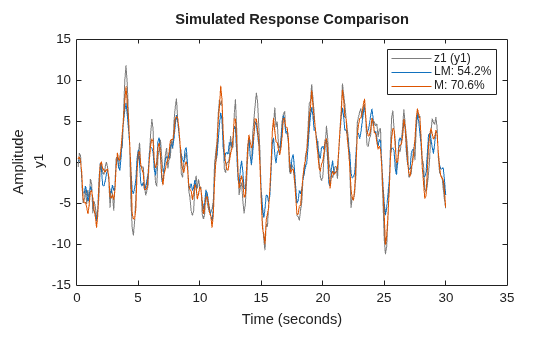

Compare responses of linear and nonlinear model against measured data.

compare(z1,LM,M);
