imbothat

Bottom-hat filtering

Syntax

J = imbothat(I,SE)
J = imbothat(I,nhood)

Description

example

J = imbothat(I,SE) performs morphological bottom-hat filtering on the grayscale or binary image I, returning the filtered image, J. Bottom-hat filtering computes the morphological closing of the image (using imclose) and then subtracts the original image from the result. SE is a single structuring element object returned by the strel or offsetstrel functions.

You optionally can perform the bottom-hat filtering using a GPU (requires Parallel Computing Toolbox™). For more information, see Image Processing on a GPU.

J = imbothat(I,nhood) bottom-hat filters the image I, where nhood is a matrix of 0s and 1s that specifies the structuring element neighborhood. This is equivalent to the syntax imbothat(I,strel(nhood)). The imbothat function determines the center element of the neighborhood by floor((size(nhood)+1)/2).

Examples

collapse all

Read image into the workspace and display it.

I = imread('pout.tif');
imshow(I)

Create a disk-shaped structuring element.

se = strel('disk',3);

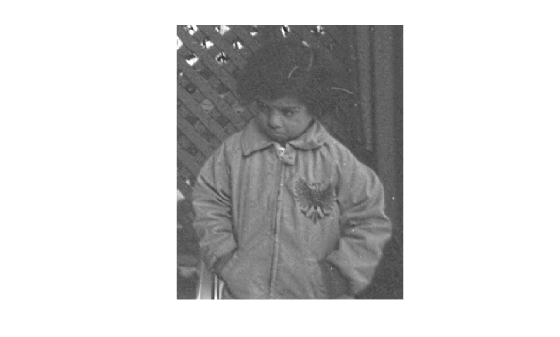

Add the original image I to the top-hat filtered image, and then subtract the bottom-hat filtered image.

J = imsubtract(imadd(I,imtophat(I,se)),imbothat(I,se));
figure
imshow(J)

Read the image into a gpuArray.

 original = gpuArray(imread('pout.tif'));

Create a disk-shaped structuring element, needed for morphological processing.

se = strel('disk',3);

Add the original image I to the top-hat filtered image, and then subtract the bottom-hat filtered image.

contrastFiltered = ...
       (original+imtophat(original,se))-imbothat(original,se);

Input Arguments

collapse all

Input image, specified as a grayscale image or binary image. I can have any dimension, and must be real and nonsparse.

To perform the bottom-hat filtering using a GPU, specify I as a gpuArray that contains an image of type uint8 or logical.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

Structuring element, specified as a single strel object or offsetstrel object. If the image I is data type logical, the structuring element must be flat.

If you perform the bottom-hat filtering using a GPU, then SE must be flat and two-dimensional.

Structuring element neighborhood, specified as a matrix of 0s and 1s.

Example: [0 1 0; 1 1 1; 0 1 0]

Output Arguments

collapse all

Bottom-hat filtered image, returned as a grayscale image or binary image. J has the same class as input image I.

If the filtering is performed using a GPU, then J is returned as a gpuArray that contains a grayscale or binary image of the same class as I.

Extended Capabilities

See Also

Functions

Objects

Introduced before R2006a
