2-D order-statistic filtering


B = ordfilt2(A,order,domain)
B = ordfilt2(A,order,domain,S)
B = ordfilt2(___,padopt)



B = ordfilt2(A,order,domain) replaces each element in A by the orderth element in the sorted set of neighbors specified by the nonzero elements in domain.

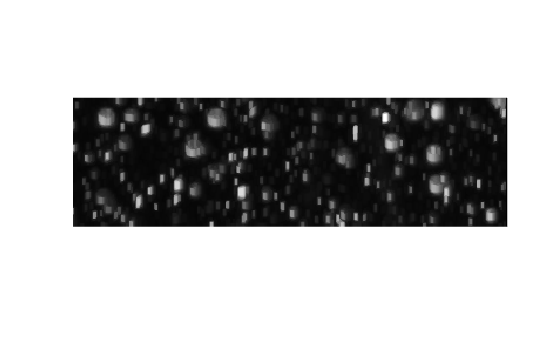

B = ordfilt2(A,order,domain,S) filters A, where ordfilt2 uses the values of S corresponding to the nonzero values of domain as additive offsets. You can use this syntax to implement grayscale morphological operations, including grayscale dilation and erosion.

B = ordfilt2(___,padopt) filters A, where padopt specifies how ordfilt2 pads the matrix boundaries.


collapse all

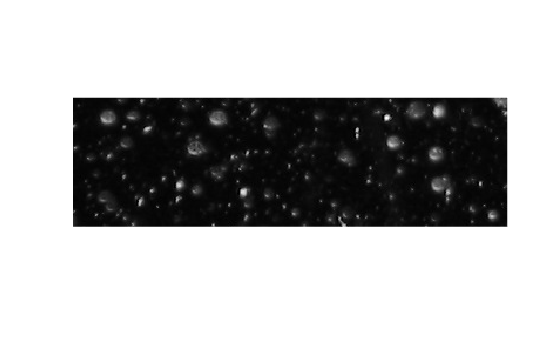

Read image into workspace and display it.

A = imread('snowflakes.png');

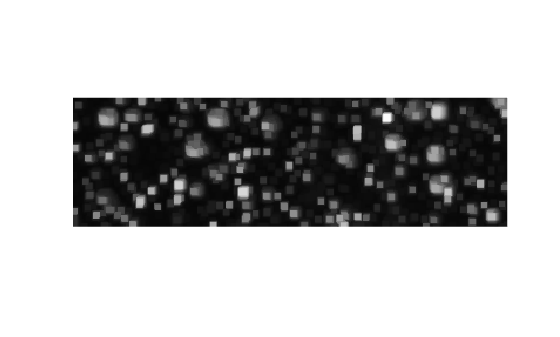

Filter the image and display the result.

B = ordfilt2(A,25,true(5));

Input Arguments

collapse all

Input matrix, specified as a 2-D, real, nonsparse, numeric or logical array.

Example: A = imread('snowflakes.png');

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

Element to replace the target pixel, specified as a real scalar integer.

Example: B = ordfilt2(A,25,true(5));

Data Types: double

Neighborhood, specified as a numeric or logical matrix, containing 1s and 0s. domain is equivalent to the structuring element used for binary image operations. The 1-valued elements define the neighborhood for the filtering operation. The following table gives examples of some common filters.

Type of Filtering OperationMATLAB codeNeighborhoodSample Image Data, Indicating Selected Element
Median filterB = ordfilt2(A,5,ones(3,3))
Minimum filterB = ordfilt2(A,1,ones(3,3))
Maximum filterB = ordfilt2(A,9,ones(3,3))
Minimum of north, east, south, and west neighborsB = ordfilt2(A,1,[0 1 0; 1 0 1; 0 1 0])

Example: B = ordfilt2(A,25,true(5));

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Additive offsets, specified as a matrix the same size as domain.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Padding option, specified as either of the following values:

'zeros'Pad array boundaries with 0’s.

Pad array with mirror reflections of itself.

Data Types: char | string

Output Arguments

collapse all

Output image, returned as a 2-D array of the same class as the input image A.


  • When working with large domain matrices that do not contain any zero-valued elements, ordfilt2 can achieve higher performance if A is in an integer data format (uint8, int8, uint16, int16). The gain in speed is larger for uint8 and int8 than for the 16-bit data types. For 8-bit data formats, the domain matrix must contain seven or more rows. For 16-bit data formats, the domain matrix must contain three or more rows and 520 or more elements.


[1] Haralick, Robert M., and Linda G. Shapiro, Computer and Robot Vision, Volume I, Addison-Wesley, 1992.

[2] Huang, T.S., G.J.Yang, and G.Y.Tang. "A fast two-dimensional median filtering algorithm.", IEEE transactions on Acoustics, Speech and Signal Processing, Vol ASSP 27, No. 1, February 1979
