ltePSBCHDRS
PSBCH demodulation reference signal
Description
[
returns a 144-by-1
complex column vector sequence containing PSBCH demodulation reference
signal (DM-RS) values and an associated information structure for
the specified UE settings structure. For more information, see PSBCH Demodulation Reference Signal.seq
,info
]
= ltePSBCHDRS(ue
)
Examples
Generate PSBCH DM-RS Sequence
Generate a PSBCH DM-RS sequence associated with both DM-RS SC-FDMA symbols in a subframe.
ue.NSLID = 170; [psbchdrs_seq,info] = ltePSBCHDRS(ue);

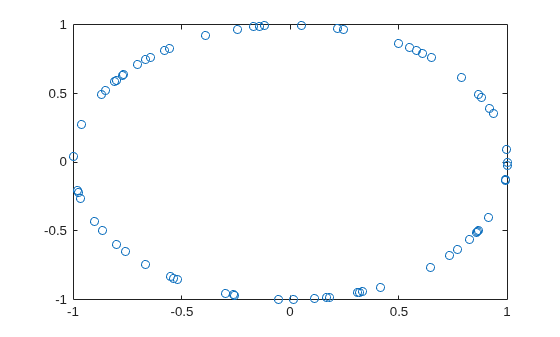

Plot the DM-RS sequence (real vs. imaginary).
plot(psbchdrs_seq,'o')
Input Arguments
ue
— User equipment settings
structure
User equipment settings, specified as a parameter structure containing this field:
SidelinkMode
— Sidelink mode
'D2D'
(default) | 'V2X'
| optional
Sidelink mode, specified as 'D2D'
or
'V2X'
.
Data Types: char
| string
NSLID
— Physical layer sidelink synchronization identity
integer from 0 to 355
Physical layer sidelink synchronization identity, specified as an integer from 0 to 355. ()
Data Types: double
Data Types: struct
Output Arguments
seq
— PSBCH DM-RS values
column vector
PSBCH DM-RS values, returned as a column vector. For the D2D sidelink mode,
seq
is a 144-length column containing the values
for each DM-RS symbol in each slot in a subframe. For V2X, it is a 216-by-1
complex column containing the concatenated values for the three DM- RS
symbols in a subframe.
Data Types: double
Complex Number Support: Yes
info
— PSBCH DM-RS information
structure
PSBCH DM-RS information about the intermediate variables used to create the DM-RS, returned as a parameter structure containing these fields:
SeqGroup
— Base sequence group number for each slot
two-column vector
Base sequence group number for each slot, returned as a two-column vector. (u)
SeqIdx
— Base sequence number for each slot
two-column vector
Base sequence number for each slot, returned as a two-column vector. (v)
RootSeq
— Root Zadoff-Chu sequence index for each slot
two-column vector
Root Zadoff-Chu sequence index for each slot, returned as a two-column vector. (q)
NCS
— Cyclic shift values for each slot
two-column vector
Cyclic shift values for each slot, returned as a two-column vector. ()
NZC
— Zadoff-Chu sequence length
integer
Zadoff-Chu sequence length, returned as an integer. ()
OrthSeq
— Orthogonal cover value for each slot
matrix
Orthogonal cover value for each slot, returned as a matrix. ()
Data Types: struct
More About
PSBCH Demodulation Reference Signal
The PSBCH demodulation reference signal (DM-RS) is transmitted alongside the
ltePSBCH
values in the central 72 resource elements and in two SC-FDMA
symbols in a synchronization subframe for D2D sidelink mode and three SC-FDMA symbols for
V2X.. For zero-based indexing, the SC-FDMA symbol indices are {3,10} for normal cyclic
prefix and {2,8} for extended cyclic prefix. These are the same symbols used by the PUSCH
DM-RS, see ltePUSCHDRSIndices
. For the V2X sidelink mode,
the symbol indices are {4,6,9}.
Note
The indicated symbol indices are based on TS 36.211, Section 9.8, but expanded from symbol index per slot to symbol index per subframe to align with the LTE Toolbox™ subframe orientation. For more information on mapping symbols to the resource element grid, see Resource Grid Indexing.
PSBCH Demodulation Reference Signal Indexing
Use the indexing function, ltePSBCHDRSIndices
, and the corresponding
sequence function, ltePSBCHDRS
,
to index the resource grid for any synchronization subframe number.
The indices are ordered as the PSBCH DM-RS symbols should be, applying
frequency-first mapping, into the two DM-RS SC-FDMA symbols. For more
information on mapping symbols to the resource element grid, see Resource Grid Indexing.
References
[1] 3GPP TS 36.211. “Evolved Universal Terrestrial Radio Access (E-UTRA); Physical Channels and Modulation.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network. URL: https://www.3gpp.org.
Version History
Introduced in R2016b
See Also
ltePSBCHDRSIndices
| ltePSBCH
| ltePSBCHDecode
| ltePSBCHIndices
