This example shows how to add lighting to terrain maps using the
lightm function. To achieve finer control over light
positions (for example, in small areas lit by several lights), you have to specify
light positions using projected coordinates because light objects are children of
axes and share their coordinate space.
Create a terrain map.
latlim = [ 41.20 41.95]; lonlim = [-70.95 -70.10]; cd dted\w071 % Note: Your absolute path may vary. samplefactor = 1; [capeterrain, caperef] = dted('n41.dt0', samplefactor, ... latlim, lonlim); capeterrain(capeterrain == 0) = -1; capecoast = shaperead('usastatehi', ... 'UseGeoCoords', true, ... 'BoundingBox', [lonlim' latlim']);

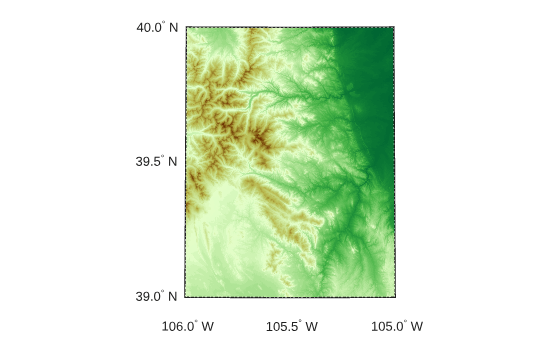

Construct a map of the region within the specified latitude and longitude limits.
figure ax = usamap(latlim,lonlim); geoshow(ax,capecoast,'FaceColor','none'); geoshow(ax,capeterrain,caperef,'DisplayType','texturemap'); demcmap(capeterrain)
Set the vertical exaggeration. Use
daspectm to specify
that elevations are in meters and should be multiplied by 20.
Make sure that the line data is visible. To ensure that it is not obscured by
zdatam to set it to the highest elevation of
cape1 terrain data.
Specify a location for a light source with the
function. (If you omit arguments, a GUI for setting positional properties for
the new light opens.)

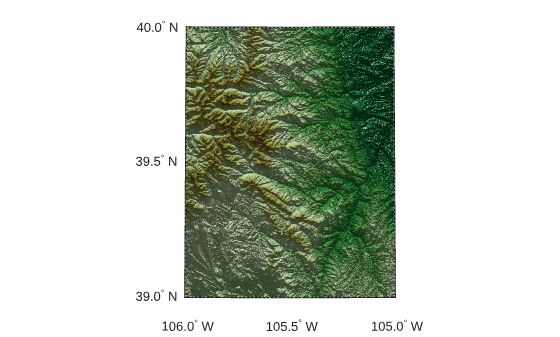

The lighting computations caused the map to become quite dark with specular highlights. Now restore its luminance by specifying three surface reflectivity properties in the range of 0 to 1.
ambient = 0.7; diffuse = 1; specular = 0.6; material([ambient diffuse specular])

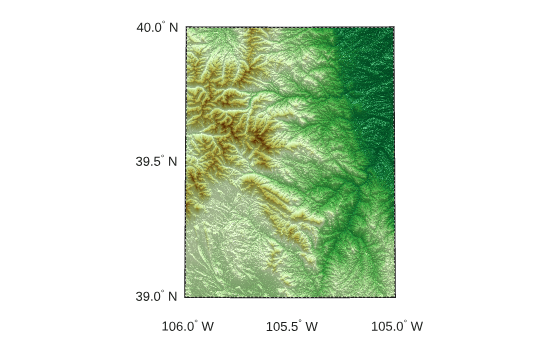

The surface looks blotchy because there is no interpolation of the lighting component (flat facets are being modeled). Correct this by specifying Gouraud shading
To compare the lit map with the unlit version, toggle the lighting off.
