Convert geolocated data array to regular data grid


[Z, refvec] = geoloc2grid(lat, lon, A, cellsize)


[Z, refvec] = geoloc2grid(lat, lon, A, cellsize) converts the geolocated data array A, given geolocation points in lat and lon, to produce a regular data grid, Z, and the corresponding three-element referencing vector refvec. cellsize is a scalar that specifies the width and height of data cells in the regular data grid, using the same angular units as lat and lon. Data cells in Z falling outside the area covered by A are set to NaN.


% Load the geolocated data array 'map1'
% and grid it to 1/2-degree cells.
load mapmtx
cellsize = 0.5;
[Z, refvec] = geoloc2grid(lt1, lg1, map1, cellsize);
% Create a figure
f = figure;
[cmap,clim] = demcmap(map1);
% Define map limits
latlim = [-35 70];
lonlim = [0 100];

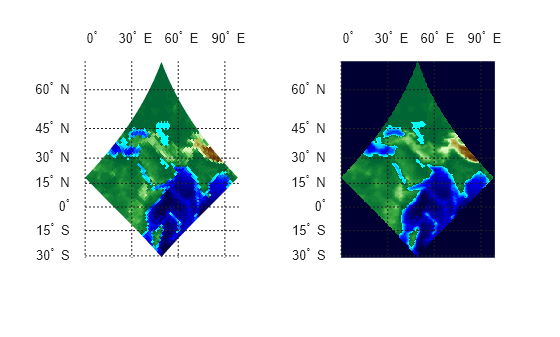

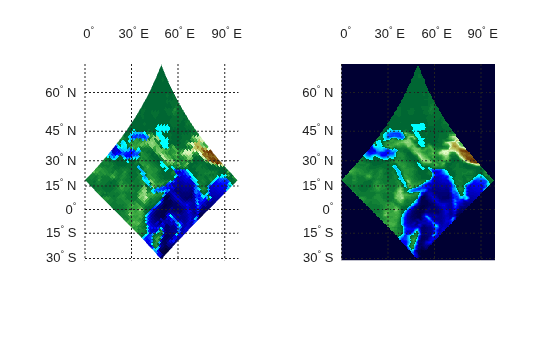

% Display 'map1' as a geolocated data array in subplot 1
ax = axesm('mercator','MapLatLimit',latlim,...
geoshow(lt1, lg1, map1, 'DisplayType', 'texturemap');
% Display 'Z' as a regular data grid in subplot 2
ax = axesm('mercator','MapLatLimit',latlim,...
geoshow(Z, refvec, 'DisplayType', 'texturemap');


geoloc2grid provides an easy-to-use alternative to gridding geolocated data arrays with imbedm. There is no need to preallocate the output map; there are no data gaps in the output (even if cellsize is chosen to be very small), and the output map is smoother.

Introduced before R2006a
