Property Inspector

Open property inspector


The Property Inspector enables you to interactively modify objects, such as graphics objects. When you select an object, the Property Inspector shows a list of object properties. You can change property values by editing the fields that appear next to each property name.

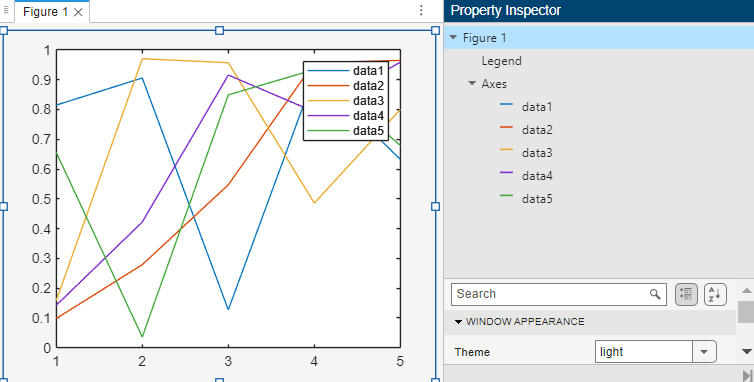

Property Inspector window

Open the Property Inspector

  • Figure toolbar: Click the Property Inspector icon .

  • MATLAB® command prompt: Enter inspect.


expand all

Use the Property Inspector to change the transparency of a surface plot and to change the font size of the axes text.

Create a surface plot. Open the Property Inspector by entering inspect at the command prompt. Then click the surface. The Property Inspector shows surface properties.


Side-by-side windows. A surface plot is on the left and the Property Inspector is on the right.

Change the FaceAlpha value from 1 to 0.5. The surface plot updates so that it is semi-transparent. Then view axes properties by clicking the axes. Change the FontSize value to 14 and change the FontWeight value to bold.

Updated surface plot

Programmatic Use

expand all

inspect opens the Property Inspector for the current figure, if one exists. To view properties for a specific object, select the object. If no figures exist, then this command opens an empty Property Inspector.

inspect(obj) displays the properties for the specified object. You can specify obj as a single object or as a vector containing multiple objects, such as [obj1 obj2]. If you specify multiple objects, then the Property Inspector displays the properties that the objects have in common.

inspect -close closes the Property Inspector.

Version History

Introduced before R2006a
