Compute optimal control using explicit MPC
Use this command to simulate an explicit MPC controller in closed-loop with a
plant model. Call
mpcmoveExplicit repeatedly in a for loop to calculate
the manipulated variable and update the controller states at each time step.
returns the optimal move
mv = mpcmoveExplicit(
mv and updates the states
xc of the controller
The manipulated variable
mv at the current time is calculated given:
the controller object,
a pointer to the current estimated extended state,
the measured plant outputs,
the output references,
and the measured disturbance input,
, or if it is missing as a last input argument,
mpcmove uses the appropriate
When using default state estimation,
mpcmoveExplicit also updates
the controller state referenced by the handle object
when using default state estimation,
xc always points to the updated
controller state. When using custom state estimation, you should update
xc prior to each
Simulate explicit MPC using
This example shows how to use
mpcmoveExplicit to simulate a plant in closed loop with an explicit MPC controller.
First, define the sample time, the plant (for this example, a double integrator), and create a traditional MPC object.
Ts = 0.1; plant = tf(1,[1 0 0]); mpcobj = mpc(plant,0.1);
-->"PredictionHorizon" is empty. Assuming default 10. -->"ControlHorizon" is empty. Assuming default 2. -->"Weights.ManipulatedVariables" is empty. Assuming default 0.00000. -->"Weights.ManipulatedVariablesRate" is empty. Assuming default 0.10000. -->"Weights.OutputVariables" is empty. Assuming default 1.00000.
Define constraints on the manipulated variable.
mpcobj.MV = struct('Min',-1,'Max',1);
The MPC controller states include states from the plant model, the disturbance model noise model, and the last values of the manipulated variables, in that order. To create a range structure where you can specify the range for each state, reference, and manipulated variable, use
range = generateExplicitRange(mpcobj);
-->Converting the "Model.Plant" property to state-space. -->Converting model to discrete time. Assuming no disturbance added to measured output #1. -->"Model.Noise" is empty. Assuming white noise on each measured output.
If at run time any of these variables falls outside its range, the controller returns an error status and sets the manipulated variables to their last values. Therefore, it is important that you do not underestimate these ranges. For this example, use the following ranges.
range.State.Min(:) = [-10;-10]; range.State.Max(:) = [10;10]; range.Reference.Min = -2; range.Reference.Max = 2; range.ManipulatedVariable.Min = mpcobj.MV.Min -1; range.ManipulatedVariable.Max = mpcobj.MV.Max +1;
Create an explicit MPC controller from the traditional MPC object and the range structure.
empcobj = generateExplicitMPC(mpcobj, range);
Regions found / unexplored: 9/ 0
Set up the number of simulation steps and initialize arrays to store the plant input and output signals (so they can be plotted later).
N = round(5/Ts); U = zeros(N,1); Y = zeros(N,1);
Discretize the plant, and set up its initial condition.
dtplant = ss(c2d(plant,Ts)); x = [0 0]';
To obtain an handle (that is a pointer) to the controller state, use
xc = mpcstate(empcobj)
MPCSTATE object with fields Plant: [0 0] Disturbance: [1x0 double] Noise: [1x0 double] LastMove: 0 Covariance: [2x2 double]
The controller has two states for the internal plant model, and one to hold the last value of the manipulated variable. All these states are initialized to zero.
Iteratively simulate the closed-loop response to a reference signal of
0.8. To calculate the explicit MPC controller move, use
for k = 1:N % update plant measurement and store signal y = dtplant.C*x; Y(k)=y; % compute explicit MPC action and store signal u = mpcmoveExplicit(empcobj,xc,y,0.8); U(k)=u; % update plant state x = dtplant.A*x + dtplant.B*u; end

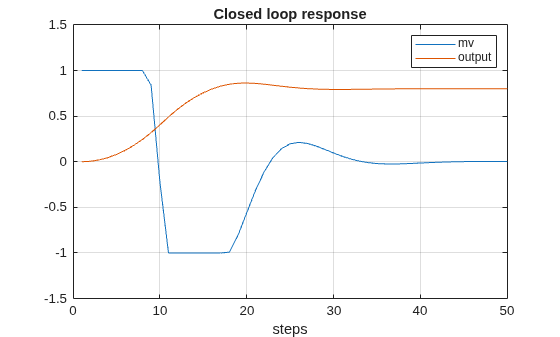

Plot the resulting plant input and output signals.
plot(1:N,[U Y]) title('Closed loop response') legend('mv','output') xlabel('steps') grid
empcobj — Explicit MPC controller
explicit MPC controller object
Explicit MPC controller to simulate, specified as an Explicit MPC controller object.
generateExplicitMPC to create an explicit
x — Current MPC controller state
Current MPC controller state, specified as an
Before you begin a simulation with
mpcmoveExplicit, initialize the
controller state using
x = mpcstate(empcobj). Then, modify the
default properties of
x as appropriate.
If you are using default state estimation,
updates the state values in the previous control interval with that
information. Therefore, you should not programmatically update
all. The default state estimator employs a linear time-varying Kalman
If you are using custom state estimation,
x[n|n]. Therefore, prior to each
you must set
x.Noise to the best estimates of these states
(using the latest measurements) at the current control interval.
ym — Current measured outputs
Current measured outputs, specified as a row vector of length
Nym is the number of measured outputs. If
you are using custom state estimation,
ym is ignored. If you set
mpcmoveExplicit uses the appropriate nominal value.
r — Plant output reference values
Plant output reference values, specified as a vector of length
uses a constant reference for the entire prediction horizon. In contrast to
mpcmoveExplicit does not support reference previewing.
If you set
the appropriate nominal value.
v — Current and anticipated measured disturbances
Current and anticipated measured disturbances, specified as a vector of length
Nmd is the number of measured
disturbances. In contrast to
mpcmoveExplicit does not
support disturbance previewing. If your plant model does not include measured
MVused — Manipulated variable values from previous interval
Manipulated variable values applied to the plant during the previous control interval,
specified as a vector of length Nmv, where
Nmv is the number of manipulated
variables. If this is the first
mpcmoveExplicit command in a
simulation sequence, omit this argument. Otherwise, if the MVs calculated by
mpcmoveExplicit in the previous interval were overridden, set
MVused to the correct values in order to improve the controller
state estimation accuracy. If you omit
info — Explicit MPC solution status
Explicit MPC solution status, returned as a structure having the following fields.
ExitCode — Solution status code
1 | 0 | –1
Solution status code, returned as one of the following values:
1 — Successful solution.
0 — Failure. One or more controller input parameters is out of range.
–1 — Undefined. Parameters are in range but an extrapolation must be used.
Region — Region to which current controller input parameters belong
positive integer | 0
Region to which current controller input parameters belong,
returned as either a positive integer or 0. The integer value is the
index of the polyhedron (region) to which the current controller input
parameters belong. If the solution failed,
Use the Explicit MPC Controller Simulink block for simulation and code generation.
Introduced in R2014b
