Import Cadence® Database to Mixed-Signal Analyzer

You can directly import the Cadence® database in the Mixed-Signal Analyzer app without explicitly creating the .mat file.

To export the data, launch MATLAB® from Cadence ADE by clicking the M button in the toolbar.

The MATLAB session that opens should have adeInfo in the base workspace.

Launch the Mixed-Signal Analyzer app.

Select Import > AdeInfo database … from the app toolbar.

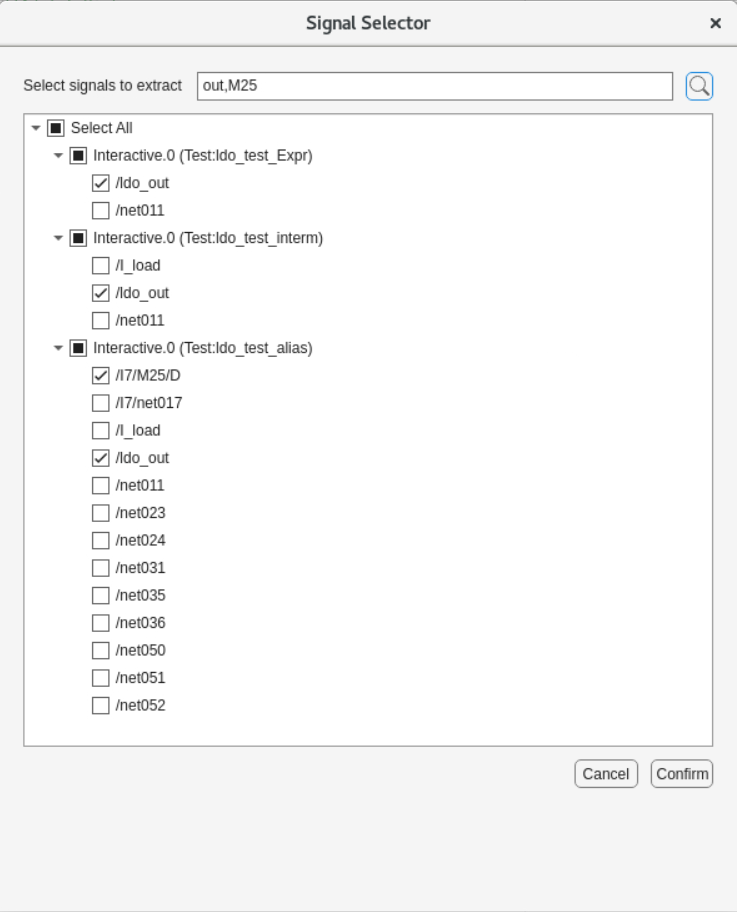

In the newly opened dialog box, select the interactive runs you want to import to the app. By default, the app imports only the metrics data for better performance. You can deselect the Metrics Only option to import all simulation data including waveforms.
